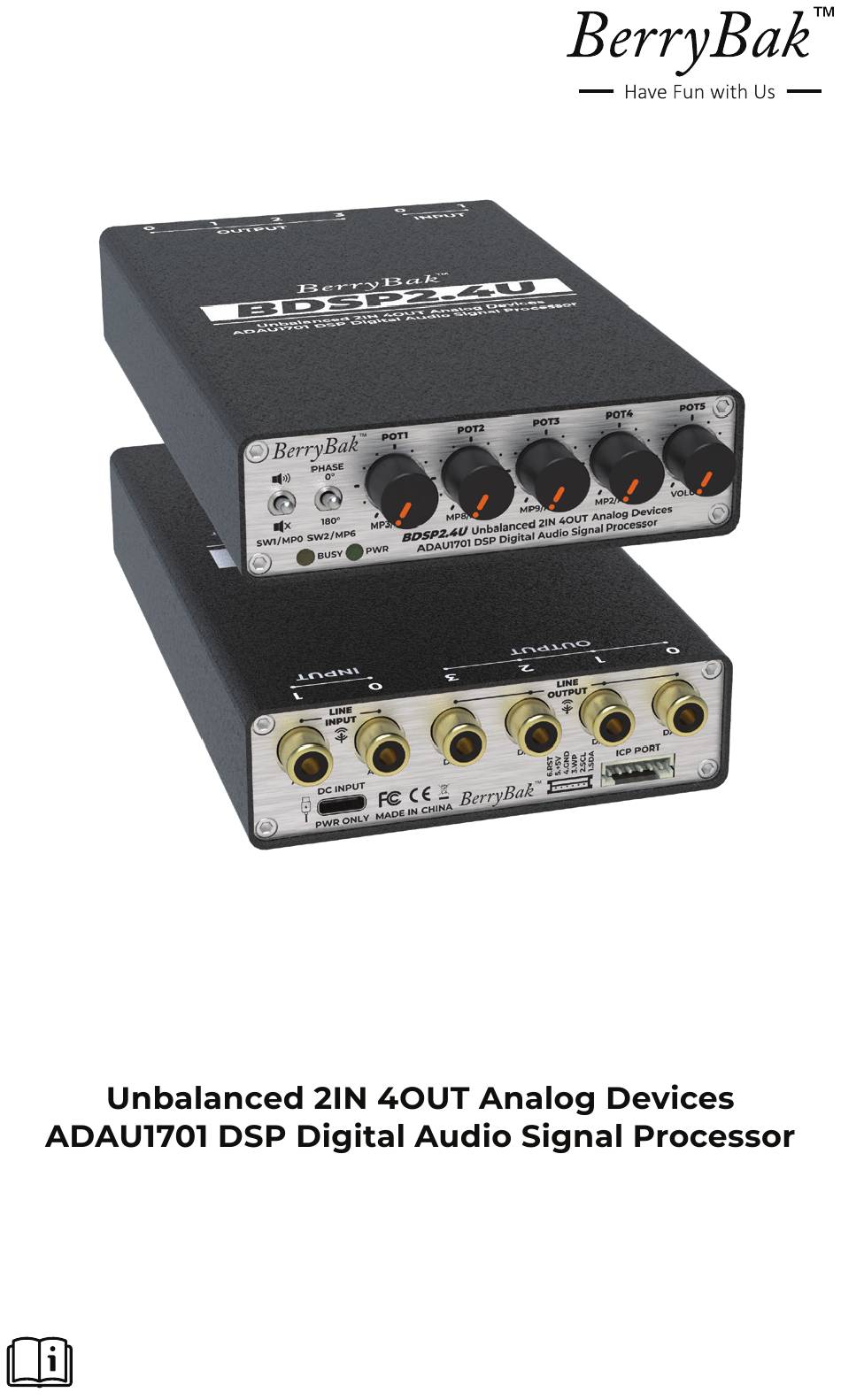

- Page 1 BDSP.4U Quick Reference Guide...
-
Page 2: Packaging Content
Packaging Content The following items should be placed in the box according to the model you purchased. lf there is any missing, please inform the seller or manufacturer as soon as possible. Description Quantity BDSP2.4U Unit 1 unit Quick Reference Guide 1 pc Foot Pad 4 pcs... -
Page 3: Product Specifications
Introduction The Berrybak BDSP2.4U is a digital signal processor (DSP) , powered by an Analog Devices ADAU1701 chip. It operates within a voltage range of 4.5V to 5.5V and integrates built-in 24-bit resolution ADC and DAC with a high dynamic range of up to 101.3 dB. -
Page 4: Panel Layouts
Panel Layouts Front panel Mute Phase LPF Filter for Relative Gain Control Control DAC0 & DAC1 Control Busy Power HPF Filter for HPF Filter for Volume DAC2 & DAC3 DAC0 & DAC1 Control Panel Layouts Rear panel Audio Input Audio Output Power Supply Programming Port (5V,1A) -
Page 5: Mechanical Drawing
Mechanical Drawing (Nominal Dimensions, inch (mm)) 3.575" (90.8) Note: The mechanical drawing above is not to scale 1:1. Please refer to the specified dimensions for accurate measurements. Quick Reference Guide BDSP2.4U-04... - Page 6 Mechanical Drawing (Nominal Dimensions, inch (mm)) Front View Rear View 3.575" (90.8) Side View 5.67" (144.0) Note: The mechanical drawing above is not to scale 1:1. Please refer to the specified dimensions for accurate measurements. Quick Reference Guide BDSP2.4U-05...
-
Page 7: Connection Diagram
Connection Diagram Cable Integration Overview The rear panel features RCA connectors for both audio input and output. To connect your audio source, such as an MP3 player or phone, use RCA cables to link the device's audio output to the left and right input jacks on the panel. - Page 8 ICP5 through the ICP port on the rear panel. You can customize the port functionality according to your requirements. Berrybak provides comprehensive support for users with the BDSP2.4U, including an open-sourced demo program, a HEX file for restoring factory settings, a programming guide, and video tutorials. Scan the QR codes to get more details.
-
Page 9: Troubleshooting Guide
Troubleshooting Guide Each section addresses specific issues related to software installation challenges, connectivity issues, or operational inconsistencies. For any issues not covered here, we encourage you to reach out to customer support for further assistance. WARNING 1. Always follow the recommended setup and connection steps precisely. - Page 10 Problem How to Solve 3. Amplifier no output • Verify that the amplifier is sound powered at the correct voltage. • Check that the signal input/out- put interface connections are correct. • Ensure that the amplifier is functioning properly. • Confirm that the amplifier volume is not set to mute.
- Page 11 Designed by: 58-7-2 Wisma Fortune Height, Jalan Cantonment, 10250 Georgetown, Penang, Malaysia. +60 17 344 0643 l info@berrybak.com (Please use phone calls or email instead of WhatsApp or iMessage.) To view our products and purchase, please check the Taobao or Aliexpress website by searching for the product name (example: BDSP2.4U).
- Page 12 Thank you for choosing this BerryBak™ amplifier for your music application. BerryBak amplifiers are known worldwide for their great sound, useful features, and affordable price, proving that clean, convenient, hi-fi amplifiers affordable.
