This document includes important preliminary instructions for the use of the device. The
technical operations must be carried out by authorized personnel. The operations
performed by unauthorized personnel can be a source of danger to the user.
1
UNPACKING............................................................................................................................................... 1
2
BOILER FILLING.......................................................................................................................................... 2
3
ACTIVATION OF THE BOILER THERMOSTAT .............................................................................................. 3
4
OPENING THE DOOR INTRUCTIONS – EMERGENCY PROCEDURE ............................................................ 4

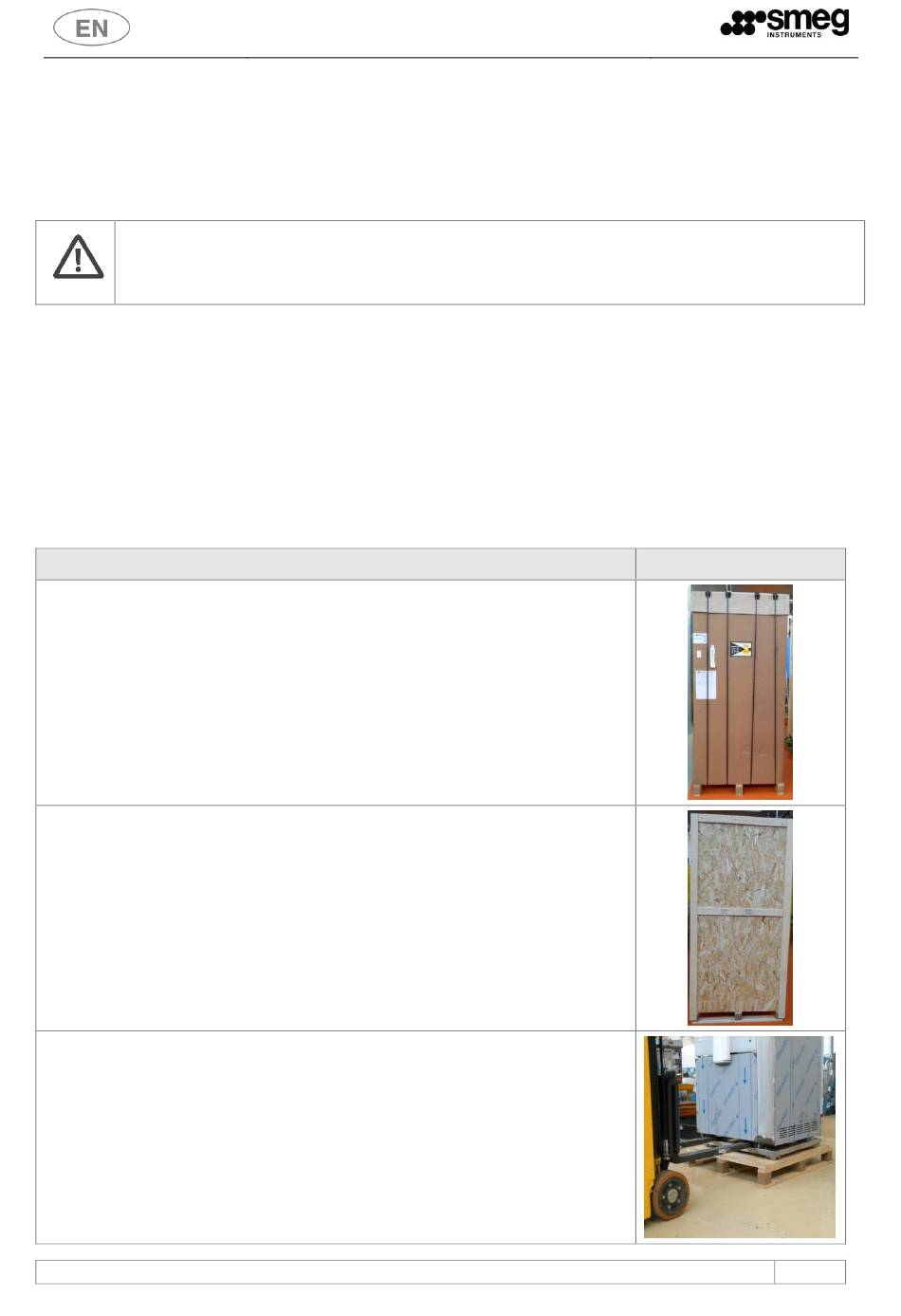

1 UNPACKING
DESCRIPTION
The standard product is wrapped with cardboard and fastened on a wooden
pallet through straps.
1. Cut the straps.
2. Remove the cardboard cover.
3. Extract the cardboard upward.
4. There are 4 metal brackets securing the product, fastened to the
wooden pallet. Both screws and brackets must be removed in order
to extract the machine.
In some particular cases the product is packaged in a wooden box.
Dimensions (WxDxH) = 105x106x221 cm.
Packaged product weight: 390kg.
Unfasten the securing screws in order to remove the wooden panels (no. 4
side panels + top).
A forklift truck is needed to take the machine off the wooden pallet.
19510096100
Fogl.OPERAZ.PRELIM.6090
WD6090 – GW6090
READ BEFORE STARTING THE DEVICE
1
