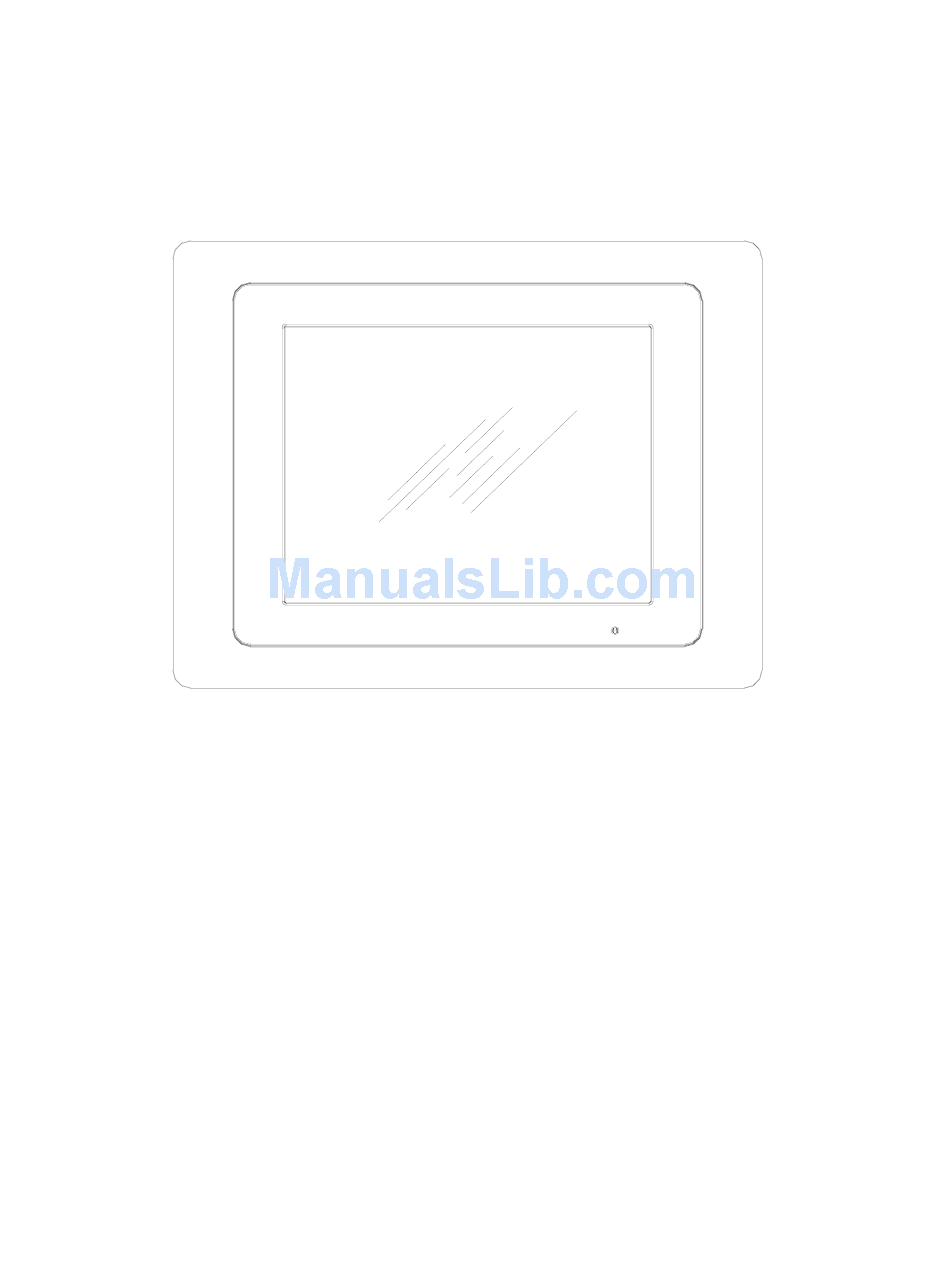

Page 1: Digital Photo Frame
Digital Photo Frame PU-8C User Manual Version 1.0J... - Page 2 Preface About this manual This manual describes how to get the most out of your new Digital Photo Frame. You should read through this manual before using the Digital Photo Frame to familiarize yourself with the various features and functions. While we strive for complete product accuracy, sometimes changes are made after printing of our manual.
-
Page 3: Table Of Contents
Table of Contents Safety Instruction …………….………………………………………………..…… Package Contents ………………………………………………………….6 Introduction………………………………………………………………...7 About the Digital Photo Frame……………………………………………7 1.Getting Started…………………………………………………………...9 1.1 Using the stand……………………………………………………………………...9 1.2 Mounting the Frame on the Wall…………………………………………………...9 1.3 Connecting the Power …………………………………………………………….10 1.4 Connecting to a TV……...…………………………………………………...…..10 1.5 Connecting to a Earphone…………………………………………………………11 1.6 Connecting to a Amplifier………………………………………………………...11 1.7 Inserting &... - Page 4 2.4.6.4 OSD Language…………………………………………………………….22 2.4.6.5 OSD Message……………………………………………………………...22 2.4.6.6 Set Up Values……………………………………………………………..22 2.4.7 Mode Not Supported ………………………………………………………... 23 2.5 File Explorer……..………………………………………………………..……...23 2.5.1 Copy………………………………………………………………………..23 2.5.2 Delete………………………………………………………………………..24 2.5.3 Rename…….………………………………………………………………..24 2.5.4 New Folder.……….………………………………………………………...24 2.5.5 Properties……………………………………………………………………25 3.Troubleshooting……………………………………………………………………..26 4.Specifications………………………………………………………….………………27...
-
Page 5: Safety Instruction
Safety Instructions... -
Page 6: Package Contents
Package Contents Player Printed User Manual Remote Control Adaptor AV cable... -
Page 7: Introduction
Introduction This Digital Photo Frame features : ·8” TFT LCD screen for displaying images from a flash memory card. ·Support for JPEG images up to 12 Megapixels. ·Image display functions such as slideshow and image rotation. ·Support for CF, SD, MMC and MS, XD, MS Pro flash memory cards. ·Support for MPEG4 for playing back film clips. - Page 8 2.Enter Used to confirm a setting or function 3.Forward Used to navigate forwards. 4.Up Used to navigate upwards. 5.Down Used to navigate downwards. 6.Backward Used to navigate backwards. 7.CF Card Slot Slot for CF card. 8.5 in 1 Card Slot Slot for SD/MMC/XD/MS/SM 9.DC in Socket Power Connection to the adaptor.
-
Page 9: Getting Started
1.GETTING STARTED 1.1 Using the Stand The Digital Photo Frame can be placed in a landscape or portrait position on a desk or any other flat surface by removing the screw on the stand of the Digital Photo Frame. Remove the screw 1.2 Mounting the Frame on the Wall Digital Photo Frame can also be mounted on the wall on landscape or portrait position by place the hanging holes “A”... -
Page 10: Connecting The Power
1.3 Connecting the Power Connect the included power supply to your AC outlet and plug in the other end of the AC adaptor to the DC-IN jack of Digital Photo Frame. TO TURN OFF THE POWER: Press the POWER button for 3 seconds to turn off the power. 1.4 Connecting to a TV Connect the Digital Photo Frame to view pictures and video. -
Page 11: Connecting To A Earphone
1.5 Connecting the Earphone To connect the earphone, insert the earphone’s plug into the Digital Photo Frame’s AV OUT socket. 1.6 Connecting to an Amplifier Connecting the Digital Photo Frame to an Amplifier 1. Insert the AV cable(white and red) audio plugs into the amplifier corresponding AV IN sockets. -
Page 12: Inserting & Removing The Flash Memory Cards
1.7 Inserting & Removing the Flash Memory Cards Inserting a CF Card 1. Position the CF card so that the pin-hole connections are facing the bottom flash memory card slot. Place the card label-side up. 2. Slide the card gently into the slot until it touches the bottom. Inserting Other Types of Cards (SD/MMC/XD/MS/MS ) 1. -
Page 13: Replacing Remote Control Battery
1.8 Replacing Remote Control Battery Step 1- Remove the battery compartment by pulling the cover in the direction of the arrow. Step 2- Remove the battery Step 3 -Insert the replacement battery must follow the correct polarity(+/-). -
Page 14: Menu
2.MENU 2.1 Photo On the main menu, use the►/◄ buttons to choose “Photo” and press “ENTER” button to enter “Photo” mode. You can view photos as thumbnails in matrix images which can be set in Digest Style mode. Use ►/◄ & ▲/▼ buttons to select a photo. Press “ENTER”... -
Page 15: Audio
Movie folders will be displayed. Choose the movie folder to be displayed and press “ENTER”. 2.3 Audio On the main menu, use the►/◄ buttons to choose “Audio” and press “ENTER” button to enter “Audio” mode. Press “File Detail” button on remote control to enter Music Library.. -
Page 16: Setting
2.4 SETTING On the main menu, use the ►/◄ button to choose “Setting” and press “ENTER” button to enter “Setting” menu.. 2.4.1 PHOTO SETUP In SETUP menu, use ▲/▼ buttons to select “PHOTO SETUP”. Use “ENTER” button to enter “PHOTO SETUP” submenu. -
Page 17: Digest Style
2.4.1.4 DIGEST STYLE You can set the DIGEST STYLE in “2X2 MATRIS”, “3X3 MATRIX”, “4X4 MATRIX” & “5X5 MATRIX” mode. Press ► button and then use▲/▼ buttons to select Matrix size desired. Press “ENTER” button to enter. To exit the PHOTO SETUP menu, choose “MAIN PAGE”... -
Page 18: Movie Setup
2.4.3 MOVIE SETUP In MOVIE SETUP menu, use ▲/▼ buttons to select “MOVIE SETUP”. Use “ENTER” button to enter “MOVIE SETUP” submenu. 2.4.3.1 REPEAT MODE You can set the REPEAT mode in “ONE”, “OFF” or “ALL” . Press ► button and then use ▲/▼ buttons to select “ONE”, “OFF”... -
Page 19: Slideshow Set Up
2.4.4.1 SLIDESHOW MODE You can set the SLIDESHOW MODE in “MANUAL” or “AUTO” mode. Press ► button and then use ▲/▼ buttons to select “MANUAL” or “AUTO” setting mode. Press “ENTER” button to enter. 2.4.4.2 FOLDER REPEAT You can set the FOLDER REPEAT in “ON” or “OFF”... -
Page 20: Lcd Setup
To exit the SLIDESHOW SETUP menu, choose “MAIN PAGE” mode & press “ENTER” button. 2.4.5 LCD SETUP In LCD SETUP menu, use ▲/▼ buttons to select “LCD SETUP”. Use “ENTER” button to enter “LCD SETUP” submenu. LCD SETUP enables you to configure setting such as brightness, contrast, saturation, hue &... -
Page 21: Setup Values
2.4.5.4 SETUP VALUES You can set the SETUP VALUES mode in DEFAULT . Press ► button and then “ENTER” button to enter. To exit the LCD SETUP menu, choose “MAIN PAGE” mode & press “ENTER” button. 2.4.6 PREFERENCES In SETUP menu, use ▲/▼ buttons to select “PREFERENCES”. -
Page 22: Video Output
2.4.6.3 VIDEO OUTPUT You can set the VIDEO OUTPUT in “S- VIDEO”, “COMPONENT”, “P-SCAN YPBPR”, “VGA” or “INTERLACE RGB” modes. Press ► button and then use ▲/▼ buttons to select the modes desired. Press “ENTER” button to enter. 2.4.6.4 OSD LANGUAGE You can set the OSD LANGUAGE in “ENGLISH”... -
Page 23: Mode Not Supported
2.4.7 MODE NOT SUPPORTED If the “Mode Not Supported’ screen is displayed, press the “TV/LCD” button on the remote control. 2.5 File Explorer On the main menu, use the ►/◄ button to choose “File Exp” and press “ENTER” button to enter “File Library”. -
Page 24: Delete
2.5.2 DELETE In File Library menu, use ► button to enter submenu. Use ▲/▼ buttons to select the DELETE mode. In Delete mode, you can delete the files from internal memory or external memory. Use ▲/▼ buttons to select the file and press “ENTER”... -
Page 25: Properties
In NEW FOLDER mode, you can rename the NEW FOLDER name by using virtual keyboard . Use the ►/◄ & ▲/▼ buttons to rename the file name. Press “OK” button to confirm the new file name. 2.5.5 PROPERTIES In File Library menu, use ► button to enter submenu. -
Page 26: Troubleshooting
3.TROUBLESHOOTING Problem Possible Causes What to do No display on No power supply Check the connection of AC adaptor LCD screen. and the unit. LCD Brightness at min level. LCD Brightness might be at min level, toggle brightness up switch. LCD connector or LCD gone Contact Authorized Customer Care No picture on TV... -
Page 27: Specifications
4.SPECIFICATIONS Display 8 inch color TFT LCD Panel Photo Viewer JPEG (Up 12M pixels resolution) View Photo MPEG4 Resolution up to 720X480 pixels at 30fps. MPEG4 file format compatible with DVD (640X480 in NTSC) and digital-TV. Display Area 162.2 x 121.7 mm External Memory slot CF card slot &...
