ULTRAHD
G7 4K
ON CAMERA Monitor
Quick Guide

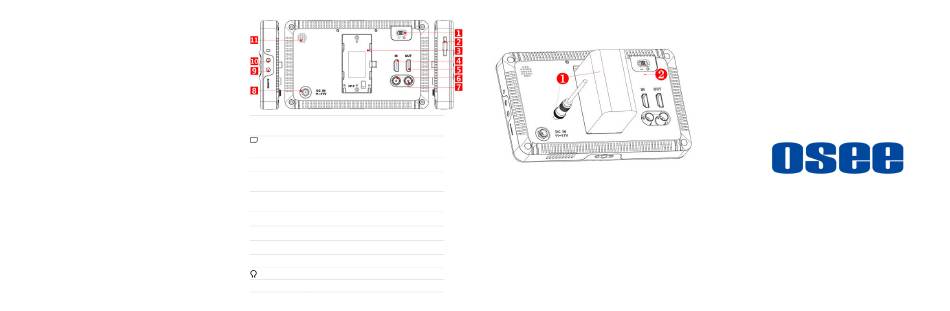

INTERFACES AND BUTTONS
Switch to"|"position to power on; and switch to ""
Power Switch
position to power off
SD card slot, use SD card is to load customized LUT
tables and update firmware.
Battery Input
External battery NP-F, 6V～8.4V
HDMI IN
HDMI input interface, supports HDCP, compatible
DVI1.0, HDMI Type-A
HDMI OUT
HDMI output interface, supports HDCP, compatible
DVI1.0, HDMI Type-A , supports loop out
SDI IN
SDI input interface, BNC
SDI OUT
SDI output interface, BNC, supports loop out
DC IN
DC power input, 11～17VDC
Remote control, 2.5mm Jack
Remote
Headphone output jack, 3.5mm stereo Jack
Internal fan
Fan
* Support SONY NP-F battery currently.
1
POWER ON
❶
Install a battery or connect the power cord.
❷
Switch the power switch to "|" position, and the device is powered on.
* The monitor will display a boot screen after being powered on for 3~4
seconds.
* Only use the adapter and power cord specified by manufacture for your
safety!
* Select the right input type(HDMI or SDI) in monitor settings menu (scroll the
joystick left and hold for 3 seconds to enter) or the signal won't get
displayed!
