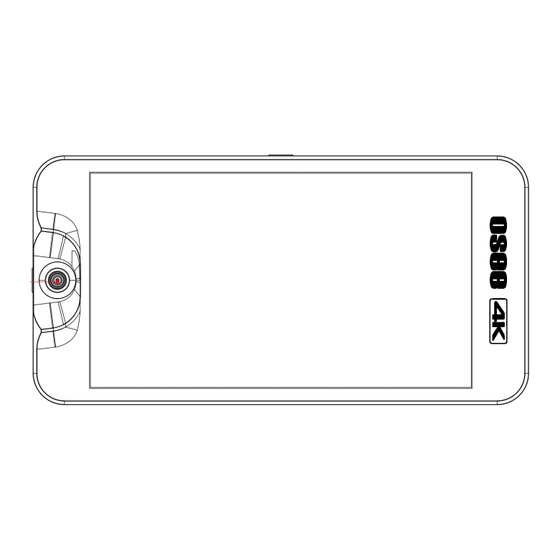

OSEE T5 Quick Manual

4k ultrahd on camera monitor
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

T5 4K ULTRAHD
ON CAMERA Monitor
Quick Guide

Advertisement

Table of Contents
loading

Related Manuals for OSEE T5

Summary of Contents for OSEE T5

  • Page 1 T5 4K ULTRAHD ON CAMERA Monitor Quick Guide...

  • Page 2: Interfaces And Buttons

    INTERFACES AND BUTTONS Switch to“|”position to power on; and switch to “” Power Switch position to power off DC IN DC power input, 5～17VDC，Micro USB Battery Input External battery NP-F/LP-E6, 6V～8.4V BATT OUT Battery output HDMI IN HDMI input interface, supports HDCP, compatible DVI1.0, HDMI Type-A Remote control, headphone output, 2.5mm Stereo Remote...
  • Page 3 POWER ON Install the battery or connect the power cord. ❶ Switch the power switch to “一”position, the device is powered on, ❷ and the control buttons on the front panel are lit up in highlight white. * It will display the boot screen after power on for 3~4 seconds. * The BATT OUT interface could offer a power output when amounting battery in the device.

  • Page 4: Buttons Operation

    BUTTONS OPERATION  Joystick Joystick provides five operation directions, Up Down, Left, Right, and Straight Down. Use the joystick as a navigation tool to scroll between scenes pages and set features. : scroll it leftmost to enter into the monitor settings menu : scroll it right to enter into a scene or create a scene mode : scroll it up to enter into ZOOM mode : cancel the settings, return to the previous menu or quit menu settings.

  • Page 5: Scene Mode

    SCENE MODE  Enter a Scene It will display a scene as default after powered on. Scroll the joystick right or left to switch among scenes. Scroll the joystick down to return a scene when in ZOOM mode. Scroll the joystick right to return a scenewhen in monitor settings menu. ...

  • Page 6: Image Zoom

     Enable/Disable a Tool In a scene, press straight down the joystick to display the scene tool, and then scroll the joystick left to close the scene tool in current scene. IMAGE ZOOM Scroll up the joystick to enter into image zoom mode, double(2X) or quadruple(4X) the image, and move the starting position of the enlarged image.

  • Page 7: Rotate Screen

    Adjusting Mode ❷ Press straight down the joystick to move the starting position of the enlarged image. Then, the icon is changed, there will be four arrows at each direction surrounding the center rectangle. Press straight down the joystick to confirm the adjustment. * In 2X or 4X zoom mode, press straight down the joystick, it will recover and display the original image.
