Summary of Contents for LG MS1949G

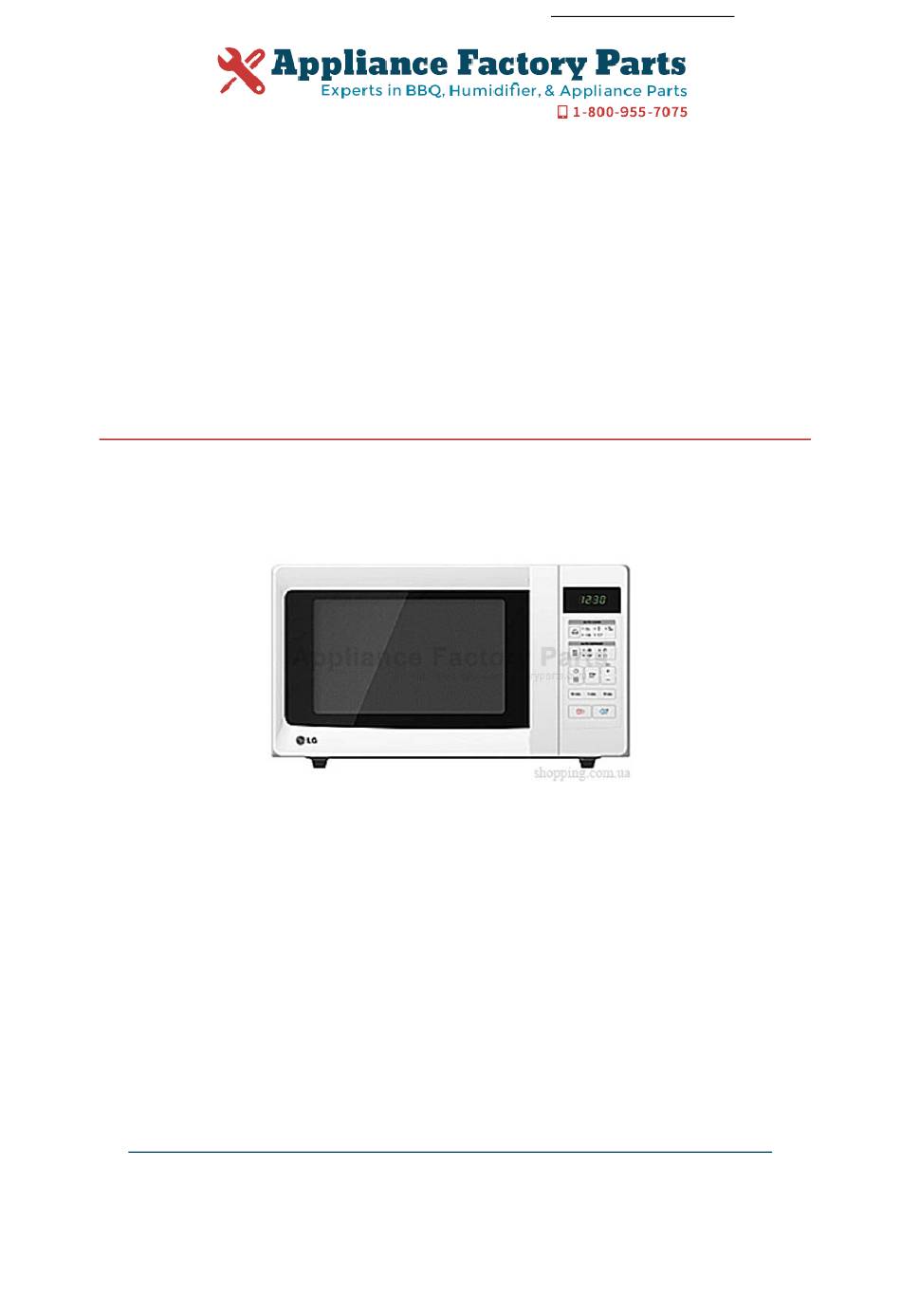

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. LG MS2349H Owner's Manual Shop genuine replacement parts for LG MS2349H Find Your LG Microwave Parts - Select From 1017 Models -------- Manual continues below part list --------...
  • Page 2 Available Replacement Parts for LG MS2349H 6549w1s011b Ac Synchronous Motor 1TTL0402418 Tapping Screw 1TTL0402818 Tapping Screw 5006W3A019A Base Plate Cap 4B72023B BUTON SPRING 0CZZW1H004S High Voltage Capacitor 1.10 UF 6930W1A003B Thermostat 3390W1A035A Microwave Glass Tray 4970WRA001D Spring 5889W2A009A Turntable Assembly...

  • Page 3: Microwave Oven

    MICROWAVE OVEN OWNER’S MANUAL PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING. MS1949G P/No:MFL62610651...

  • Page 5: Precautions

    Precautions Precautions to avoid possible exposure to excessive microwave energy. You cannot operate your oven with the door open due to the safety interlocks When heating liquids, e.g. soups, sauces and beverages in your microwave built into the door mechanism. These safety interlocks automatically switch off oven, overheating the liquid beyond boiling point can occur without evidence of bubbling.

  • Page 6: Table Of Contents

    Contents How the Microwave Oven Works Precautions Contents Microwaves are a form of energy similar to radio and television waves and Unpacking & Installing 4 ~ 5 ordinary daylight. Normally, microwaves spread outwards as they travel Setting the Clock through the atmosphere and disappear without effect. Microwave ovens, Child Lock however, have a magnetron which is designed to make use of the energy in Micro Power Cooking...

  • Page 7: Glass Tray

    Unpacking & By following the basic steps on these two pages you will be able to quickly check that your oven is operating correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your Installing oven make sure you remove all accessories and packing.
  • Page 8 Plug your oven into a standard household socket. Open your oven door by pushing the Release Button. Make sure your oven is the only appliance Place the ROTATING RING inside the oven and place connected to the socket. If your oven does not operate the GLASS TRAY on top.

  • Page 9: Setting The Clock

    Setting the You can set either 12 hour clock or 24 hour clock. Clock In the following example I will show you how to set the time for 14:35 when using the 24 clock. Make sure that you have removed all packaging from your oven. Make sure that you have correctly installed your oven as described earlier in this book.

  • Page 10: Child Lock

    Child Lock Press STOP/CLEAR. Your oven has a safety feature that Press and hold STOP until “L” appears on the display and BEEP sounds. The CHILD LOCK is now set. prevents accidental running of the oven. Once the child lock is set, you will be unable to use any functions and no The time will disappear on the display if you have set the clock.

  • Page 11: Micro Power Cooking

    Micro Power In the following example I will show you how to cook some food on 80% power for 5 minutes and 30 seconds. Cooking Make sure that you have correctly installed your oven as described earlier in this book. Press STOP/CLEAR.

  • Page 12: Micro Power Level

    Micro Power Your microwave oven is equipped with 5 power levels to give you maximum flexibility and control over cooking. Level The table below shows the examples of food and their recommended cooking power levels for use with this microwave oven. POWER LEVEL POWER LEVEL POWER OUTPUT...

  • Page 13: Two Stage Cooking

    Two stage In the following example I will show you how to cook some food in two stages. The first stages will cook your Cooking food for 11 minutes on HIGH; the second will cook for 35 minutes on 280. Press STOP/CLEAR.

  • Page 14: Quick Start

    Quick In the following example I will show you how to set 2 minutes of cooking on high power. Start Press STOP/CLEAR. Press START four times to select 2 minutes on HIGH power. The QUICK START feature allows you to Your oven will start before you have finished the fourth press.

  • Page 15: Auto Cook 12

    Auto In the following example I will show you how to cook 0.5 kg of jacket potato. Cook Press STOP/CLEAR. AUTO COOK allows you to cook most of Press AUTO COOK one time. your favorite food easily by selecting the “AC-1”...

  • Page 16: Frozen Vegetable

    CATEGORY WEIGHT LIMIT UTENSIL FOOD TEMP. INSTRUCTIONS Choose medium sized potatoes 170 -200g. 1. JACKET POTATO 0.1 kg ~ 1.0 kg Wash and dry potatoes. Pierce the potatoes several times with fork. Place the potatoes on the glass turntable. Adjust weight and press start.

  • Page 17: Auto Defrost 14

    The temperature and density of food varies, I would recommend that the food is checked before cooking Auto commences. Pay particular attention to large joints of meat and chicken, some foods should not be completely thawed before cooking. For example fish cooks so quickly that it is sometimes better to begin cooking while still slightly frozen.

  • Page 18: Auto Weight Defrost Guide

    AUTO WEIGHT DEFROST GUIDE * Food to be defrosted should be in a suitable microwave proof container and place uncovered on the glass turntable. * If necessary, shield small areas of meat or poultry with flat pieces of aluminum foil. This will prevent thin areas becoming warm during defrosting. Ensure the foil does not touch the oven walls.

  • Page 19: Quick Defrost 16

    Use this function to thaw only 0.5kg of Minced meat very quickly. Quick This will require a standing time to allow the center to thaw. In the following example will show you how to defrost 0.5kg of forzen minced meat. Defrost Press STOP/CLEAR.

  • Page 20: Quick Defrost Guide

    QUICK DEFROST GUIDE Use this function to defrost quickly for minced meat. Remove the meat completely from it’s wrapping. Place the mince onto a microwave-safe plate. When BEEP, at this point remove the mince from the microwave oven, turn the mince over and return to the microwave oven. Press start to continue. At the end of the program remove the mince from the microwave oven, cover with foil and allow to stand 5-15 minutes or until completely thawed.

  • Page 21: More Or Less Cooking

    More or Less In the following example I will show you how to change the preset of Auto Cook programme for a longer or Cooking shorter cooking time. Press STOP/CLEAR. Set the required Auto Cook programme. (Select weight of food) If you find that your food is over or undercooked when using the Auto Cook Press START.

  • Page 22: Heating Or Reheating Guide

    Heating or Reheating To heat or reheat successfully in the microwave, it is important to follow several guidelines. Measure the amount of food in order to determine the time needed to reheat. Arrange the food in a circular pattern for best results. Room temperature food will heat faster than refrigerated food.

  • Page 23: Fresh Vegetable Guide

    Fresh Vegetable Guide Cook time Standing Cook time Standing Vegetable Amount Instructions Vegetable Amount Instructions (at HIGH) Time (at HIGH) Time Artichokes 2 medium 1 /2 Trim. Add 2 tsp water and 2 tsp juice. 2~3 minutes Corn, Fresh 2 ears 4 ~ 8 Husk.

  • Page 24: Important Safety Instructions 21

    Important safety instructions WARNING Please ensure cooking times are correctly Read carefully and keep for future reference set as over cooking may result in FIRE and subsequent DAMAGE to the OVEN. 1 Do not attempt to tamper with, or make any adjustments or repairs to the 12 Before cooking, pierce the skin of potatoes, apples or any such fruit or door, control panel, safety interlock switches or any other part of the oven.
  • Page 25 Important safety instructions Read carefully and keep for future reference 37 This connection may be achieved by having the plug accessible or by 24 Only use utensils that are suitable for use in microwave ovens. incorporation a switch in the fixed wiring in accordance with the wiring 25 When heating food in plastic or paper containers, keep an eye on the rules.

  • Page 26: Microwave-Safe Utensils

    Microwave-safe Utensils Never use metal or metal trimmed utensils in your Paper microwave oven Paper plates and containers are convenient and safe to use in your microwave oven, Microwaves cannot penetrate metal. They will bounce off any metal object in the provided that the cooking time is short and foods to be cooked are low in fat and oven and cause arcing, an alarming phenomenon that resembles lightning.

  • Page 27: Food Characteristics & Microwave Cooking 24

    Food characteristics& Microwave cooking Moisture content of food Keeping an eye on things Since the heat generated from microwaves tends to evaporate moisture, relatively dry food The recipes in the book have been formulated with great care, but your success in such as roasts and some vegetables should either be sprinkled with water prior to cooking preparing them depends on how much attention you pay to the food as it cooks.
  • Page 28 Food characteristics & Microwave cooking Stirring To Clean Your Oven Stirring is one of the most important of all microwaving techniques. In conventional cooking, food is stirred for the purpose of blending. Microwaved food, however, is stirred in order to 1 Keep the inside of the oven clean spread and redistribute heat.

  • Page 29: Questions & Answers

    Questions & Answers Q What’s wrong when the oven light will not glow? Q Is it possible to pop corn in a microwave oven? A There may be several reasons why the oven light will not glow. A Yes, if using one of the two methods described Light bulb has blown below Door is not closed...

  • Page 30: Plug Wiring Information/Technical Specifications

    Plug wiring information/ Technical Specifications Warning Technical Specification This appliance must be earthed MS1949G The wires in this mains lead are colored in accordance with the following codes Power Input V AC / 50 Hz BLUE ~ Neutral Output 700 W (IEC60705 rating standard) BROWN ~ Live GREEN &...
