Summary of Contents for THOR T154CZSS/T

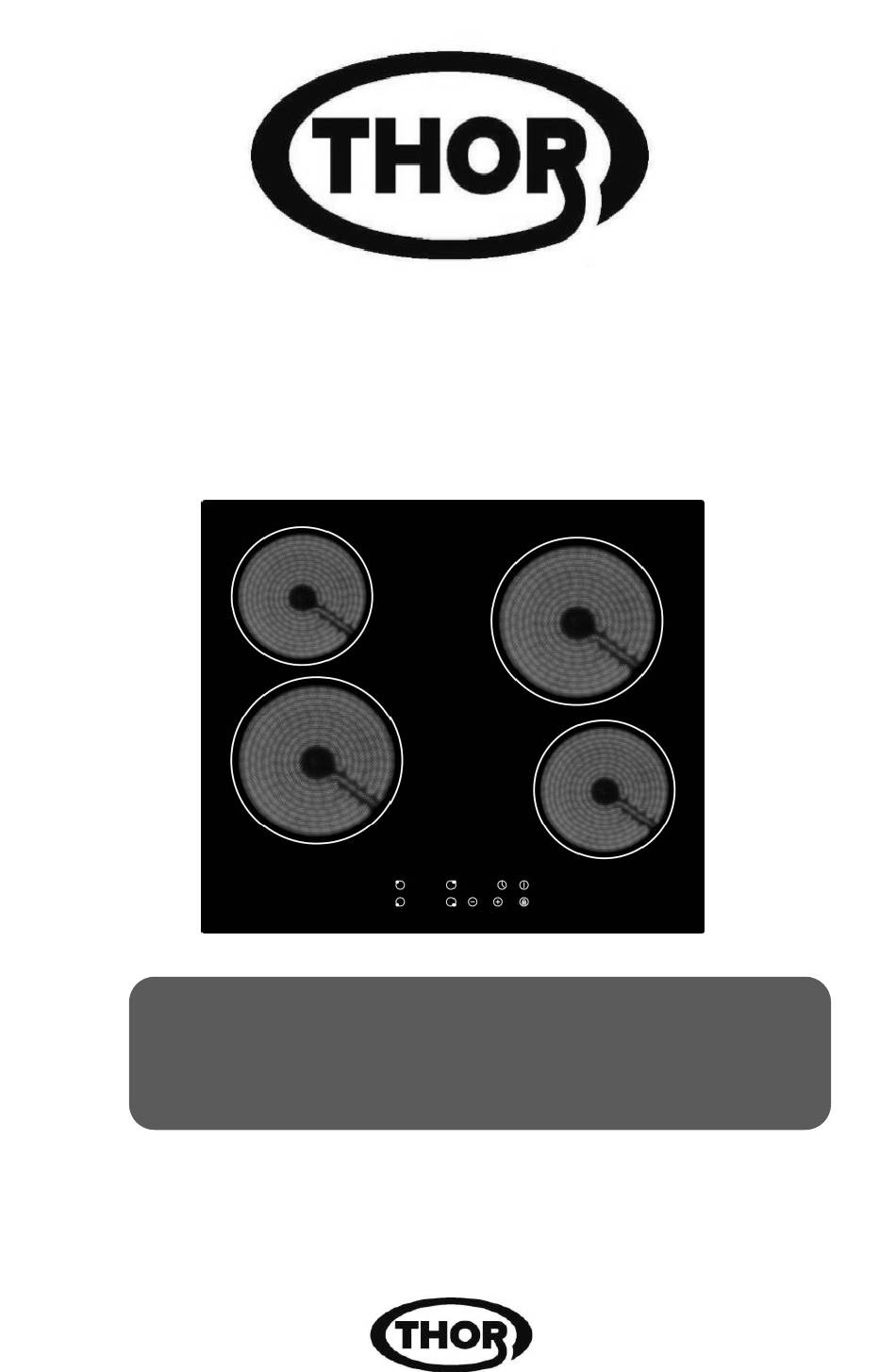

- Page 1 Ceramic Hob T154CZSS/T INSTRUCTIONS: Please read and keep safe for future use.
-
Page 2: Table Of Contents
Table of Contents Features …………………………………………………………………………………………………... 3 Safety Instructions..................4 Installation ....................5 Electrical Requirements ………………………………………………………….…………..…...8 Using your Hob ………………………………………………………………………………….…..….9 Cleaning and Care …………...……………………............13 Top Tips .......................14 Disposal/ Technical Specifications ………………………........15 Problem Solving .……..…………………………………………………………………………..16 Health & Safety ………………………………………………………….……….………………..18 Warranty Information..................20... -
Page 3: Features
Features Ceramic Top 1. 1800 W zone 2. 1200 W zone 3. 1800 W zone 4. 1200 W zone 5. Glass plate 6. Control plane Control Panel 1.Zone selection 2.Timer control 3.Time and Power selection 4. Child lock 5.ON/OFF control... -
Page 4: Safety Instructions
Safety Instructions The use of any electrical appliance requires the following common sense safety rules. There is danger of injury or death to the person and damage to the appliance. Note: If the following instructions are not adhered to the warranty will not be applicable ... -
Page 5: Installation
Position pans over the centre of the burners and turn handles to a safe position where they cannot be knocked or grabbed Make sure the control knobs are all in the off position when not in use If you do not intend to use your hob for a long period of time turn off ... - Page 6 For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole. The thickness of the work surface must be at least 30mm and must be heat-resistant Model L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) T154CZSS/T 50mini...
- Page 7 A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm The ceramic hob should be placed horizontally as shown below: · Ensure that the ceramic hob is well ventilated and that the air inlet and outlet are not blocked ·...
-
Page 8: Electrical Requirements
Electrical Requirements Warning: This appliance must be earthed Warning: There is risk of electric shock The appliance must be directly connected to the mains using an omni- polar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker) -
Page 9: Using Your Hob
Connect the mains supply cable to the terminal block on the hob using the colour code Secure the cable clamp Check the cable terminals for tightness and ensure that the terminal links are in place, then replace the cover plate and cover screw Using Your Hob Top Using the Touch Controls The controls respond to touch, so you don’t need to apply any pressure. - Page 10 heat setting within 1 minute, the ceramic hob will automatically switch off. When you have finished cooking turn the whole cooktop off by touching the ON/OFF control. Residual Heat Warning “ H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature Locking the Controls When the controls are locked, all the controls except the ON/OFF control are...
- Page 11 Over-Temperature Protection A temperature sensor monitors the temperature inside the ceramic hob. When an excessive temperature is monitored, the ceramic hob will stop operation automatically. Auto Shutdown This occurs whenever you forget to switch off a cooking zone .The default shutdown times are as follows: Power level Default working timer (hour)
- Page 12 Setting the timer to turn one cooking zone off 1. Touch the the “ +” or “-“ zone you want to set the timer for. 2. Set the time by touching the “ +” or “-“ control of the timer, and touch the “...
-
Page 13: Cleaning And Care
Cleaning and Care Always turn the appliance off before cleaning and disconnect from your mains supply Do not clean using caustic creams, abrasive cleaning powders, wire wool or hard tools on any parts of this hob. Use warm soapy water or apply a ceramic cleaner The hob can be damaged if excess cleaning liquids are not ... -
Page 14: Top Tips
Top Tips Avoid using pans on the hob that are unstable as they may be easily tipped over Use pans that have sufficient capacity for the amount of food being cooked so that they don’t boil over Use dark coloured enamelled cookware to maximise heat ... -
Page 15: Disposal Of Electrical Appliances
(WEEE). This means that this equipment must be handled in accordance with European Directive 2012/19/EU for recycling to minimize damage to the environment. Before disposing of the appliance, cut off the power cable plug and remove the door to avoid accidents. Technical Specifications T154CZSS/T Cooking Zones 4 Zones Supply Voltage 220-240V~/380-415V~,50-60Hz... -
Page 16: Problem Solving
Problem Solving Problem Possible causes What to do The hob cannot No power. Make sure the ceramic hob is be turned on connected to the power supply and that it is switched Check whether there is a power outage in your home or area The glass is being Rough-edged cookware,... -
Page 17: Failure Display And Inspection
Failure Display and Inspection If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes: Problem Possible causes What to do Check if the thermoelement is damaged or loose connection. If thermoelement Thermoelement damaged or damaged, replace a new one. -
Page 18: Health & Safety
Health & Safety Location This appliance is intended to be used in a household only. It is not suitable for use in shops, offices or other working environments Do not use outdoors Do not place appliance on a highly polished wooden surface as damage may occur to the surface This appliance should not be used in a garage, conservatory, annex, ... - Page 19 Children Children should be supervised to ensure that they do not play with this appliance Teach children to be aware of dangers in the kitchen Do not allow children to play with the appliance or tamper with the ...
-
Page 20: Warranty Information
THOR STANDARD MANUFACTURER WARRANTY TERMS AND CONDITIONS This appliance was supplied by Shomar Ltd, Dublin. Combining years of knowledge and experience with our commitment to producing high quality appliances is what make us the country’s best, fully Irish owned, Domestic Appliance Distributor. - Page 21 loss such as theft, fire or flood, your registration will serve as proof of purchase. Scan our QR to register your warranty - Terms and Conditions The Warranty only covers the appliance for use in a normal domestic environment. Institutional use or commercial use is not covered.
- Page 22 - Damage to the appliance or its components however caused. - Consumable items. E.g. Fuses, bulbs, broken glass, Knobs, Plastics. - Blockages of Filters, drainage systems, soap dispensers etc Note: - Repairs or modifications carried out by anyone other than Shomar authorised agents will deem the Warranty Null and Void.
- Page 23 Meals from Restaurant /Takeaways • General Compensation for Inconvenience • Does Thor offer replacements? This is a repair-only Warranty. On occasion, the Manufacturer may at its sole discretion, replace your product with a new product instead of carrying out a repair. In the...
- Page 24 Any costs related to disconnecting the faulty product and installing the replacement product will not be borne by the Manufacturer unless previously agreed to in writing. The original Warranty will continue to apply to the replacement product; the new product will not come with a new Warranty. Will I be charged for the repairs? It is the responsibility of the consumer to provide proof of purchase to the Engineer to ensure your product is covered...
- Page 25 The spare part availability of this appliance is 10 years. During this time, original spare parts will be available to operate the appliance properly. This appliance was supplied by Shomar Ltd Dublin. If you would like to contact us in relation to your product for service or spare parts we can be contacted on 01- 4505327 or service@shomar.ie.
