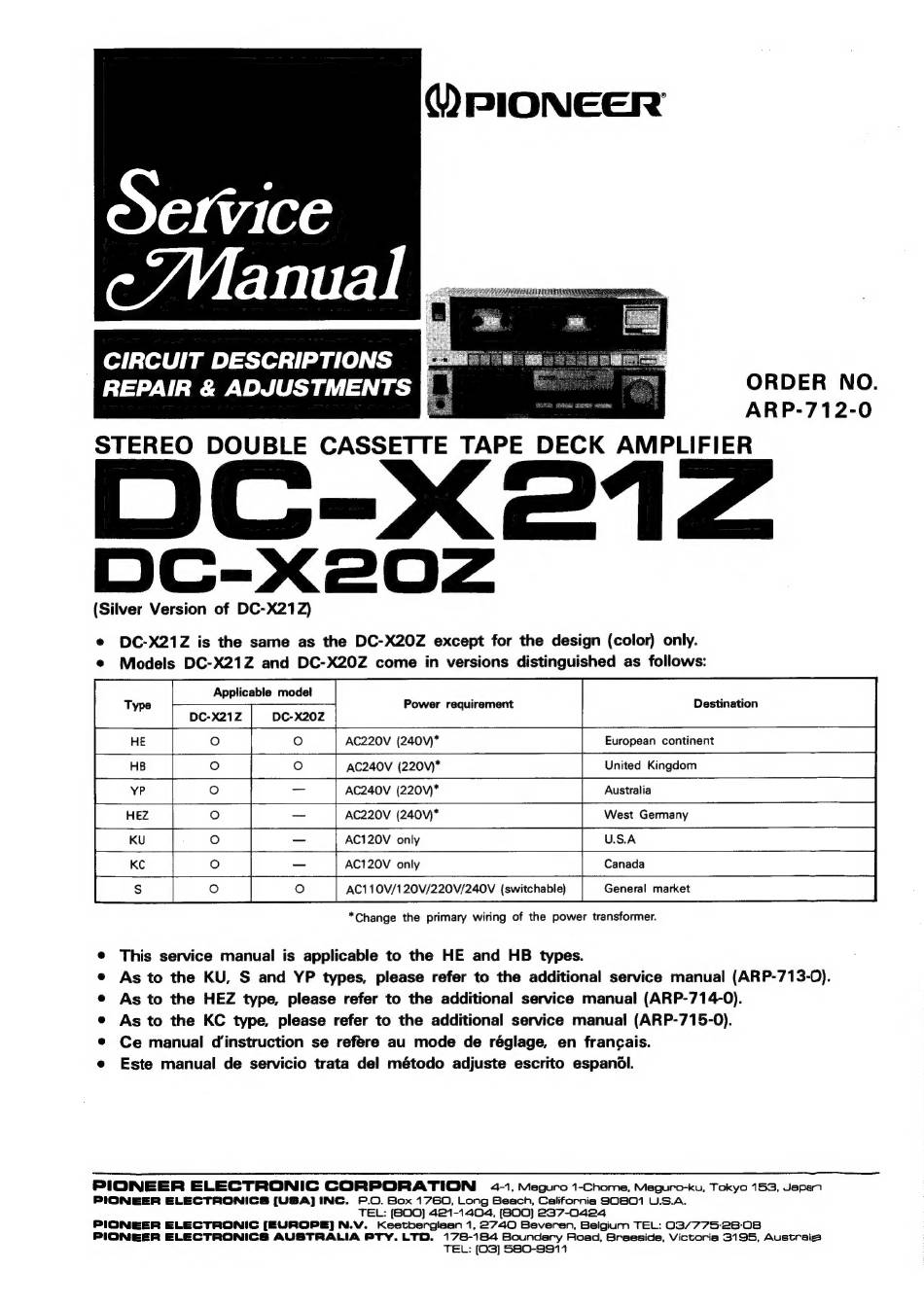

PIONEER
e1vice
CIRCUIT DESCRIPTIONS
[=aiaisttiet
ac
REPAIR & ADJUSTMENTS
[ |
ORDER NO.
ARP-712-0
STEREO
DOUBLE
CASSETTE TAPE DECK AMPLIFIER
C-X21Z2
DC-xX202Z
(Silver Version of DC-X212Z)
DC-X21Z
is the same as the DC-X20Z
except for the design (color) only.
Models
DC-X21Z and DC-X20Z
come in versions distinguished as follows:
Applicable model
Power requirement
Destination
-
DC-X20Z
AC220V (240V)*
European continent
AC240V (220V)*
United Kingdom
AC240V (220V)*
Australia
AC220V (240V)*
West Germany
AC120V
only
U.S.A
i Ebi
AC120V
only
Canada
AC110V/120V/220V/240V
(switchable)
General
market
*Change
the primary wiring of the power transformer.
This service manual is applicable to the HE and HB types.
As to the KU, S and YP types, please refer to the additional service manual (ARP-713-0).
As to the HEZ type, please refer to the additional service manual (ARP-714-0).
As to the KC type, please refer to the additional service manual (ARP-715-0).
Ce manual d'instruction se refere au mode de réglage, en frangais.
Este manual de servicio trata del método adjuste escrito espanol.
PIONEER
ELECTRONIC
CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER
ELECTRONICS
[USA]
INC.
P.O. Box
1760,
Long Beach,
California 90801
U.S.A.
TEL: [800] 421-1404, (800) 237-0424
PIONEER
ELECTRONIC
[EUROPE]
N.V.
Keetbergisan
1, 2740
Beveren,
Belgium TEL: 03/775:28:08
PIONEER
ELECTRONICS
AUSTRALIA
PTY. LTD.
178-184 Boundary Road, Braeside, Victoria 3195, Austraia
TEL: (03) 580-8911
