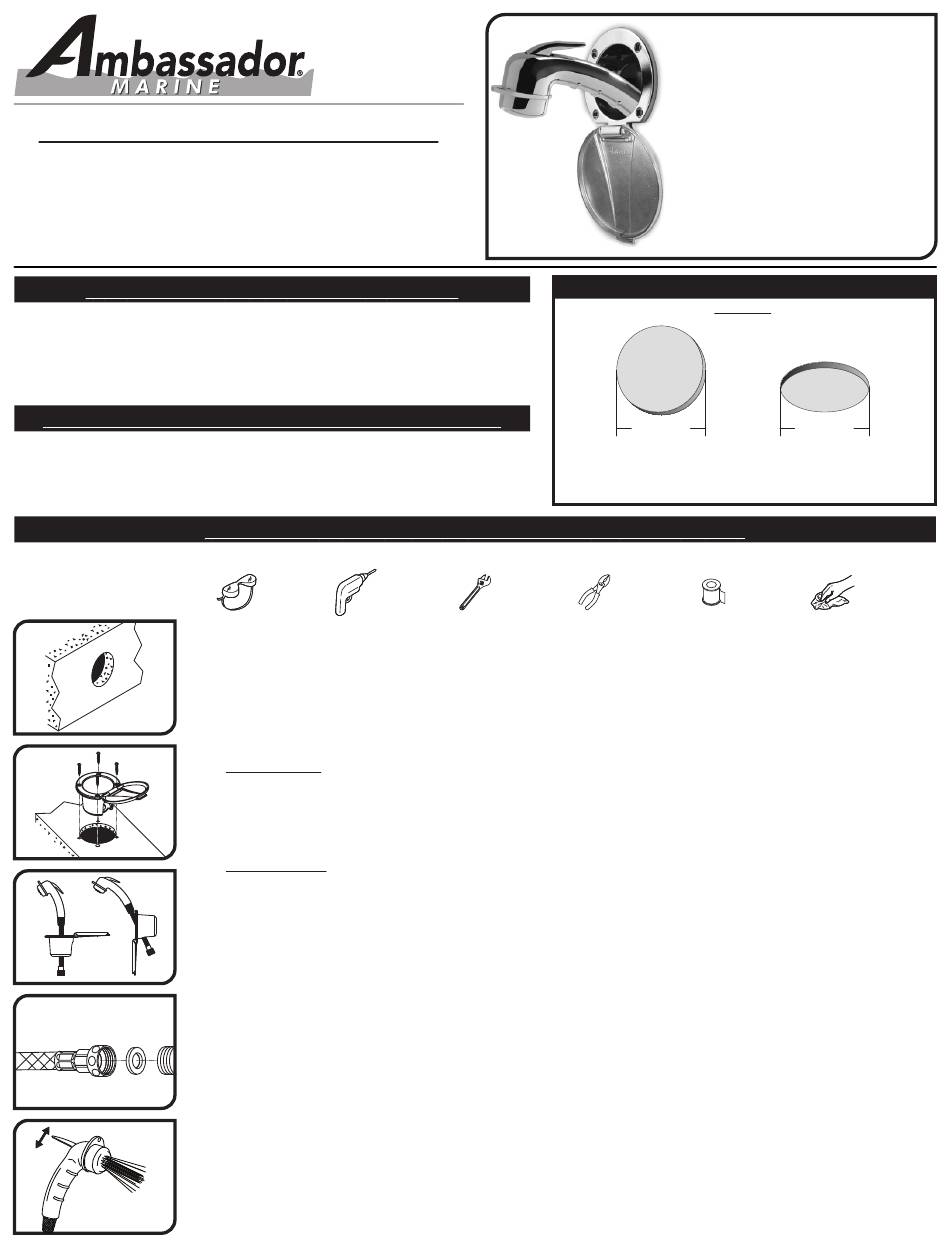

Ambassador MARINE Universal 136-0040-CW Installation Instructions

I
NSTALLATION
Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, shower, sprayer or accessory
will give you years of trouble-free performance. Please read these
instructions carefully before installing your new item. If you have any
additional questions about the installation of this product, feel free
to contact a customer service representative at 1.800.270.4262.
I R
F EPLACING
Turn off the water supply to your existing faucet (this procedure will vary
depending on the specific plumbing system installed on your boat). Remove
your existing faucet, taking care not to damage your existing water lines.
Clean bulkhead (wall) or deck area in preparation for new faucet.
I A N
F DDING EW
See "Installation Hole Requirement" to the right, for this model. Check to
ensure there is enough room for the faucet, including necessary supply line(s),
pull-out hose, etc. behind the bulkhead (wall) or under the deck. Drill hole,
using proper bit for the surface material and diameter.
1
2
3
4
5
I
NSTRUCTIONS
A E F
N XISTING
H T B
OLE O ULKHEAD
I Y
NSTALLING OUR
N
EEDED
Safety Glasses Drill
(with Bit)
1) Check desired position to make sure there is enough room for the hose to gather under the deck or
inside the wall without getting kinked or caught on anything. Our option Mesh Bag may help ensure easy use
of the hose.
2) From the front side of the bulkhead (or above the deck), place the recessed cup and lid through the hole.
Wall Mount— Place into the hole with the hinge pointing in the desired direction, either UP or DOWN,
not side to side. DOWN is the preferred direction as it will allow the lid to fall out of the way of the hose
when in use. Please note: The trigger will stick out through the back hole when the sprayer is resting in
the recessed cup. It is important to ensure there is ample clearance for the trigger, in order to prevent
accidental discharge. Secure recessed cup and lid using the provided four (4) screws.
Deck Mount— Place into the hole with the hinge pointing in the desired direction for the lid to easily lay
open when in use. Please note: The trigger will stick out through one of the side holes when the sprayer
is resting in the recessed cup. It is important to ensure there is ample clearance for the trigger, in order to
prevent accidental discharge. Secure recessed cup and lid using the provided four (4) screws.
3) Attach hose to the sprayer, ensuring the flat 1/2" rubber washer in the hose conical before connecting.
Slide hose/sprayer assembly through the appropriate hole in the recessed cup, as illustrated.
4) Connect the hose to desired water source or valve using the remaining 1/2" rubber washer. Water source
will vary depending on the specific plumbing system and configuration installed on your boat. To properly
connect to the hose, source must be the North American 'STANDARD 1/2" FAUCET' (1/2" NPS*) male
connector. Wrap male fitting with plumber's (Teflon) tape. Follow the appropriate steps depending on your
water source. We do NOT suggest using sweat fittings as they are prone to blow-outs. Turn water supply on
and allow water to run for at least one full minute. While water is running, check connections for leaks.
Connections may need re-tightening.
5) This sprayer has two functions: intermittent and continuous. For intermittent spray, simply press down on
the trigger. For continuous spray, lift up on the trigger until it locks. To release, simply press the trigger back
down.
6) The latch tension is adjustable. If you need to make the latch tighter, simply bend the 2 latch prongs in
slightly causing a stronger hold. If the latch is too tight, simply bend the 2 latch prongs out slightly allowing a
looser hold.
:
AUCET
/D :
ECK
N A
EW MBASSADOR
/ H T
ELPFUL OOLS
Adjustable Wrench
136-0040-CW
137-0040-CW
Chrome / White / Stainless Steel
Installation Hole Requirement
This unit requires a minimum of this/these hole(s)
OR
2 2 7 7 / / " - 3" " - 3"
8 8
Wall-Mount
M U :
ARINE NIT
Pliers Plumber's Tape
(Teflon)
(OEM)
(Retail)
Universal
Recessed Shower
2 2 7 7 / / " - 3" " - 3"
8 8
Deck-Mount
Clean Rags
