Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, sprayer, shower or
accessory will give you years of trouble-free performance.
Please read these instructions carefully before installing your
new item. If you have any additional questions about the
installation of this product, please feel free to contact one of
our friendly customer service representatives at 800.270.4262.
1
2
3
4
5
I
NSTRUCTIONS

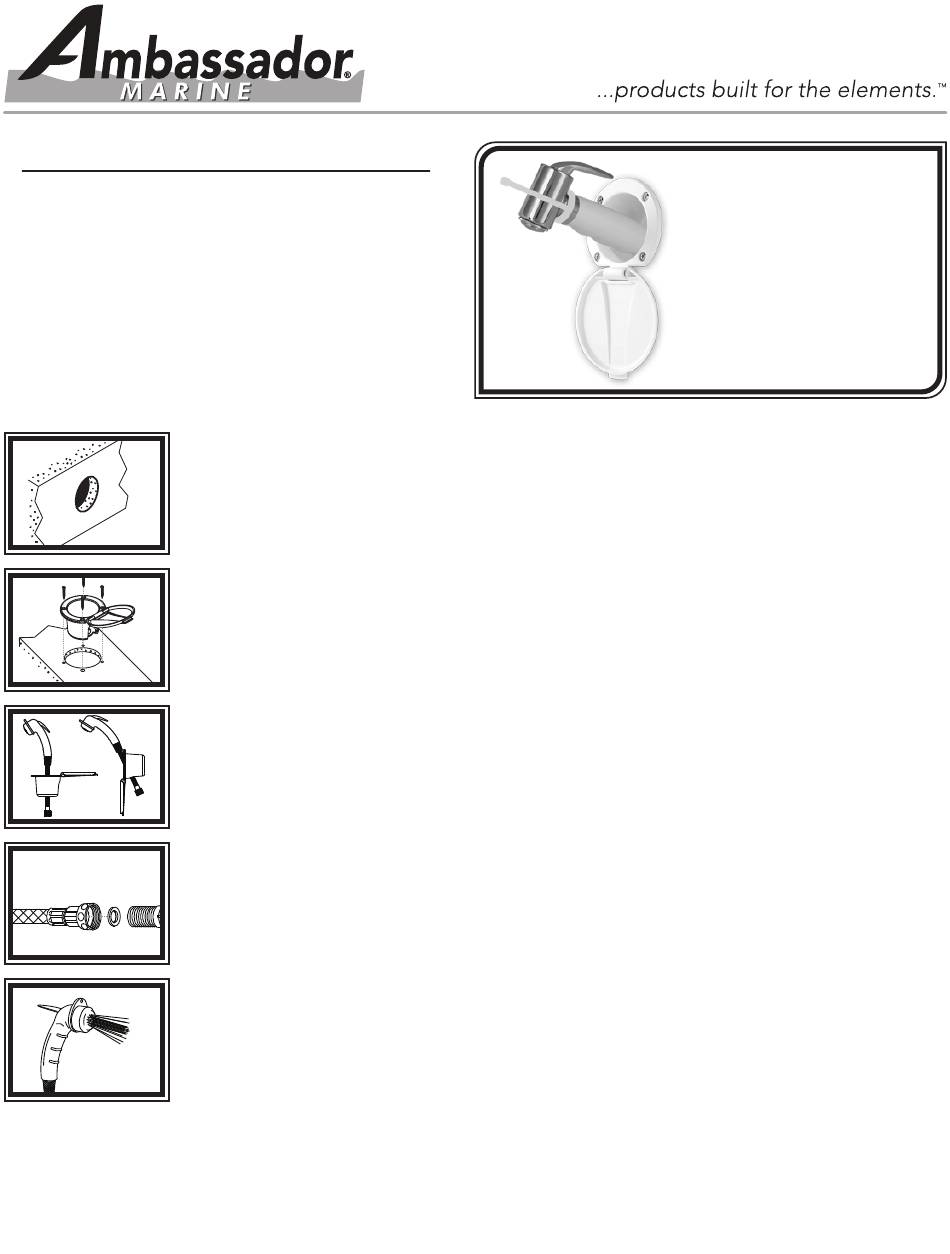

1) Check desired position to make sure there is enough room for the hose to gather under the
deck or inside the wall without getting caught on anything. Drill 2
location.
2) Place the recessed cup and lid into the hole.
Wall Mount— Place into the hole with the hinge pointing DOWN. This will allow the lid to
fall out of the way of the hose when in use. Please note: The trigger will stick out through the
back hole when the sprayer is resting in the recessed cup. It is important to ensure there is
ample clearance for the trigger, in order to prevent accidental discharge. Secure recessed
cup and lid using the provided four (4) screws.
Deck Mount— Place into the hole with the hinge pointing in the desired direction for the lid
to easily lay open when in use. Please note: The trigger will stick out through the side hole
when the sprayer is resting in the recessed cup. It is important to ensure there is ample
clearance for the trigger, in order to prevent accidental discharge. Secure recessed cup and
lid using the provided four (4) screws.
3) Slide hose/sprayer assembly through the appropriate hole in the recessed cup, as illustrated.
4) Connect to desired
in the female hose fitting.
5) This sprayer has two functions: intermittent and continuous. For intermittent spray, simply
press down on the trigger. For continuous spray, lift up on the trigger until it locks. To release,
simply press the trigger back down.
1
/
" NPT-Male water source or valve. Make sure rubber washer is in place
2
136-0014-WH
137-0014-WH
(Retail)
Universal
Recessed Shower
White
/
" to 3" hole in the desired
7
8
(OEM)
