BONKOTE PHN-3040 Installation Manual

JAPAN BONKOTE CO., LTD. 600-14, Kasahara-cho, Mito-shi, Ibaraki 310-0852 JAPAN
TEL: +81-29-241-2725
1. ATTENTION
* Before attaching the lid, unplug the pre-heater from the outlet and make sure the heater has cooled to room
temperature.
* While the switch is on, the lid is hot regardless it is in standby mode or is heating the objects. Do not touch the lid
directly with your hands, but open and close it using the lid knob.
* Handle the lid gently in order not to damage the ceramic heater in the main unit and the joint parts on the lid.
* The lid affects the temperature rise of the aluminum case of the main unit and the temperature regulator. The
dimensions and installation position of the lid have been designed to minimize this effect as much as possible.
* Attach the lid to the main unit according to the installation manual. Be sure to leave a space of 30 mm to the right
edge of the ceramic heater.

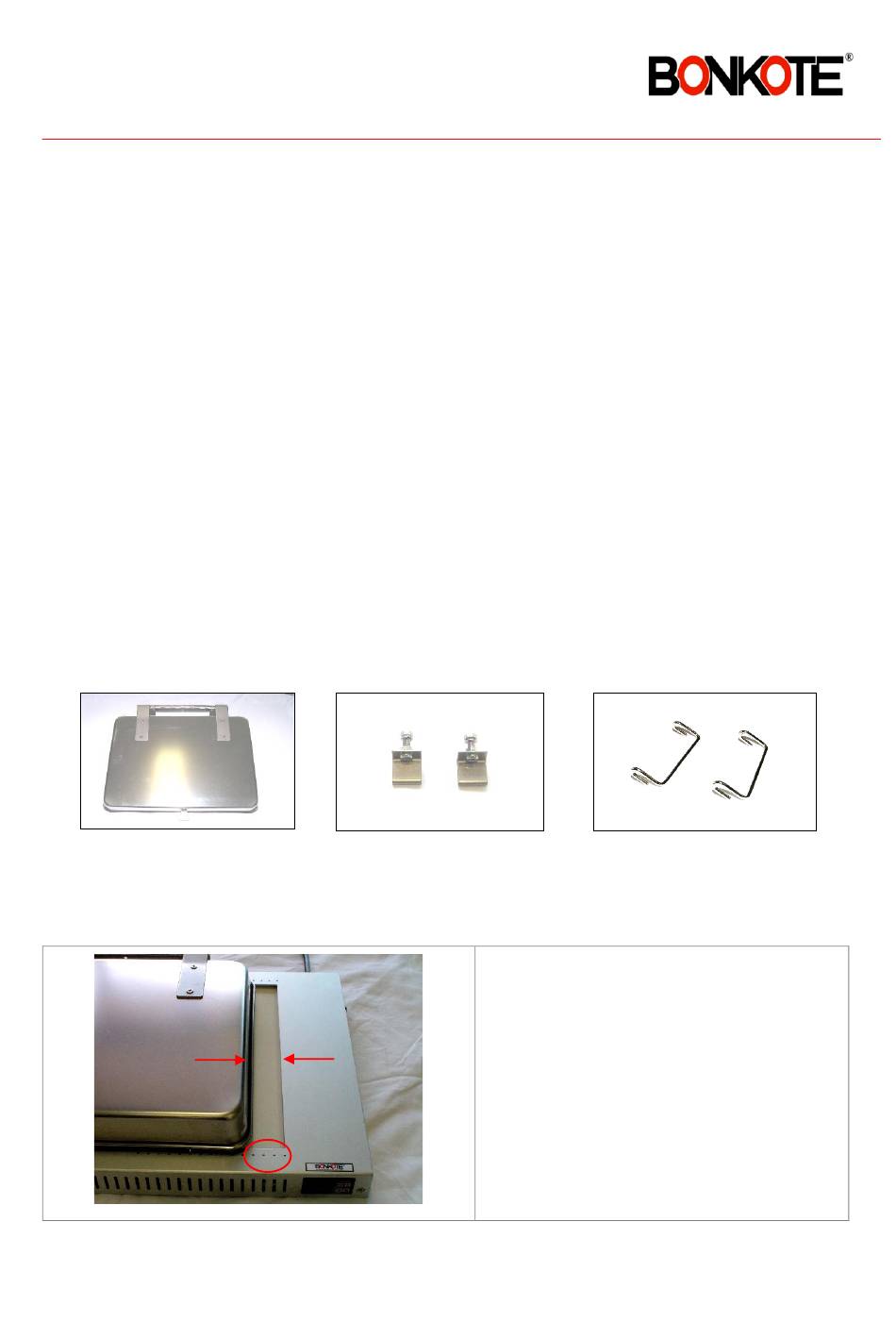

2. PARTS NAME
LID
3. HOW TO INSTALL
FAX: +81-29-241-2726
PHN-3040 Pre-heater lid Installation manual
CONNECTING PARTS
HIGH-TEC, SOLDERING IRON SYSTEM
URL: https://info@bonkote.co.jp
① Place the lid on the main unit temporarily.
Align the right edge of the lid with the fourth hole of
a stay bar from the right.
Leave a space of 30 mm to the right edge of the
ceramic heater.
HOLD WIER
