v1.0 (1.0.1.0) (EN/F)
user manual
guide de l'utilisateur
EN/F
It is important to read this user manual prior to using your new product for the fi rst time.
Nous vous recommandons de lire ce manuel d'instructions avant d'utiliser votre
nouveau produit pour la première fois.
FCC Information
Before you begin
Changes or modifi cations not expressly
Refer to the "Clock" section and
approved by Audiovox could void
follow the instructions to set the
the user's authority to operate the
clock.
equipment.
Battery back-up operation
This Class B digital apparatus
• This clock radio is equipped with
complies with Canadian ICES-003.
a memory holding system that can
Cet appareil numérique de la classe
be powered with a 9-volt alkaline
B est conforme à la norme NMB-003
battery (not included). The power
du Canada.
failure protection circuit will not
operate unless battery is installed.
• When normal household power
Electrical power
is interrupted, or AC line cord
is unplugged, the batteries will
information
power the clock radio to keep
Power Supply: 120 V ~ 60 Hz
track of time and alarm settings
Power Consumption: 5 Watts
programmed into memory.
• When the battery backup functions,
the digital display will not light,
however, the function of alarm
still occurs during the power
interruption if remaining battery
power is adequate.
• Normal operation will resume after
AC power is restored so you will not
have to reset the time or the alarm.
To install the battery:
1. Remove battery compartment door
(located at the bottom of the radio)
by applying thumb pressure to the
tab on battery door and then lift
the door out and off the cabinet.
2. Connect a 9-volt alkaline battery
(not included) to the connector
plug.
3. Replace the compartment door.
Wake function
Wake to radio
• You can activate the
When wake to radio is selected, the
previously set alarm time
green indicator lights against the
by pressing the WAKE 1
icon.
MODE or WAKE 2 MODE
button.
To set wake station:
1. Select radio band.
SmartSnooze
TM
2. Select desired station.
• This operation allows extra sleep
time after the alarm is on. The
alarm can be turned off temporarily
3. Adjust the volume by + VOL –.
by pressing SNOOZE/SLEEP OFF
or any one of the SmartSnooze
Turning off alarm
buttons until the snooze period is
To silence the alarm momentarily:
over.
• Press SNOOZE/SLEEP OFF or
TM
• SmartSnooze
buttons include:
any one of the SmartSnooze
TM
/
/ SNOOZE/SLEEP OFF.
buttons (SLEEP/
/
). The
• Snooze function can be used
alarm will sound again when
repeatedly up to 2 hours. After this,
the snooze period is over. (Read
the alarm will turn off until the
"SmartSnooze
TM
")
next alarm conditions are met.
To stop the alarm completely:
To set the "quiet" period:
• Press ON/OFF. The alarm will
1. Press and hold SNOOZE/SLEEP OFF.
activate again at the same time on
2. Press
or
to adjust snooze time.
the following day.
Release button, then, the "quiet"
period is set.
• The "quiet" period is from 1 minute
To disable the wake function
completely:
to 30 minutes. (The default time is 9
minutes)
• Press WAKE 1 MODE or WAKE 2
• SmartSnooze
TM
will be activated
MODE repeatedly until no indicator
only when the
/ WAKE 1 /
lights against the wake icons (
/
WAKE 2 /
switch is set to
) on the display.
IMPORTANT SAFETY INSTRUCTIONS
two blades and a third grounding
prong. The wide blade or the third
prong is provided for your safety. If
the provided plug does not fi t into
your outlet, consult an electrician
for replacement of the obsolete
outlet.
RC105
• Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
• Only use attachments/accessories
Some of the following information may
specifi ed by the manufacturer.
not apply to your particular product;
• Use only with
however, as with any electronic product,
the cart, stand,
precautions should be observed during
tripod, bracket,
handling and use.
or table
• Read these instructions.
specifi ed by the
• Keep these instructions.
manufacturer,
• Heed all warnings.
or sold with
• Follow all instructions.
the apparatus.
• Do not use this apparatus near
When a cart is used, use caution
water.
when moving the cart/apparatus
• Clean only with dry cloth.
combination to avoid injury from
• Do not block any ventilation
tip-over.
openings. Install in accordance with
• Unplug this apparatus during
the manufacturer's instructions.
lightning storms or when unused
• Do not install near any heat sources
for long periods of time.
such as radiators, heat registers,
• Refer all servicing to qualifi ed
stoves, or other apparatus (including
service personnel. Servicing is
amplifi ers) that produce heat.
required when the apparatus has
• Do not defeat the safety purpose
been damaged in any way, such
of the polarized or grounding-type
as power-supply cord or plug is
plug. A polarized plug has two
damaged, liquid has been spilled
blades with one wider than the
or objects have fallen into the
other. A grounding type plug has
apparatus, the apparatus has been
General controls
Power failure indicator
Right view
When AC power is interrupted
(disconnected) for a short period of
time, both time and alarm settings
will change (unless batteries are
installed). After AC power is restored
(reconnected), the Digital Display
will blink to indicate that power was
interrupted and you should re-adjust
the time and alarm settings.
• - VOLUME + – To adjust volume
• TUNING – To adjust radio frequency
Alkaline (NEDA 1604A/
IEC 6LR61) battery is
Top view
recommended. Carbon-zinc
battery may be used but memory
holding time will be substantially
reduced. Memory holding time
for a fresh alkaline battery is
approximately 8 hours (if radio
or alarm are not operated) which
should take care of short, nuisance-
type AC power failures. To preserve
battery life, the unit should remain
plugged into an AC outlet. As the
battery gets older, its voltage drops
and memory may be lost. Be sure
to replace the battery periodically.
Battery should be removed if the
unit will be stored for more than
• ON/OFF – To turn radio on or off;
one month. Leaky battery can
cancel the wake function.
badly damage the clock radio.
•
/ WAKE 1 / WAKE 2 /
select setting mode (
mode, WAKE 1 / WAKE 2 : wake
setting mode,
mode)
Warranty information
Sleep function
In sleep mode, the unit will turn off
12 Month Limited Warranty
automatically after a specifi ed time.
Applies to RCA Clock Radios
To set sleep time:
AUDIOVOX ACCESSORIES CORP. (the
1. Press SLEEP. The time display will
Company) warrants to the original retail
show "0:59" and the radio will turn
purchaser of this product that should
on.
this product or any part thereof, under
normal use and conditions, be proven
2. While holding SLEEP, press
or
defective in material or workmanship
to set the time for sleep mode.
within 12 months from the date of
• The time range is from 1 minute
original purchase, such defect(s) will be
to 2 hours. (The default time is 59
repaired or replaced with reconditioned
minutes.)
product (at the Company's option)
TM
without charge for parts and repair
3. Release SLEEP and the display will
labor.
revert to the current time.
• You may select radio stations as
To obtain repair or replacement
usual in sleep mode. The radio
within the terms of this Warranty, the
will turn off when the preset time
product is to be delivered with proof
elapses.
of warranty coverage (e.g. dated bill
of sale), specifi cation of defect(s),
To cancel the sleep function:
transportation prepaid, to the Company
• If you decide to turn off the radio
at the address shown below.
sooner, press SNOOZE/SLEEP OFF
or ON/OFF.
This Warranty does not extend to the
elimination of externally generated
To view remaining time in sleep
static or noise, to correction of
mode:
antenna problems, loss/interruptions of
• Press SLEEP once.
broadcast or internet service, to costs
incurred for installation, removal or
reinstallation of product, to corruptions
caused by computer viruses, spyware or
The last setting in sleep mode
.
other malware, to loss of media, fi les,
is saved for repeated use.
data or content, or to damage to tapes,
discs, removable memory devices or
cards, speakers, accessories, computers,
computer peripherals, other media
PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE
exposed to rain or moisture, does
not operate normally, or has been
dropped.
• No naked fl ame sources, such as
ADDITIONAL SAFETY INFORMATION
• Apparatus shall not be exposed to
dripping or splashing and no objects
• Attention should be drawn to the
fi lled with liquids, such as vases,
shall be placed on the apparatus.
• Always leave suffi cient space around
• The use of apparatus in moderate
the product for ventilation. Do
not place product in or on a bed,
rug, in a bookcase or cabinet that
may prevent air fl ow through vent
openings.
• Do not place lighted candles,
]
cigarettes, cigars, etc. on the
product.
• Connect power cord only to AC
power source as marked on the
Portable Cart Warning
product.
Plugging in for power
• Care should be taken so that objects
AC OUTLET POWER SUPPLY:
do not fall into the product.
120 V ~ 60 Hz
• Do not attempt to disassemble
the cabinet. This product does
not contain customer serviceable
components.
• The marking information is located
at the bottom of apparatus.
• To be completely disconnect the
power input, the main plug of
completely, turn the plug over and try
apparatus shall be disconnected
to insert it the other way. If it still does
from the mains.
not fi t, contact a qualifi ed electrician
• Main plug is a disconnect device.
to change the outlet, or use a different
The main plug should not be
one. Do not attempt to bypass this
obstructed OR should be easily
safety feature.
accessed during intended use.
• The ventilation should not be
Clock
To set the clock:

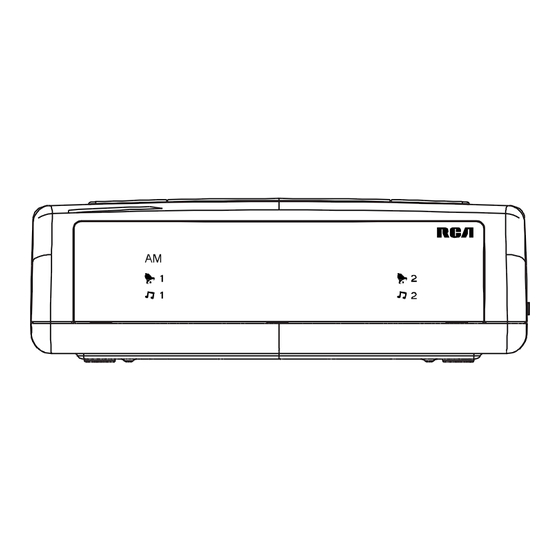

Display
1. Slide the
2. Press
• Press and hold to decrease or
Indicator
• AM – AM time
• The ":" fl ashes on the display in
•
1 – Wake time 1 to alarm
•
1 – Wake time 1 to radio
•
2 – Wake time 2 to alarm
3. Slide the
•
2 – Wake time 2 to radio
• SNOOZE/SLEEP OFF – To quiet
the wake alarm or wake radio
temporarily (default: 9 minutes);
cancel the sleep function
•
– To decrease value when setting
clock, wake, snooze and sleep
modes.
•
– To increase value when setting
clock, wake, snooze and sleep
modes.
• WAKE 1 MODE – To activate the
Wake 1 settings; change wake 1
mode (radio/alarm).
• WAKE 2 MODE – To activate the
Wake 2 settings; change wake 2
mode (radio/alarm).
– To
• SLEEP – To activate the sleep
: lock
function
• AM/FM – To select radio band
: clock setting
players, home networks or vehicle
for the Company any liability other than
expressed herein in connection with the
electrical systems.
sale of this product.
This Warranty does not apply to any
product or part thereof which, in the
Some states do not allow limitations on
opinion of the Company, has suffered
how long an implied warranty lasts or
or been damaged through alteration,
the exclusion or limitation of incidental
improper installation, mishandling,
or consequential damage so the above
misuse, neglect, accident, or by removal
limitations or exclusions may not apply
or defacement of the factory serial
to you. This Warranty gives you specifi c
legal rights and you may also have
number/bar code label(s). THE EXTENT
OF THE COMPANY'S LIABILITY UNDER
other rights which vary from state to
THIS WARRANTY IS LIMITED TO THE
state.
REPAIR OR REPLACEMENT PROVIDED
ABOVE AND, IN NO EVENT, SHALL THE
Recommendations before returning
COMPANY'S LIABILITY EXCEED THE
your product for a warranty claim:
PURCHASE PRICE PAID BY PURCHASER
• Properly pack your unit. Include
FOR THE PRODUCT.
This Warranty is in lieu of all other
express warranties or liabilities. ANY
IMPLIED WARRANTIES, INCLUDING
ANY IMPLIED WARRANTY OF
MERCHANTABILITY, SHALL BE LIMITED
TO THE DURATION OF THIS WRITTEN
WARRANTY. ANY ACTION FOR BREACH
• Note that product will be returned
OF ANY WARRANTY HEREUNDER
INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY MUST BE
BROUGHT WITHIN A PERIOD OF 24
MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE
COMPANY BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR
ANY OTHER WARRANTY. No person or
representative is authorized to assume
Important battery
impeded by covering the ventilation
openings with items such as
precautions
newspaper, table-cloths, curtains etc.
• Any battery may present a risk of
fi re, explosion, or chemical burn
lighted candled, should be placed
if abused. Do not try to charge a
on the apparatus.
battery that is not intended to be
recharged, do not incinerate, and
environmental aspects of battery
do not puncture.
disposal.
• Non-rechargeable batteries, such as
alkaline batteries, may leak if left in
climates.
your product for a long period of
This is class II
time. Remove the batteries from the
equipment designed
product if you are not going to use
with double or
it for a month or more.
reinforced insulation
• If your product uses more than one
so it does not require
battery, do not mix types and make
a safety connection to
sure they are inserted correctly.
electrical earth (US:
Mixing types or inserting incorrectly
ground).
may cause them to leak.
• Discard any leaky or deformed
battery immediately. They may
cause skin burns or other personal
injury.
The AC power plug is
• Please help to protect the
polarized (one blade is
environment by recycling or
wider than the other)
disposing of batteries according to
and only fi ts into AC
federal, state, and local regulations.
power outlets one
WARNING: The battery (battery or
way. If the plug will
batteries or battery pack) shall not
not go into the outlet
be exposed to excessive heat such as
sunshine, fi re or the like.
Ecology
Help protect the environment - we
recommend that you dispose of used
batteries by putting them into specially
designed receptacles.
Radio
Turning on/off the Radio
/ WAKE 1 / WAKE 2
Press the ON/OFF button on the top
/
switch to
to enter the clock
of the unit to turn on the radio. Press
setting mode.
again to turn off the radio.
or
to set the time.
Switching bands
Slide the band switch on the top of
increase the time value quickly.
the unit to select between AM and FM
band.
clock setting mode.
Tuning to stations
/ WAKE 1 / WAKE 2 /
switch to
.
Rotate the TUNING knob on the
right of the unit to adjust the radio
frequency with reference to the tuning
• The clock is in 12 hour
dial scale. Note that the unit of AM
format. The AM indicator
frequency shown on the tuning knob
lights to show AM time.
"x10kHz 170" is equivalent to 1700 kHz.
• The clock time blinks
if it is not set or after power
Built-in AFC
interruption (without back-up
The Built In Automatic Frequency
battery installed).
Control (AFC) works only on FM. It helps
reducing drift on FM reception and
keeping the radio locked in on the FM
station to which it is tuned.
When tuning in FM stations, you may
notice that the station you are tuning
can be well-tuned on two or three
nearby points on the dial. Always tune
carefully at the loudest and clearest
point.
AM antenna
A built-in ferrite rod antenna eliminates
the need for an outside antenna for
AM reception. Rotating the unit slightly
may improve reception of distant AM
stations.
Audiovox Electronics Corp.
Attn: Service Department.
150 Marcus Blvd.
Hauppauge N.Y. 11788
1-800-645-4994
For Canada Customers, please ship to:
Audiovox Return Centre
c/o Genco
6685 Kennedy Road,
Unit#3, Door 16,
Mississuaga, Ontario
L5T 3A5
any remotes, memory cards, cables,
etc. which were originally provided
with the product. However DO NOT
return any removable batteries,
even if batteries were included
with the original purchase. We
recommend using the original
carton and packing materials. Ship
to the address shown below.
with factory default settings.
Consumer will be responsible to
restore any personal preference
settings.
FCC Information
Note: This equipment has been tested
and found to comply with the limits
for a Class B digital device, pursuant
to Part 15 of FCC Rules. These limits
are designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee
that interference will not occur in a
particular installation. If this equipment
does cause harmful interference to
radio or television reception, which
can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
• Consult the dealer or an
experienced radio/TV technician for
help.
Wake function
Setting wake time
1. Slide the
/ WAKE 1 / WAKE 2 /
switch to select WAKE 1 or
WAKE 2 setting mode.
2. Press
or
to set the wake time.
• Press and hold to decrease or
increase the time value quickly.
• The ":" fl ashes on the display in
wake time setting mode.
3. Slide the
/ WAKE 1 / WAKE 2 /
switch back to
.
Selecting wake source
• Press WAKE 1 or WAKE 2
repeatedly to select a wake source
(alarm
/ radio
).
• The green indicator lights against
the corresponding wake icon when
the wake source is selected.
Wake to alarm
When wake to alarm is selected, the
green indicator lights against the
icon.
• The unit equips with GRAD-U-WAKE
feature, the alarm volume will
increase gradually to its maximum
in about 30 to 45 seconds.
• If you set SLEEP function with low
volume level before going to bed,
we advise using Wake to alarm
mode to wake you up since its
volume will automatically increase.
Illustrations contained within this
publication are for representation only
and subject to change.
The descriptions and characteristics
given in this document are given as
a general indication and not as a
guarantee. In order to provide the
highest quality product possible,
we reserve the right to make any
improvement or modifi cation without
prior notice.
Visit http://store.audiovox.com to find the best
accessories for your products.
© 2011 Audiovox Accessories Corporation
111 Congressional Blvd., Suite 350
Carmel, IN 46032
Trademark(s) ® Registered
Printed in China
Advertisement
