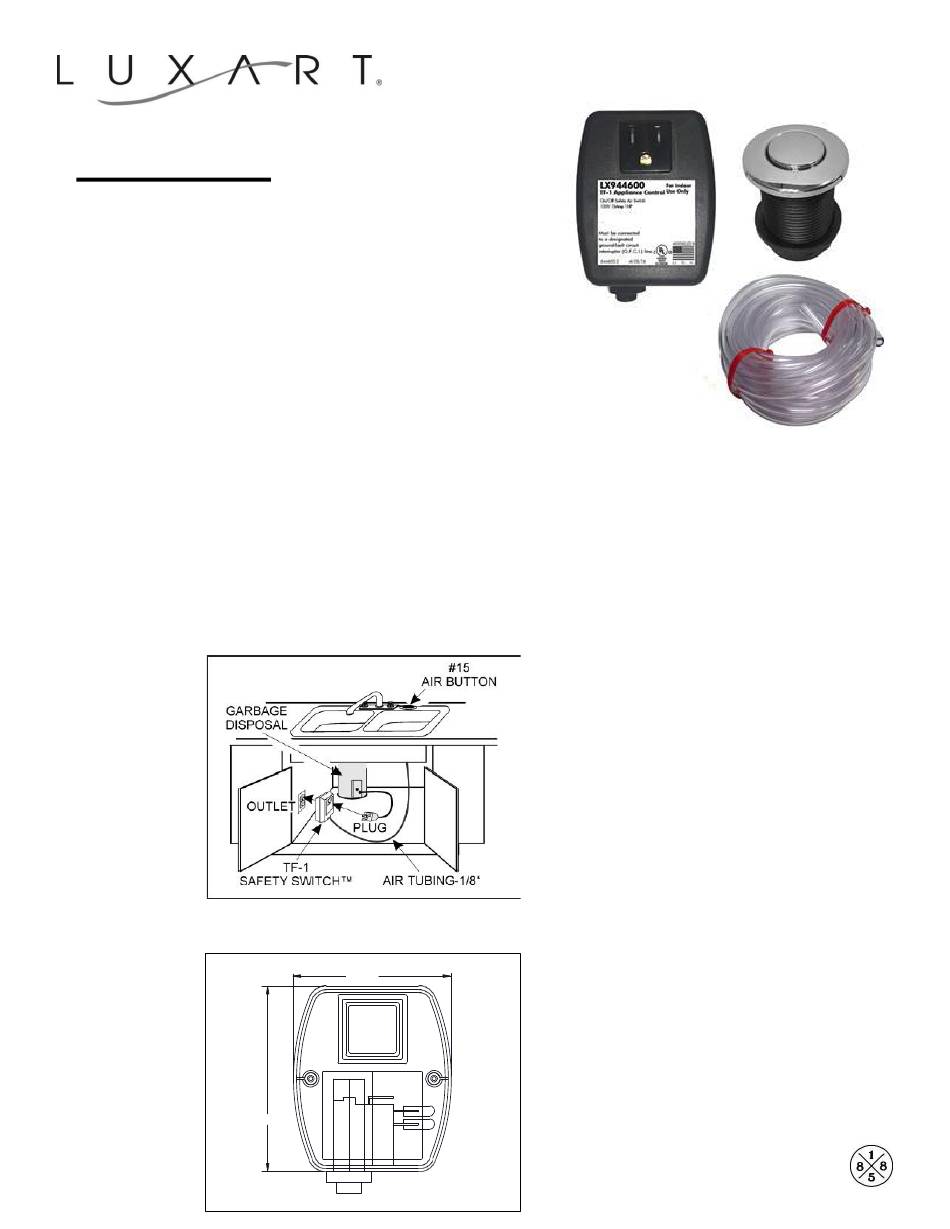

Luxart LX150 Installation

Installation
Air Switch
Description: The LX150 is an easily installed air actuated
On/Off control for an electrical device up to 1HP, 120V.
Simply plug the LX150 into any standard electrical outlet and
plug the appliance into the receptacle provided in the LX150.
The appliance can be activated and deactivated by
depressing an air button mounted up to 15' away. Please
Note: A 6' roll of tubing is supplied.
Installation Instructions (for Button Packaged Units): Determine location of
air button, drill or knock out 1-3/8" hole. Determine and attach the desired trim kit finish. Install button
by placing through the hole and hand tightening the nut underneath. Secure it snug enough to establish
a watertight seal but do not over-tighten to damage the plastic. Silicone (Plastic ABS compatible) may
be required in order to bond to some surfaces. Attach the air hose to the spout located at the bottom of
the button. Cut the hose (or coil the hose loosely) to the length needed to reach the control box. The
maximum effective tube distance is 15'. Please Note: A 6' roll of tubing is supplied. Plug the hose into
the spout located on the bottom of the control box. Plug unit into a UL approved, grounded three
pronged outlet.
Garbage Disposal
Applications:
Dimensions:
3.75"
3.20"
-Eliminates need for an electrical wall switch
-Simplifies first time garbage disposal installations
-Operates on a 120V household wall receptacle
NOTE: Ground connections are not shown and vary
with installations.
CAUTION: USE COPPER CONDUCTORS ONLY.
Do not lubricate relays. All controls must be installed
by a licensed electrician according to these
instructions.
LX150
