Luxart LX944650 Installation

Installation
Air Switch

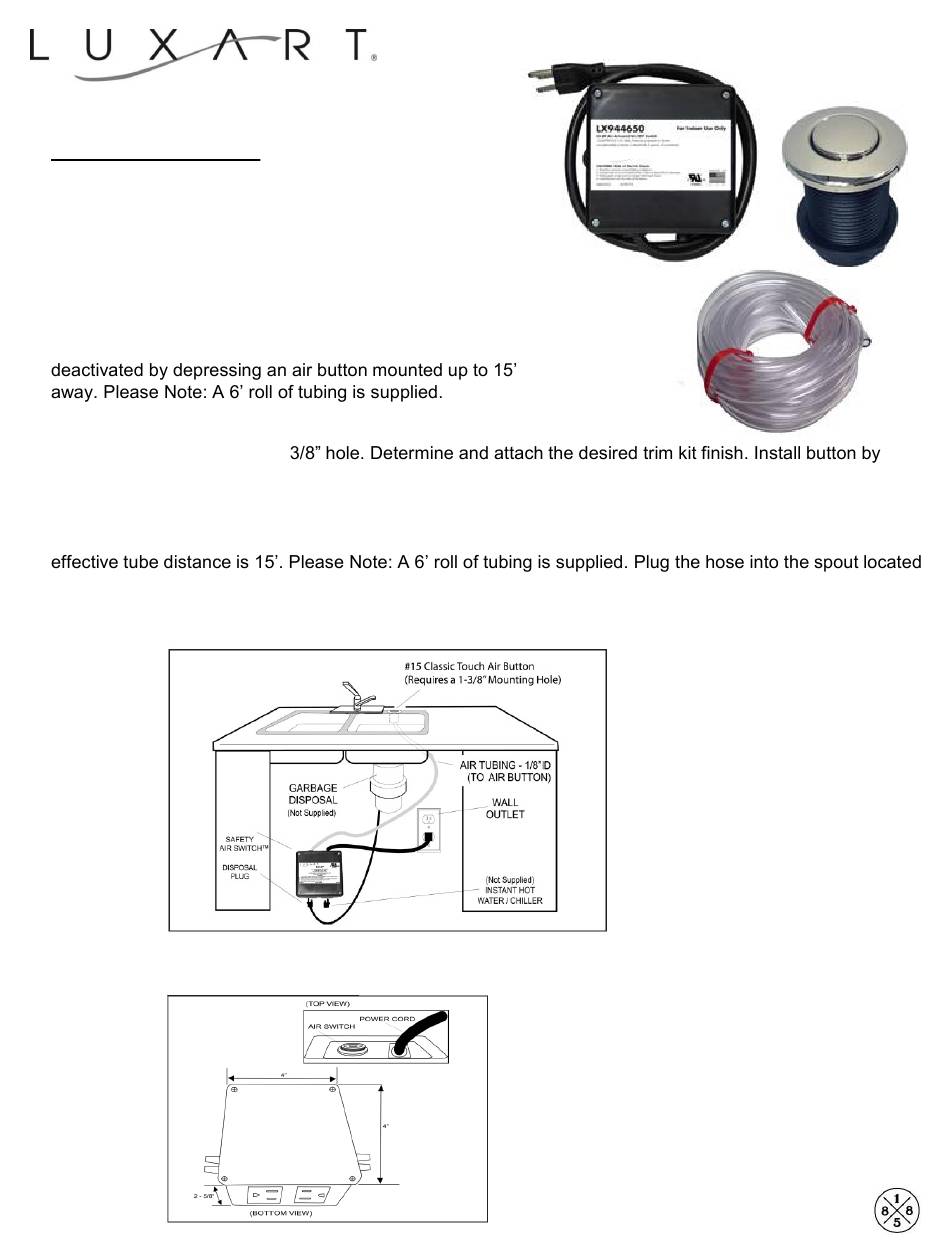

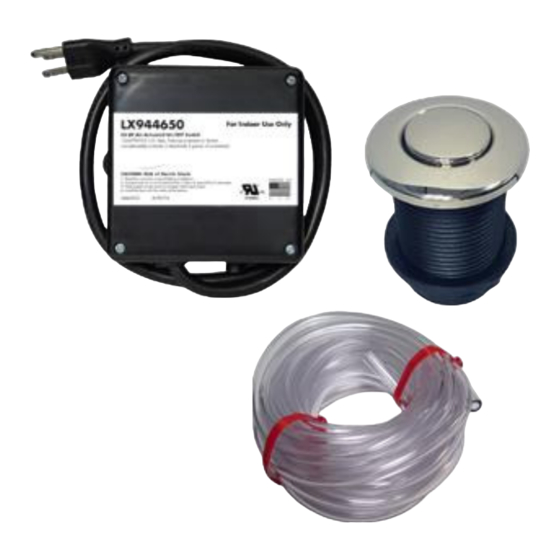

Description: The LX944650 dual outlet is an easily installed
air actuated On/Off control for an electrical device up to1HP,
120V. Simply plug the LX944650 into any standard electrical
outlet and plug the appliance into the receptacle provided in
the LX944650. The appliance can be activated and
Installation Instructions (for Button Packaged Units): Determine location of
air button, drill or knock out 1-
placing through the hole and hand tightening the nut underneath. Secure it snug enough to establish a
watertight seal but do not over-tighten to damage the plastic. Silicone (Plastic ABS compatible) may be
required in order to bond to some surfaces. Attach the air hose to the spout located at the bottom of the
button. Cut the hose (or coil the hose loosely) to the length needed to reach the control box. The maximum
on the bottom of the control box. Plug unit into a UL approved, grounded three pronged outlet.
Garbage Disposal
Applications:
Dimensions:
NOTE: Ground connections are not shown and vary with
installations.
CAUTION: USE COPPER CONDUCTORS ONLY. Do not
lubricate relays. All controls must be installed by a licensed
electrician according to these instructions.
LX944650
