FIRETECH HV-VIOLET-6KIT Instruction Manual

Violet/uv-c germicidal lighting system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

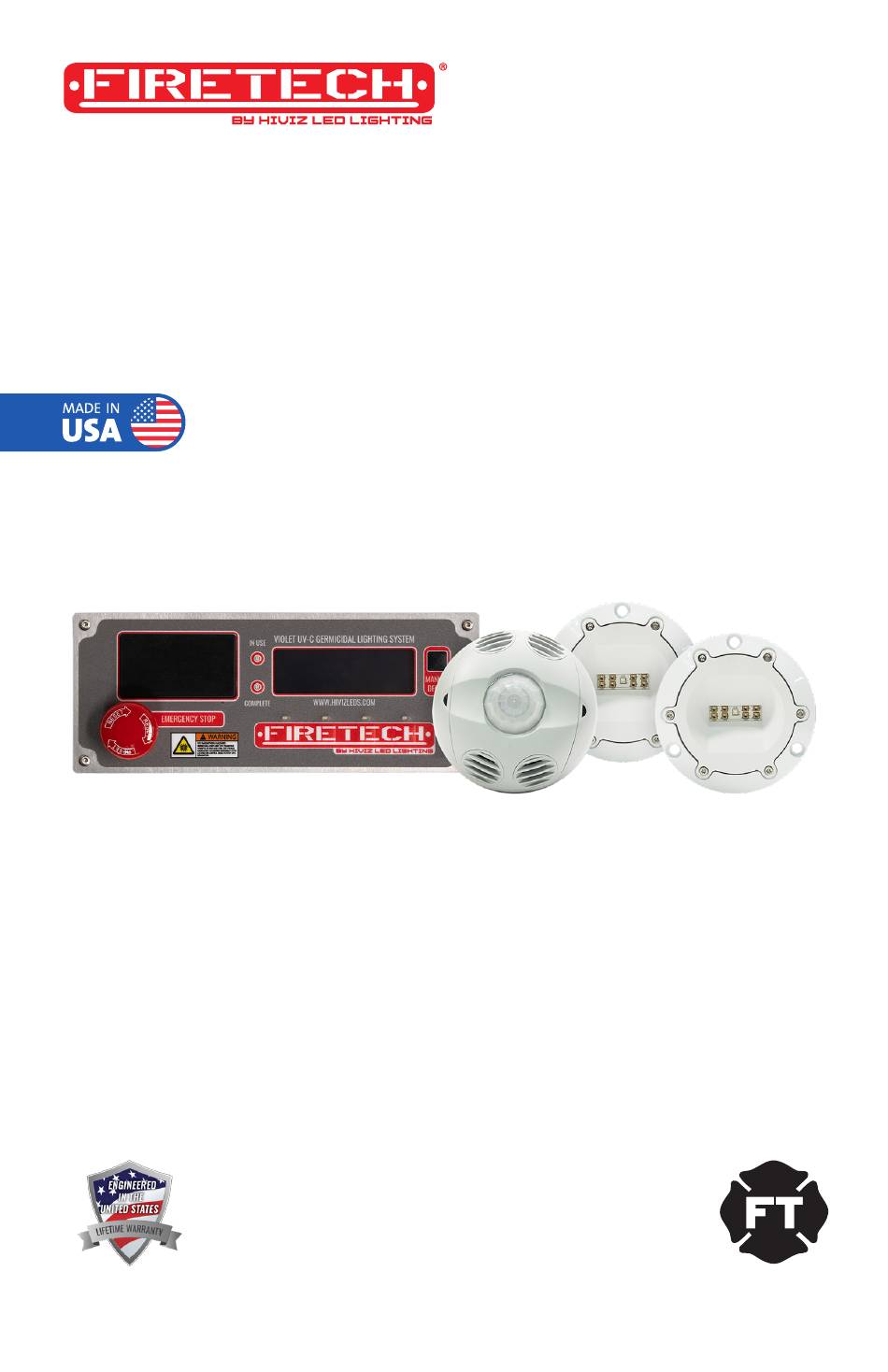

VIOLET/UV-C GERMICIDAL LIGHTING SYSTEM
INSTRUCTION MANUAL
HV-VIOLET-6KIT
MANUAL VERSION 1.2 (May 30, 2025)
HiViz Lighting, Inc
Phone: 703-662-3458
1
Email: firetech@hivizleds.com
PO Box 565, Naples, NC 28760
HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HV-VIOLET-6KIT and is the answer not in the manual?

Questions and answers

Related Manuals for FIRETECH HV-VIOLET-6KIT

Summary of Contents for FIRETECH HV-VIOLET-6KIT

  • Page 1 VIOLET/UV-C GERMICIDAL LIGHTING SYSTEM INSTRUCTION MANUAL HV-VIOLET-6KIT MANUAL VERSION 1.2 (May 30, 2025) HiViz Lighting, Inc Phone: 703-662-3458 Email: firetech@hivizleds.com PO Box 565, Naples, NC 28760 HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...

  • Page 2: Table Of Contents

    Technical Specifications ..........8-9 Installation Instructions ..........10-12 PIN Layout ..............13-16 Wiring Information ............17-19 Occupancy Sensor Setup ..........20 User Interface Panel Setup/Programming ....21-30 Operating Warning & Errors/Troubleshooting ..31-32 HV-GERMICIDAL LIGHTING SYSTEM HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...

  • Page 3: Safety Notice & Warranty

    • Occupancy sensor • Fuses or Terminal connectors • Speaker (audible announcements) • (If enabled) door trigger • (If enabled) park sensor • (If enabled) seatbelt sensor HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 4 Dose, irradiation time, and other settings must be reviewed and established by a qualified professional. HiViz sets a system default which must be calibrated and adjusted per vehicle. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 5 PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION Warranty Information: Full policy available Online at hivizleds.com/warranty • Proof of purchase may be required to validate warranty. All FireTech products are warranted for the useful service life of the vehicle for which they were first installed •...

  • Page 6: Violet / Uv-C Germicidal Lighting System Assembly

    •Saw or other means to cut out holes 2 Pin Connector (P1) NOTE: P/N: ACNTBC-P-2P-S-7.62mm Tighten screws by hand/screwdriver. Power-tools can cause damage to isolators and cause an insecure attachment. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...

  • Page 7: Mounting Dimensions

    *Please see template on separate full size pieces of paper included in package to use. The template below is NOT to scale. VIOLET USER INTERFACE PANEL VIOLET EMITTER HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS VIOLET USER INTERFACE PANEL WATTAGE 2.6W AMP DRAW (@12V) 0.2A INPUT VOLTAGE 9-16V DC WEIGHT 0.6 LBS. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 9 TECHNICAL SPECIFICATIONS CONT. VIOLET EMITTER WATTAGE 26.9W AMP DRAW (@12V) 2.1A INPUT VOLTAGE 11-32V DC WEIGHT 1.2 LBS. TEMP. RATING -40 ~ 185F IP RATING IP68/69K OCCUPANCY SENSOR HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...

  • Page 10: Installation Instructions

    Identify a mounting location for the occupancy sensor. This sensor should be placed centrally in the patient (or irradiation) compartment, and not obstructed by opening of doors or interior cabinets HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 11 14 and 15 Mount all components in prepared locations Connect wiring to violet user interface panel, leaving the power cable OFF the emitter circuit until system is completely configured HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 12 Rotate the sensor to the desired orientation. Note that the sensor base and back cover are keyed. To lock the device in place, ensure that the arrows are not aligned. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 13 USER INTERFACE PANEL PIN & HEADER LAYOUT J300 P400 J100 P300 HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...

  • Page 14: Pin Layout

    Channel pins can be wired together. CHANNEL 1 HV-VIOLET-AQX: CHANNEL 1 OUT Each Channel should have at least 1 Violet Emitter and a maximum of 4 Violet Emitters. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 15 24V ACTIVE HIGH INPUT (BLUE WIRE) - OCCUPANCY SENSOR GROUND (BLACK WIRE) - OCCUPANCY SENSOR 24V DC OUT 24V DC OUTPUT (RED WIRE) - OCCUPANCY SENSOR (MAX 200mA) HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 16 (or battery ground). The Violet User Interface Panel does not switch or control the ground plane. J100 Mating Connector: ACNTBP01P1-508-02BE (BLUE) J100 PINOUT DESCRIPTION POWER 9-16V DC GROUND HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...

  • Page 17: Wiring Information

    HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 18 Each Channel should have at least 1 Violet Emitter and a maximum of 4 Violet Emitters. It is recommended to evenly divide the emitters between each channel to balance the electrical load on the system. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 19 24V ACTIVE HIGH INPUT (BLUE WIRE) - OCCUPANCY SENSOR GROUND (BLACK WIRE) - OCCUPANCY SENSOR 24V DC OUT 24V DC OUTPUT (RED WIRE) - OCCUPANCY SENSOR (MAX 200mA) J100 PINOUT DESCRIPTION POWER 9-16V DC GROUND HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...

  • Page 20: Occupancy Sensor Setup

    HiViz recommended configuration time interval. All other dials (red, green, and blue), should remain in their “default” state as illustrated in the table below. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...

  • Page 21: User Interface Panel Setup/Programming

    To enter the main menu, THE DEFAULT PIN IS 1234 (AS SEEN ABOVE) HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 22 Channel 1 and Channel 2, select back until it takes you out of the menu and to an Idle screen (you may see one of a few different screens explained on next page). HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 23 O = Occupancy Sensor Anytime a sensor is not detected as active and stopping the decon, you will see the letter of that sensor disappear from the screen. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 24 NA, then the system will never arm and activate a decontamination cycle and any manual decon requests will be aborted. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 25 The PIR/Ultrasonic Occupancy Sensor that is included with the system cannot be set to NA (disabled), as it is required to be the minimum level of sensor input for safe functionality of the system. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 26 After completing a successful decon, the system will sit in an inactive state until occupancy is detected, at which point the auto-decon timers will automatically reset. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 27 Select back to save your selection and return to the menu HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 28 Note: if you cannot get into your system and need to factory reset it, press a paper clip into the small hole on the front of the panel. This will rest the password back to 1234. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 29 Here you will be asked to enter a new Once you have entered the PIN you four digit PIN will see this screen confirming that your PIN has been updated HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 30 Select back to save your selection and return to the menu HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...

  • Page 31: Final Checks

    If this is accurate, then attempt to measure the voltage at the light head to see if any voltage drop is occurring. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
  • Page 32 If Violet emitters do not cut off, press E stop, exit patient compartment, remove fuse from system and contact HiViz. Improper operation of violet emitters in the presence of an occupant could present a safety hazard. HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: firetech@hivizleds.com...
