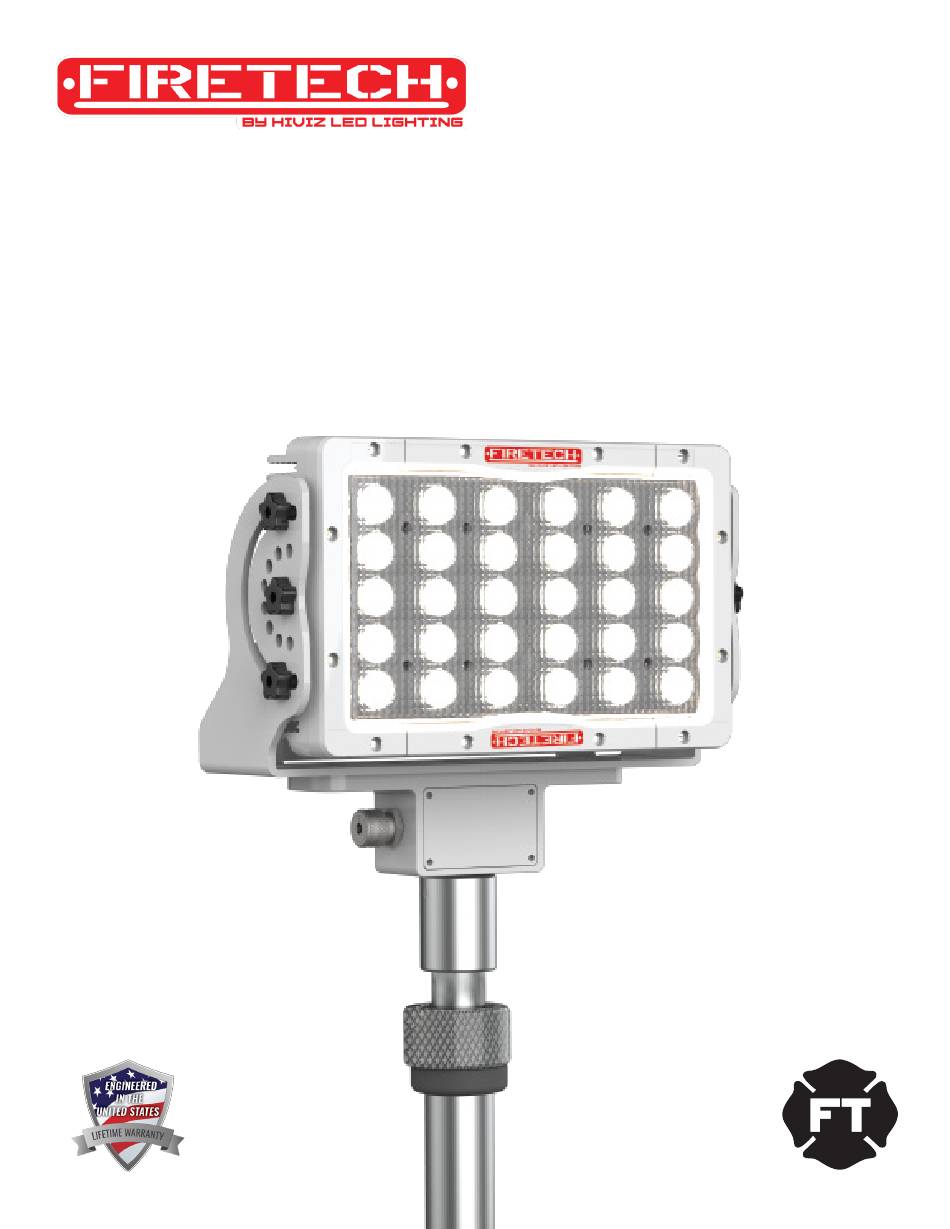

FT-SL-15 INSTRUCTION MANUAL
Pole Mounted Scene Lights
FT-SL-15 & FT-SL-X-15
HiViz LED Lighting
HiViz Lighting, Inc
Phone: 703-662-3458
1
Email: sales@hivizleds.com
PO Box 565, Naples, NC 28760
HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: sales@hivizleds.com
Advertisement
Table of Contents
Related Manuals for FIRETECH FT-SL-15
Summary of Contents for FIRETECH FT-SL-15
- Page 1 FT-SL-15 INSTRUCTION MANUAL Pole Mounted Scene Lights FT-SL-15 & FT-SL-X-15 HiViz LED Lighting HiViz Lighting, Inc Phone: 703-662-3458 Email: sales@hivizleds.com PO Box 565, Naples, NC 28760 HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: sales@hivizleds.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Notice & Warranty............3 What’s Included..............4 Technical Specifications............5 Wiring Information.............6-7 Installation Instructions............8 FT-SCENE LIGHTS HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: sales@hivizleds.com... -
Page 3: Safety Notice & Warranty
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION Warranty Information: Full policy available Online at www.hivizleds.com/warranty • Proof of purchase may be required to validate warranty. All FireTech products are warranted for the useful service life of the vehicle for which they were first installed •... -
Page 4: What's Included
WHAT’S INCLUDED PIECES INCLUDED TOOLS REQUIRED •5/64 Allen Wrench Power Supply Bolt • Wire Strippers Wago (3 Total) Light Fixture Pole Mounting Adaptor HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: sales@hivizleds.com... -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS 20,000 RAW LUMEN LED SCENE LIGHT FT-SL-15 / FT-SL-X-15 LEDS 30 X 5W RAW LUMENS 20,000 EFFECTIVE LUMENS 11,888 OPT. HOUSING COLORS BLACK OR WHITE OPT. BEAM PATTERNS SPOT, FLOOD, COMBO DIMENSIONS 11.75” X 7.54” X 4.94” WATTAGE... -
Page 6: Wiring Information
WIRING: CONNECTOR BLUE= Neutral BROWN= Line GREEN= Ground • FT-SL-15 - 12.5 A - 15 A • FT-SL-15 - 1.254 A • FT-SL-X-15 - 15.41 A - 20 A • FT-SL-X-15 - 15.4 A • Available in AC or DC •... - Page 7 WAGO WIRING: CONNECTOR RED= Power BLACK= Ground • FT-SL-15 - 12.5 A - 15 A • FT-SL-15 - 1.254 A • FT-SL-X-15 - 15.41 A - 20 A • FT-SL-X-15 - 15.4 A • Available in AC or DC • Power supply for the AC configuration attaches to the back of the light fixture mounting bracket •...
-
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS (AC & DC) 1. Unscrew old light from the pole, disconnect old wiring. 2. Prepare the new light by opening the junction box access cover and bringing it next to the pole. 3. Pull old wiring up and into the junction box on new light fixture, and align the threads of the new fixture with the old pole.
