LG LP1025WSSM Quick Installation Manual

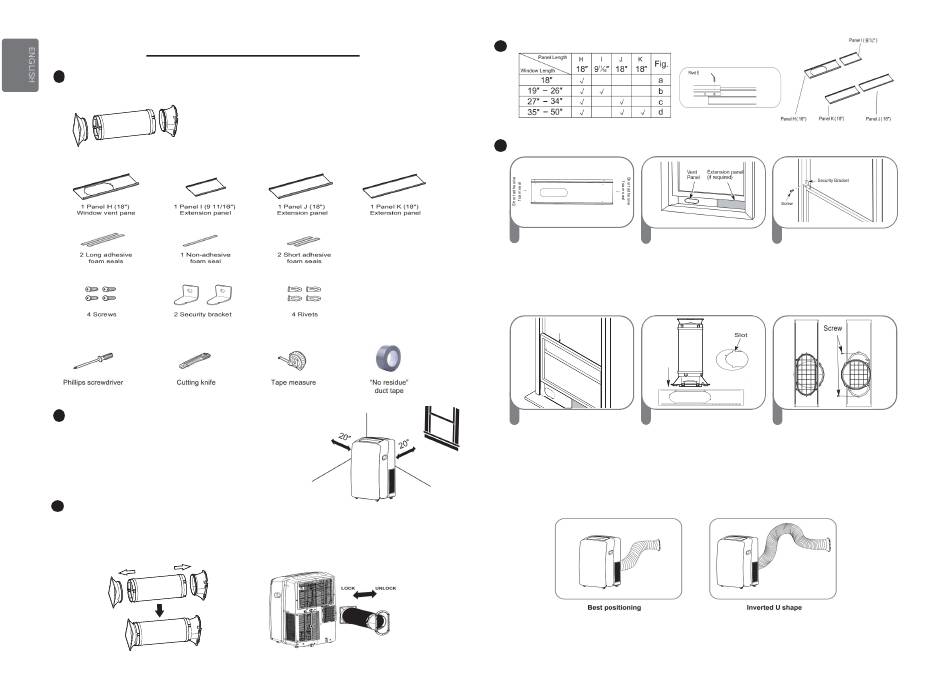

QUICK INSTALLATION GUIDE
Preparing for Installation
1
• Basic Installation Materials Supplied
Diffuser
Flexible Vent
Mounting
Hose
Bracket
• Installation Tools
Selection of Installation Location
2
1. Place the unit on a level floor.
2. For best performance, allow at least 20" of air space on all sides of
the unit for good air circulation.
3. Place the unit near a window. The hose and diffuser will be used to
connect the air conditioner to the window installation kit to vent exhaust
air outside.
Attaching the Flexible Vent Hose Set
3
1. Preparing the exhaust hose assembly: Press the mounting bracket and the diffuser into the flexible exhaust hose.
Both mounting bracket and diffuser have integral clips that snap onto the hose.
2. Insert the mounting bracket into the slot on the back of the air conditioner.
3. Slide down to lock the hose into place.
4. Confirm the hose is locked in place before operating.
Flexible Vent
Hose
Diffuser
Mounting
Bracket
Exhaust hose assembly
Window Vent Panel and Extensions
4
1. Please check your window size and choose the fit from the above table.
2. lf your window size requires more than 2 panels, after adjusting the length, please secure the panels with rivets, E.
Installing Vent Panels
5
Long adhesive foam seal
↓
↑
Long adhesive foam seal
1 2
Attach the long adhesive foam Insert the panel assembly in the
weather seals to the top and bottom bottom sash channel. Use care
sides of the window vent panel when installing the assembly,
assembly. Attach the short foam which will now fit very tightly in the
weather seals to the right and left opening. Close the sash tightly
sides of the panel assembly. against the top of the panel
(Attaching the foam weather seals to assembly.
the panel assembly rather than the
window sash and frame makes for
easier cleanup when removing the
panel assembly.)
Non-adhesive
foam seal
Insert
4
5
Measure and cut the included Align the tabs on the diffuser with
non-adhesive foam to fit the slots in the 6 outer slide section.
window opening. Stuff it between Insert the diffuser into the opening
the window sashes to prevent air in the vent panel.
and insects from getting into the
room.
NOTE
• For a tighter seal, use "no residue" duct tape (not provided) to seal any gaps around the installed panel
assembly, around the diffuser, and between the sashes.
• For best results, keep the vent hose as short and straight as possible. However, shape the diffuser end of the vent
hose into an inverted U shape just inside the window to allow any rain or condensation to drain out the window.
• For more detailed instructions, refer to the INSTALLATION section of the OWNER'S MANUAL
3
If needed, install the included
security bracket with screws.
6
Insert the screw in the hole in the
diffuser to prevent the diffuser
from sliding out of the vent
opening.
Rev.02
