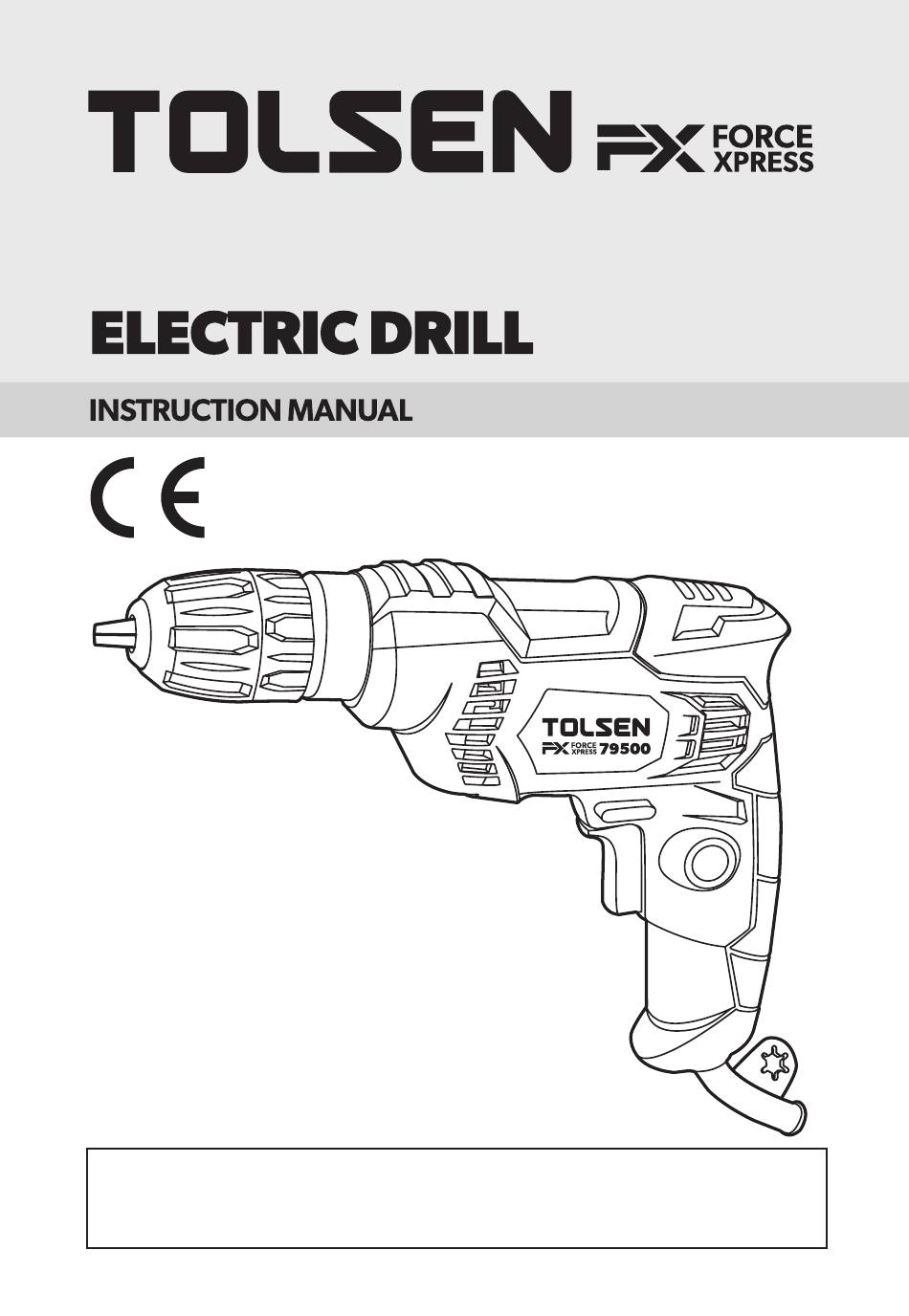

- Page 1 79500 230V~50Hz 400W SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
-
Page 2: Drill Safety Warnings
SAFETY Drill Safety Warnings 1. Wear ear protectors with hammer drill. Exposure work before turning on the tool. to noise can cause hearing loss. 8. Do not lay the tool down until it has come to a 2. Use auxiliary handles supplied with the tool. complete stop. - Page 3 SAFETY 230V~50Hz / 400W Electrical Rating 0-3800RPM Rotational Speed Chuck Capacity 3/8” (10mm) Wood Capacity 1” (25mm) Steel Capacity 3/8” (10mm) Double Insulated Zhejiang dano testing technology Co. Ltd WARNING mark concerning Risk of Eye Injury. Wear ANSI-approved safety goggles with side shields Read the manual before set-up and/or use.
-
Page 4: Before Use
SETUP Before Use Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. WARNING: TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Release the Trigger, make sure the Trigger lock is not engaged and unplug the tool from its electrical outlet before adjusting the tool or installing accessories. -
Page 5: Forward-Reverse
GENERAL OPERATING INSTRUCTIONS This tool is designed for drilling into almost any material（wood, metal and plastics）. Operating the chuck 1. Be sure the drill is disconnected from power source. diameter. 2. Open the chuck, using the chuck key, until it accepts 3. -
Page 6: Maintenance And Servicing
MAINTENANCE AND SERVICING WARNING: TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn off the switch and unplug the tool from its electrical outlet before performing any inspection, maintenance, or cleaning procedures. TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use. -
Page 7: Troubleshooting
TROUBLESHOOTING Troubleshooting Problem Possible Causes Likely Solutions Tool will not 1. Cord not connected. 1. Check that cord is plugged in. start. 2. No power at outlet. 2. Check power at outlet. If outlet is 3. Tool’s thermal reset breaker unpowered, turn off tool and check circuit tripped (if equipped). -
Page 8: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY SUZHOU TOLSEN TOOLS CO.,LTD. 198 HUASHAN ROAD, ZHANGJIAGANG, JIANGSU, CHINA Declare that the product 79500 Electric Drill(AT3201) "220-230V~ 50Hz 400W n0= 0-3800r/min Max. Φ 10mm" Serial number: N/A Complies with the essential health and safety requirements of the following... - Page 9 SUZHOU TOLSEN TOOLS CO.,LTD. www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. SCAN TO VISIT TolsenWorld MADE IN CHINA PRODUCT LINK...
