Installation guide

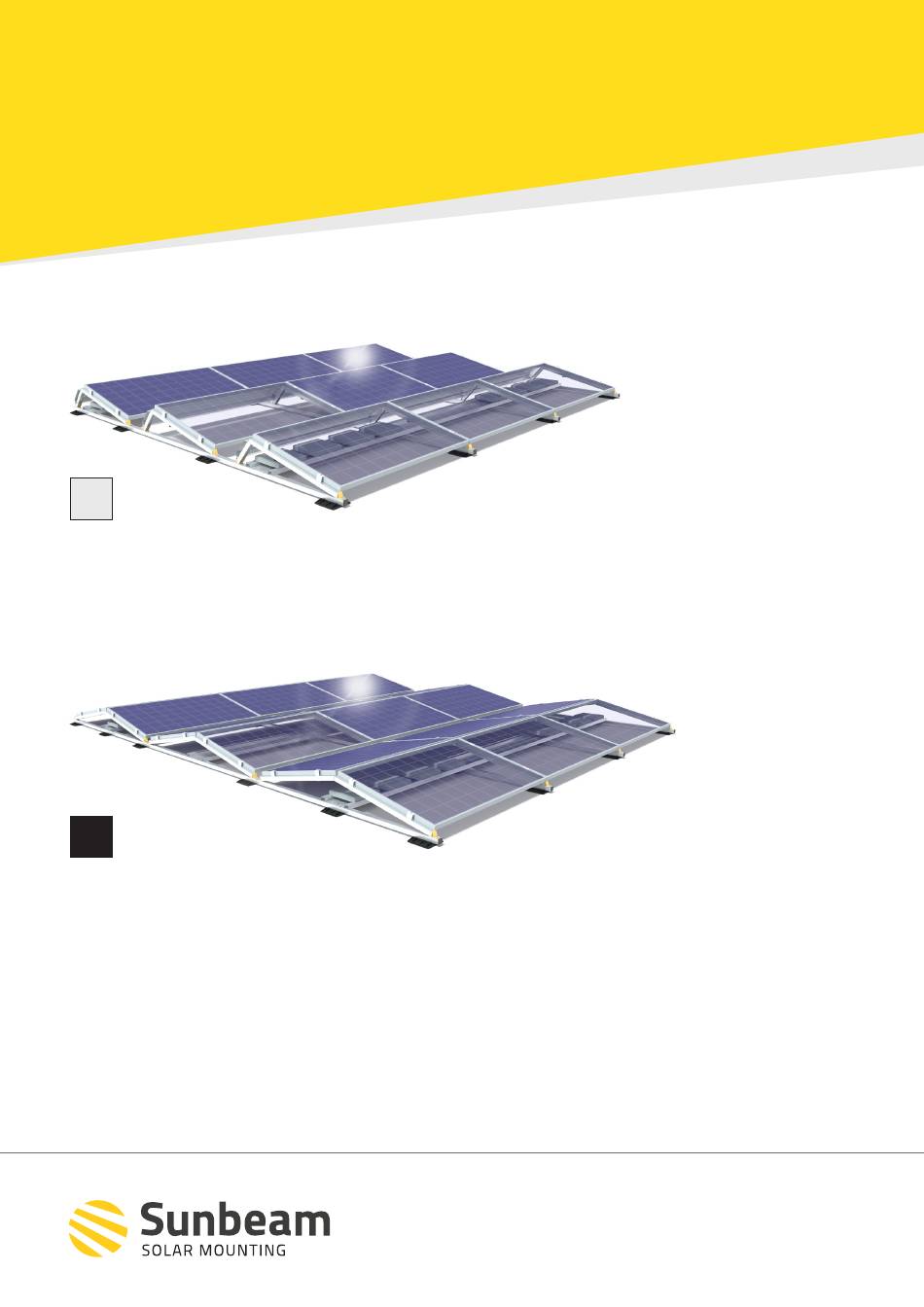

U
Universal
installation of a Sunbeam Universal system (solar panels facing south).
S
Symmetrical
Installation of a Sunbeam Symmetrical system ('east-west' configuration).
This installation guide describes the installation of Sunbeam Nova systems for mounting solar modules on flat roofs.
Installation always needs to be based on a configuration and ballast plan generated by the Sunbeam Calculator software.
Please keep a copy of the configuration and ballast plan and this installation guide with your project documentation.
If you have any questions about the installation, please contact Sunbeam BV (for contact details see last page).
> see p. 3-4
> see p. 5-6
supporting sustainability
ENG
Advertisement
Table of Contents
Related Manuals for Sunbeam Nova Universal
Summary of Contents for Sunbeam Nova Universal
- Page 1 This installation guide describes the installation of Sunbeam Nova systems for mounting solar modules on flat roofs. Installation always needs to be based on a configuration and ballast plan generated by the Sunbeam Calculator software. Please keep a copy of the configuration and ballast plan and this installation guide with your project documentation.
-
Page 2: Main Parts
General Main parts Base units The base units support the system. They are available in several lengths, enabling you to vary the distance between the rows. base unit M (with ‘connector’) base unit E (without ‘connector’) optional Carriers Attach the carriers to the base units to form a stable triangular base for mounting the solar panels. -
Page 3: Preparation And Safety
Only systems that are installed according to a configuration and ballast plan generated with the current version of the Sunbeam Calculator at the time of ordering the system, are eligible for the Sunbeam product warranty. For more information about the warranty terms and conditions: see last page. - Page 4 Sunbeam Nova Universal 1. Placing the feet and the base units M or E Attach one foot per base unit by clicking it into Place the base units on the roof in the order indicated in the configuration and ballast plan.
- Page 5 5 Nm When placing a solar panel, pay attention to the lip Sunbeam Nova end clamps can be used universally The mid clamps ensure a 10 mm gap between the at the end of the carrier, which prevents the solar for panels ranging from 23 to 46 mm in thickness.
- Page 6 Sunbeam Nova Symmetrical 1. Placing the feet and the base units Attach one foot per base unit by clicking it into Place the base units on the roof in the order indicated in the configuration and ballast plan. place at the end without connector. The holes in Add feet underneath the base units at each position where ballast is needed (see arrows).
- Page 7 5 N m When placing a solar panel, pay attention to the lip Sunbeam Nova end clamps can be used universally The mid clamps ensure a 10 mm gap between the at the end of the carrier, which prevents the solar for panels ranging from 23 to 46 mm in thickness.
-
Page 8: Standards And Regulations
For Switzerland: SIA 260 ‘Grundlagen der Projektierung von Tragwerken’ / SIA 261 ‘Actions on structures’ . Warranty Provided Sunbeam Nova is installed and maintained according to the instructions, SUNBEAM BV guarantees the system’s mechanical stability as well as its capability to withstand wind and snow loads conform the relevant Eurocodes.
