Keep out of reach of children
2 people
1/2 day
Tools required
N°6
N°5
N°13
N°17
N°13 ratchet spanner

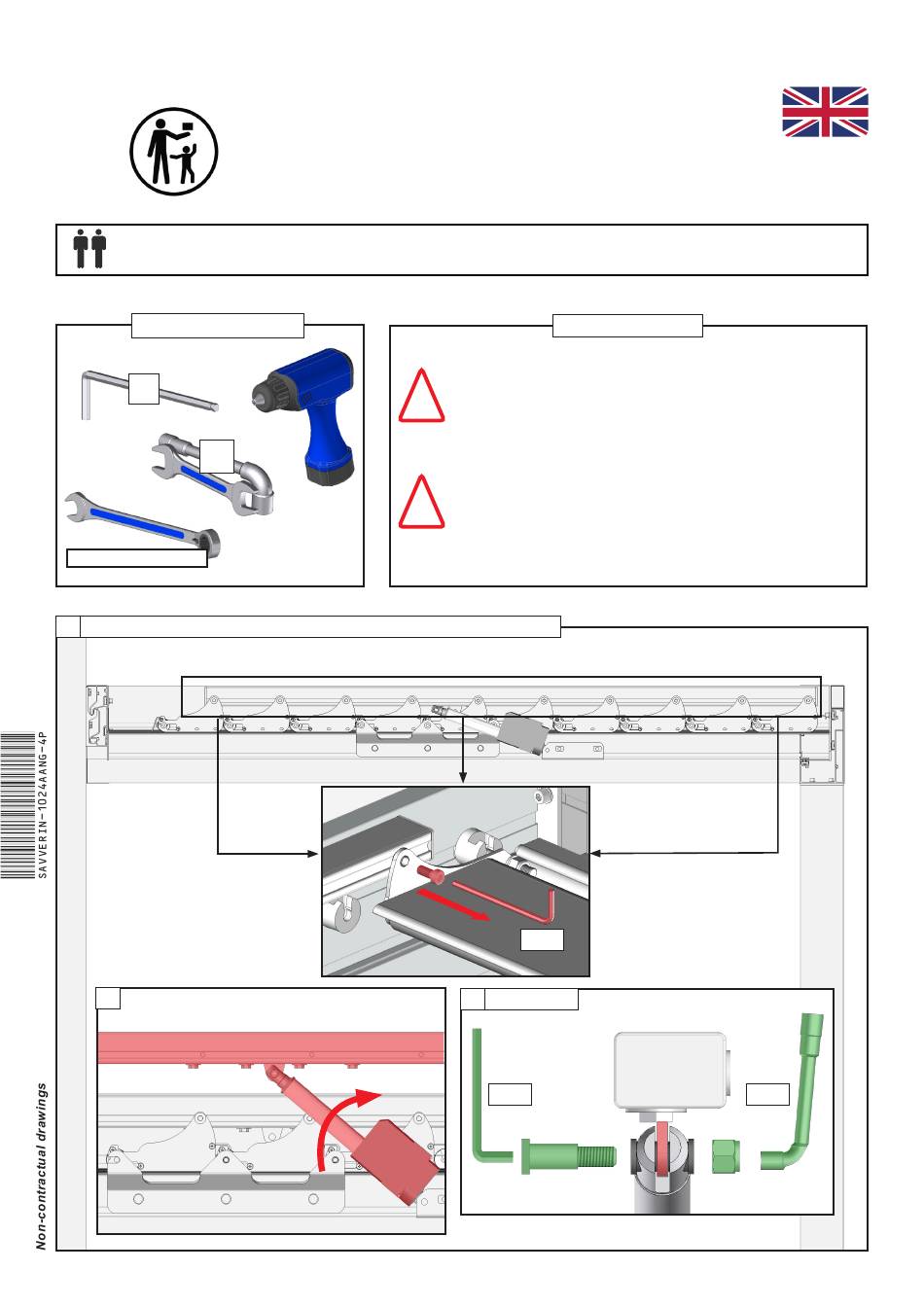

1
Remove the 2 operating profiles from the faulty cylinder.
B
Pergola Horizon 2 and 3
Cylinder replacement
PREPARING FOR INSTALLATION
!
!
IMPORTANT
ATTENTION,
make sure the power is off before
handling.
ATTENTION,
follow the instructions in the manual
carefully. Incorrect assembly may cause the product
to malfunction. The explanations are dedicated to the
example of the replacement of a cylinder mounted
on a left-hand support Rafter.
N°5
C
Dismantle.
N°13
VÉRIN
N°13
Advertisement
Related Manuals for MITJAVILA Horizon 2
Summary of Contents for MITJAVILA Horizon 2
- Page 1 VÉRIN Keep out of reach of children Pergola Horizon 2 and 3 Cylinder replacement PREPARING FOR INSTALLATION 2 people 1/2 day Tools required IMPORTANT ATTENTION, N°6 make sure the power is off before N°5 handling. N°13 ATTENTION, follow the instructions in the manual N°17...
- Page 2 Remove the 2 slats from the BSO4902. Remove the slat positioned after the jack. Remove the bracket. Unscrew. N°5...
- Page 3 Unscrew the jack screw completely. Remove the ring Remove the ring Clamp the cylinder Clamp the cylinder Remove the cylinder. Fit the replacement cylinder in its slot. Reassemble the dismantled components and program the cylinder, referring to the instructions supplied with the product.
- Page 4 VÉRIN Pergola Horizon 2 and 3 Cylinder replacement...
