MITJAVILA MONOBLOC AWNING Installation Instructions Manual

Winding direction
Important : Standard awning widths may vary by + or - 2%.
2 x Strap + Wooden trestles
ATTENTION! PLEASE READ THIS INSTALLATION MANUAL BEFORE USING AND INSTALLING THE PRODUCT. KEEP THESE INSTRUC-
TIONS FOR FUTURE REFERENCE.
- The installation of an awning must be carried out with care due to its constraints and requires a certain level of skill:
- Measuring and levelling the supports.
- Drilling the wall Installing chemical sealants or suitable fixings.
- Working at height and handling heavy loads.
- Electrical connection in the case of an electrically operated awning.
If you have any doubts about the correct and safe installation of your awning, call in a professional.
- Awning installation must be carried out according to the rules of the trade. A minimum of two people are needed, with personal pro-
tective equipment (PPE) and suitable materials. In the event of a problem, please consult a person qualified in this product for assis-
tance.
- Follow the safety instructions to prevent damage from incorrect use! Observe all warnings in the awning manual and on the awning
itself.
- This product presents a risk of falling and serious personal injury. All the assembly steps must be followed to the letter. If the
brackets are misaligned or incorrectly fitted, the awning may fall or break. It is important for personal safety to follow these instruc-
tions.
- An awning is naturally subject to very high mechanical stresses due to the large lever arm (or overhang) between the wall brackets
and the Front bar. An awning is not designed to withstand gusts of wind (even weak ones) and rain (pockets of water), which cause
heavy overloads on the structure. In the event of bad weather or when you are not using the awning, fold it up.
- If the awning weighs more than 25kg per person, use a suitable lifting tool.
- If the awning is more than 5m wide, an extra person should be positioned in the middle.
- Do not allow children to play with the controls. Keep remote control devices out of the reach of children.
- The electrical wires must be connected in accordance with the electrical standards in force in France (standard NF C 15100).
- Check that your wall is flat. If the wall is hollow or curved, shim the brackets so that they are correctly aligned. Incorrect align-
ment can cause the awning to malfunction, break or fall.
Staple your invoice and control sheet to the leaflet
Installation instructions
MONOBLOC AWNING
Minimum 2 people required.
Dimensions
!
4m x 3.5m
5m x 3.5m
6m x 3.5m
If the awning weighs more than 25kg per person, a suitable lifting device should be used.
If the awning is more than 5 m wide, an additional person should be positioned in the centre.

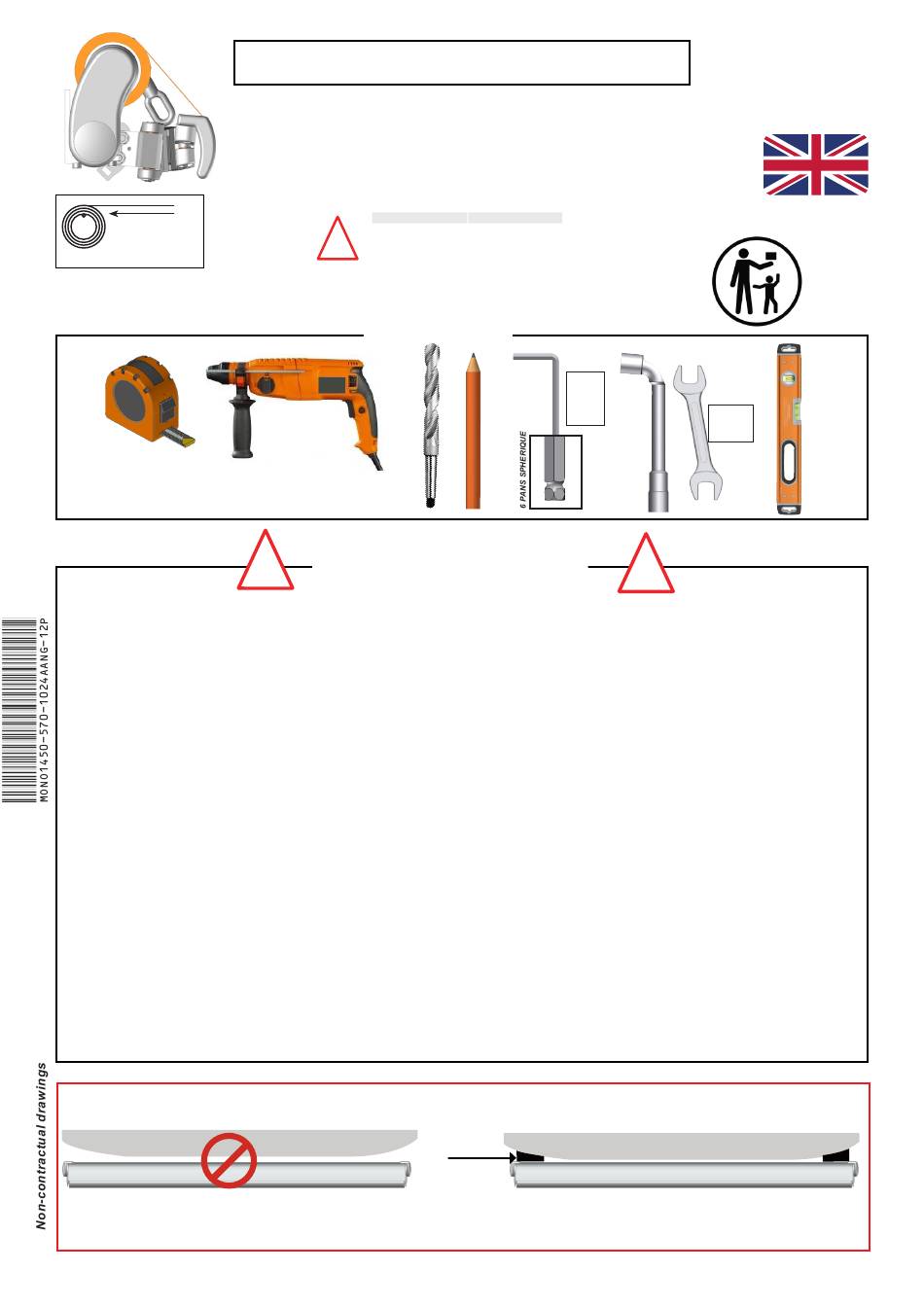

Tools required
!
ATTENTION
WEDGING WALL SUPPORTS
WALL
AWNING
Weight Awning
44 Kg
55 Kg
66 Kg
N°6
N°5
N°4
Support
wedge
M1450
M570
Keep out of reach of children
N°17
N°19
!
WALL
AWNING
