Satco NUVO TP247 Installation And Safety Instructions

SINGLE MONOPOINT ADAPTER
Models: TP247, TP248, TP249, TP250
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing fixture. Retain for future reference.
Mounts permanently to outlet box.
Allows any lampholder to 300W maximum
to be converted to canopy installation.
10 lbs max per socket, 100W max per
socket.
INSTALLATION:

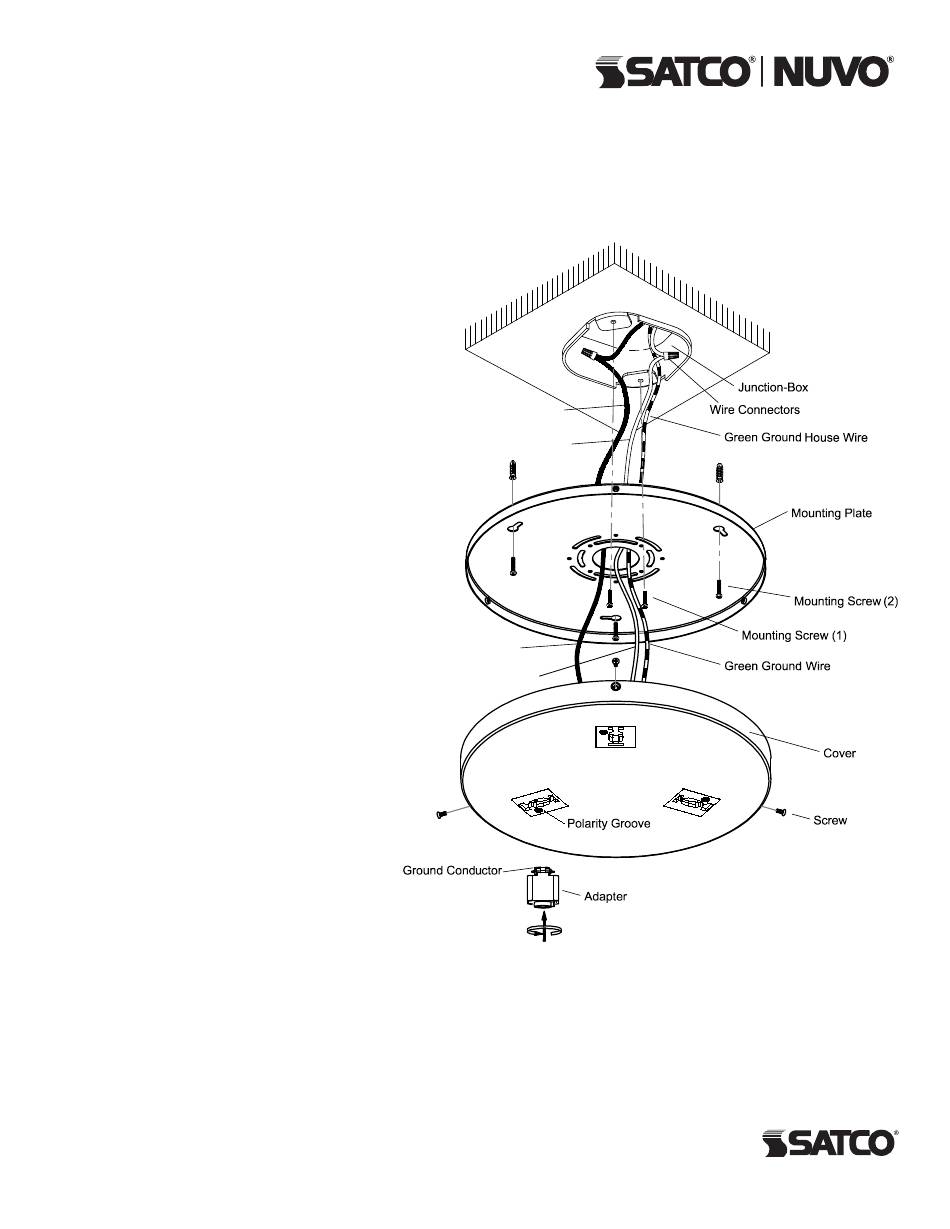

1. Attach Mounting Plate to Junction Box
with Mounting Screw (1) provided.
2. Install the Mounting Plate on the ceiling
with Mounting Screws (2).
3. Hold the cover and attach Black Fixture
Wire to Black House Wire, White Fixture
Wire to White House Wire, Green Ground
Wire to Green Ground House Wire. Secure
with wire connectors (provided).
4. Tuck the wires into the Junction Box.
5. Secure the Cover Plate to the Mounting
Plate with three screws.
INSTALL THE TRACK HEAD OR TRACK
PENDANT ADAPTER:
CAUTION: To reduce the risk of fire,
electrical shock or personal injury,
do not touch or remove the track head
when the light is on. Instead, turn off
the electrical power.
1. Insert the Adapter head into the slot of
Monopoint cover.
2. Pull down the sleeves and twist the Adapter
so that the Ground Conductor faces
the Polarity Groove, about 90 degrees
until mounting sleeves tab locks into the
Monopoint slot.
NOTE: Forcing mounting Adapter in
wrong direction may damage the contact
assembly. Ground Conductor on Adapter
must align with polarity groove on
Monopoint for proper installation.
REMOVE THE TRACK HEAD OR TRACK
PENDANT ADAPTER:
1. Pull down mounting Adapter sleeves
and twist the Adapter counter clockwise
90 degrees until Adapter is free from the
opening of Monopoint.
