Satco NUVO TP251 Installation And Safety Instructions

DOUBLE MONOPOINT ADAPTER
Models: TP251, TP252, TP253, TP254
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing fixture. Retain for future reference.
Mounts permanently to outlet box. Allows any lampholder to 300W maximum to be converted to
canopy installation. 10 lbs max per socket, 100W max per socket.

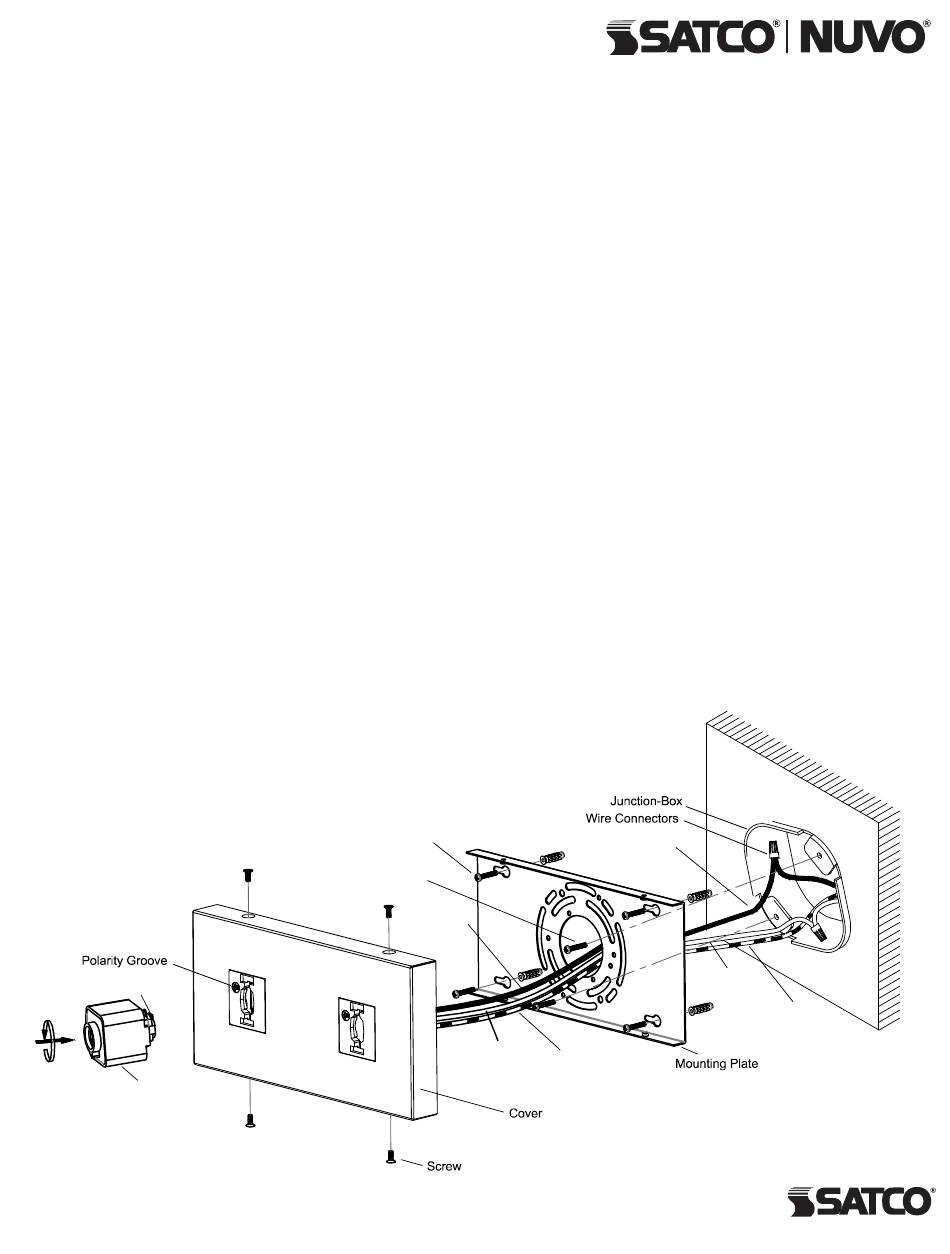

INSTALLATION:
1. Attach Mounting Plate to Junction Box with Mounting Screw (1) provided.
2. Install the Mounting Plate on the ceiling with Mounting Screws (2).
3. Hold the cover and attach Black Fixture Wire to Black House Wire, White Fixture Wire to White House Wire,
Green Ground Wire to Green Ground House Wire. Secure with wire connectors (provided).
4. Tuck the wires into the Junction Box.
5. Secure the Cover Plate to the Mounting Plate with four screws.
INSTALL THE TRACK HEAD OR TRACK PENDANT ADAPTER:
CAUTION: To reduce the risk of fire, electrical shock or personal injury, do not touch or remove
the track head when the light is on. Instead, turn off the electrical power.
1. Insert the Adapter head into the slot of Monopoint cover.
2. Pull down the sleeves and twist the Adapter clockwise about 90 degrees so that the Ground Conductor tab
faces the Polarity Groove until mounting sleeves tab locks into the Monopoint slot.
NOTE: Forcing mounting Adapter in wrong direction may damage the contact assembly. Ground Conductor
on Adapter must align with polarity groove on Monopoint for proper installation.
REMOVE THE TRACK HEAD:
1. Pull down mounting Adapter sleeves and twist the Adapter counter clockwise 90 degrees until Adapter is
free from the opening of Monopoint.
Ground Conductor
Adapter
© Copyright 2023 Satco Products, Inc. 11/23 v2.0
Mounting Screw (2)
Mounting Screw (1)
Black
Fixture Wire
White
Fixture Wire
Black House Wire
White
House Wire
Green
Ground Wire
Green Ground
House Wire
