Hidoes HD-B10 User Manual

Hide thumbs Also See for HD-B10:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

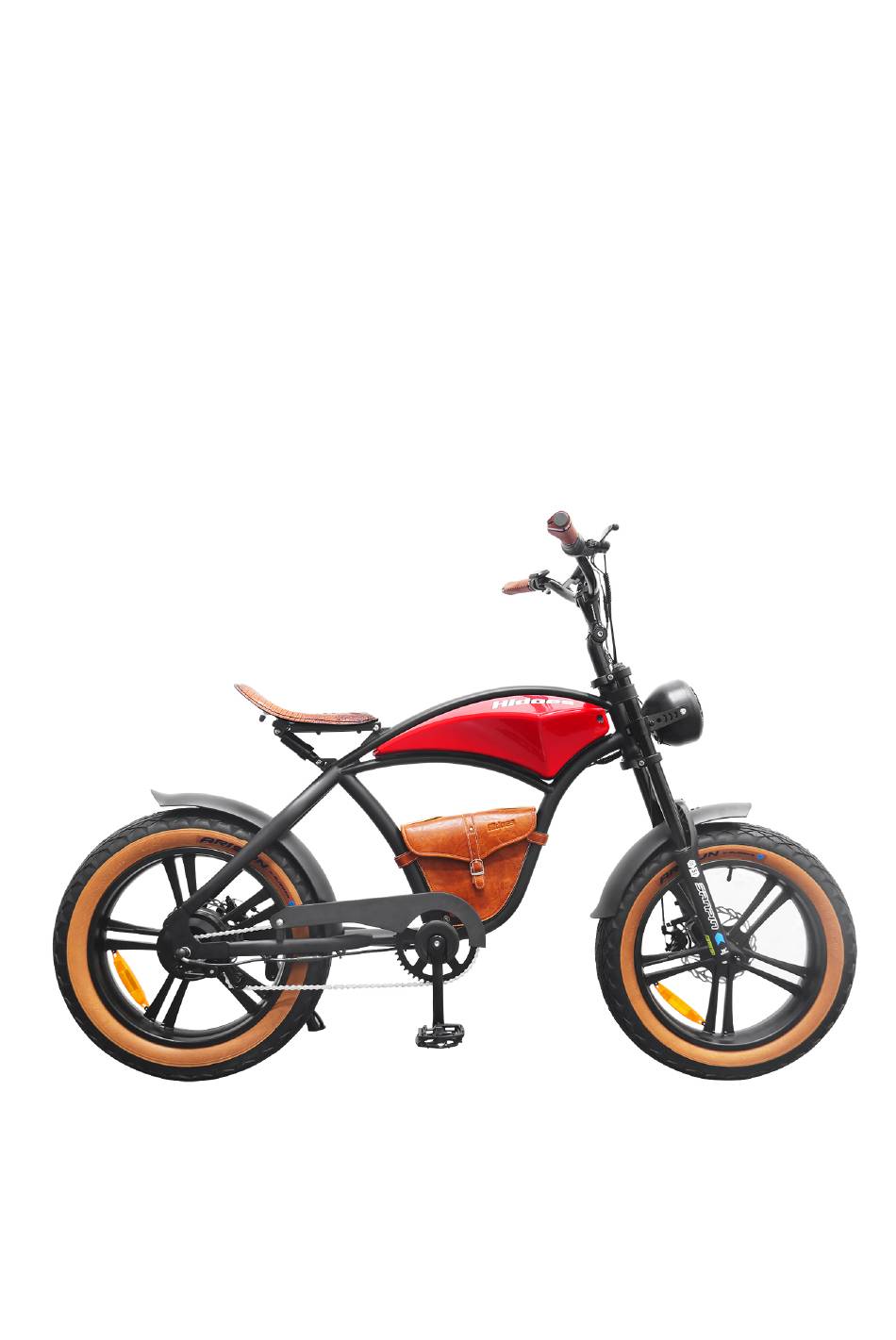

HD-B10
ELECTRIC BIKE
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-B10 and is the answer not in the manual?

Questions and answers

Related Manuals for Hidoes HD-B10

Summary of Contents for Hidoes HD-B10

  • Page 1 HD-B10 ELECTRIC BIKE USER MANUAL...

  • Page 2: Main Specification

    Main specification HD-B10 Parameter Weight 35kgs Type permanent magnet brushless DC motor Max load 150 kgs Max riding noise ≤ 55db 1000W Dimension 174*71*110cm Rated power Operating Temperature -20 - 45℃ Max speed 45km/h Distance per once charge 20-40 km...

  • Page 3: Battery Charging

    Operation and notice Fit the battery pack in the carrier,insert the key into the lock, then press the battery  pack upper lid down, turning clockwise 180degree, to assure the battery pack is locked then take the key out. When riding, turn on the power by key, (switch the key clockwise)the lights on ...
  • Page 4 Do not unpack the battery pack by yourself.  Do not connect the battery pack with electric power source directly.  Do not expose or put battery into the fire or heater.  Do not use metal to connect with the circuit of the battery pack. ...

  • Page 5: Maintenance

    Maintenance Before riding, should check the battery pack locked properly, and the lights are  workable. Regularly check the joint between bike and battery pack, en- sure it is kept dry  and clean. Check the tyres regularly to ensure that correct pressure is maintained. When ...
  • Page 6 Circuit diagram and Trouble shooting chart...
  • Page 7 trouble Cause Solution After tun on the power  The battery is dead.  Charging the battery. switch, the power light is  The plug or socket on  Insert the plug or socket not on and Can’t start the battery pack or bike is loose .

  • Page 8: Important Declaration

    Important Declaration All photos and charts on this manual book are just for your refere nce, not act as  inspection standard. To improve our products, we keep authority to change some specifications  without notice in advance.
  • Page 9 Serial number Model Invoice Number Battery serial number Name Distributor Contact Note: Shenzhen Tianshengle Robot Co., Ltd. Address: Room505/5F, Building 1, Liuwei Business Center, NO.5, Longjing Community Yangmei industrial park, Bantian street, Longgang district, Shenzhen, China WhatsApp: +8613612953725 Customer support: support@hidoes.com...
