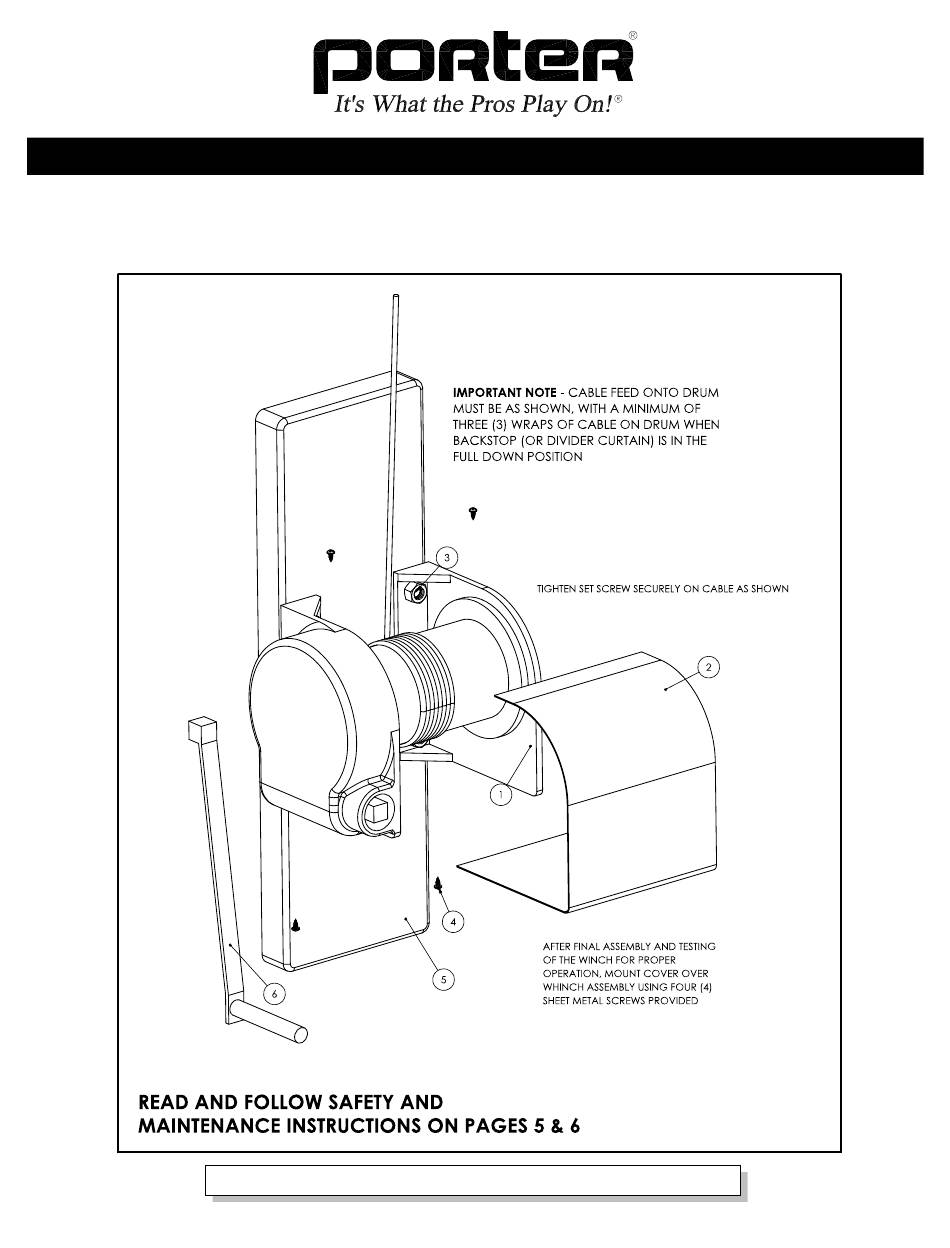

- Page 1 & M NSTALLATION PERATION AINTENANCE ANUAL ANUAL INCH No. 700-100 SAVE THESE INSTRUCTIONS FOR FUTURE USE INST 00045 032 © 2025 PORTER ATHLETIC, INC. ALL RIGHTS RESERVED. 3/18/2025...
- Page 2 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ATTEMPTING TO ASSEMBLE THIS EQUIPMENT. PARTS LIST – No. 700-100 MANUAL WINCH Item # Quantity Description WINCH ASSEMBLY WINCH COVER CARRIAGE BOLT W/ LOCK WASHER AND NUT SHEET METAL SCREWS ” x 7” x2’ L WOOD PAD...
- Page 3 (not shown). 9 1 2 " Detail "C" EXISTING WALL (THRU-BOLT) EXISTING WALL (ANCHORS) DURING CONSTRUCTION GALVANIZED WOOD PAD GALVANIZED BUILDING (BY PORTER) BUILDING WASHER WASHER RAWL MASONRY ANCHORS 1/2" 1/2" 2 1 2 " 2 1 2 "...
- Page 4 SECURE CABLE TO WINCH DRUM 4. Route end of cable through hole in the winch drum and secure with set screw. Note that cable must be taped before cutting to prevent the cable end from fraying. Be sure to route cable in the UNDERWIND direction as detailed on Page 1. THERE MUST BE A MINIMUM OF THREE (3) WRAPS OF CABLE ON THE DRUM WITH THE BACKSTOP IN THE "DOWN"...
- Page 5 MANUAL WINCH LOCATION IN DETERMINING THE EXACT MANUAL WINCH LOCATION, IDEALLY THE ARCHITECT OR OWNER SHOULD DETERMINE, PROVIDED IT IS IN FULL VIEW OF THE UNIT IT IS OPERATING. STRUCTURAL MEMBERS, LIGHTS, DUCTS, DRAIN PIPES, ETC., ARE POTENTIAL OBSTACLES OF THE CABLE TRAVEL REQUIRED. ALSO, EXTENSIVE CABLE TRAVEL WILL REQUIRE ADDITIONAL IDLER PULLEYS TO SUPPORT THE CABLE RUN.
- Page 7 9. It is highly recommended that a safety strap mechanism be used on any backstop or divider curtain that operates over a spectator bleacher. Consult factory or your local Porter dealer for details, if this unit was not included on the original installation.
-
Page 8: Maintenance
MAINTENANCE Inspect this winch every three to four months. Check the gears for excessive wear or binding. Replace worn or defective parts as necessary. Lubricate gears liberally, with Pyroshield #5182 grease. THIS WARNING IS GIVEN IN COMPLIANCE WITH CALIFORNIA’S PROPOSITION 65: WARNING This product contains chemicals known to the State of California to cause cancer, birth defects...
