I
, O
& M
M
NSTALLATION
PERATION
AINTENANCE
ANUAL
M
W
ANUAL
INCH
No. 00700-000

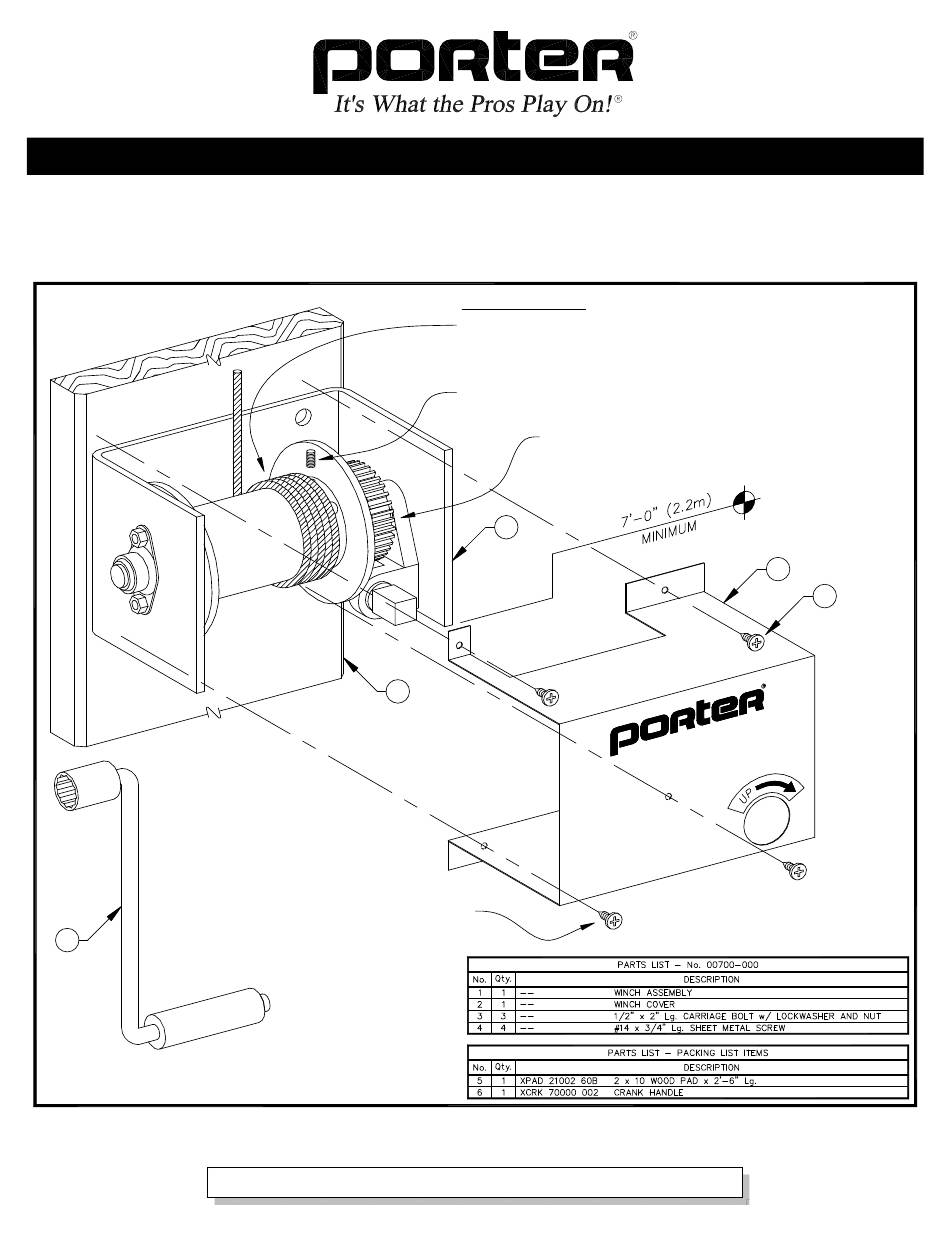

IMPORTANT NOTE - CABLE FEED ONTO DRUM MUST BE AS
SHOWN, WITH A MINIMUM OF THREE (3) WRAPS OF CABLE ON
DRUM WHEN BACKSTOP (OR DIVIDER CURTAIN) IS IN THE
FULL DOWN POSITION
TIGHTEN SET SCREW SECURELY ON CABLE AS SHOWN
REFER TO MAINTENANCE REQUIREMENTS ON PAGE 6
1
2
4
5
READ AND FOLLOW
SAFETY AND MAINTENANCE
INSTRUCTIONS ON PAGES 5 & 6
AFTER FINAL ASSEMBLY AND TESTING OF
WINCH FOR PROPER OPERATION, MOUNT
COVER OVER WINCH ASSEMBLY AND
SECURE TO WOOD PAD USING FOUR (4)
6
SHEET METAL SCREWS PROVIDED
SAVE THESE INSTRUCTIONS FOR FUTURE USE
INST 00045 032
2015 PORTER ATHLETIC, INC. ALL RIGHTS RESERVED.
5-27-2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Porter 00700-000
Summary of Contents for Porter 00700-000
- Page 1 AFTER FINAL ASSEMBLY AND TESTING OF WINCH FOR PROPER OPERATION, MOUNT COVER OVER WINCH ASSEMBLY AND SECURE TO WOOD PAD USING FOUR (4) SHEET METAL SCREWS PROVIDED SAVE THESE INSTRUCTIONS FOR FUTURE USE INST 00045 032 2015 PORTER ATHLETIC, INC. ALL RIGHTS RESERVED. 5-27-2015...
- Page 2 WARNING READ ALL INSTRUCTIONS THOROUGHLY BEFORE ATTEMPTING TO ASSEMBLE THIS EQUIPMENT. PARTS LIST – No. 00700-000 MANUAL WINCH Item Item No. Qty. Description No. Qty. Description Winch Assembly 1/2" x 2" lg. Carriage Bolt w/ Lockwasher & Nut Winch Cover #14 x 3/4"...
- Page 3 5. As an alternate, the winch can be mounted to the face of a steel column (not shown). Detail "C" EXISTING WALL (THRU-BOLT) EXISTING WALL (ANCHORS) DURING CONSTRUCTION GALVANIZED WOOD PAD GALVANIZED BUILDING (BY PORTER) BUILDING WASHER WASHER RAWL MASONRY ANCHORS 1/2" 1/2" 2 1 2 "...
- Page 4 SECURE CABLE TO WINCH DRUM 6. Route end of cable through hole in the winch drum and secure with set screw. Note that cable must be taped before cutting to prevent the cable end from fraying. Be sure to route cable in the UNDERWIND direction as detailed on Page 1. THERE MUST BE A MINIMUM OF THREE (3) WRAPS OF CABLE ON THE DRUM WITH THE BACKSTOP IN THE "DOWN"...
- Page 5 MANUAL WINCH LOCATION ...
- Page 6 MANUAL WINCH LOADING DIAGRAM...
- Page 7 9. It is highly recommended that a safety strap mechanism be used on any backstop or divider curtain that operates over a spectator bleacher. Consult factory or your local Porter dealer for details, if this unit was not included on the original installation.
- Page 8 MAINTENANCE Inspect this winch every three to four months. Check the gears for excessive wear or binding. Replace worn or defective parts as necessary. Lubricate gears liberally, with Pyroshield #5182 grease. THIS WARNING IS GIVEN IN COMPLIANCE WITH CALIFORNIA’S PROPOSITION 65: WARNING This product contains chemicals known to the State of California to cause cancer, birth defects...
