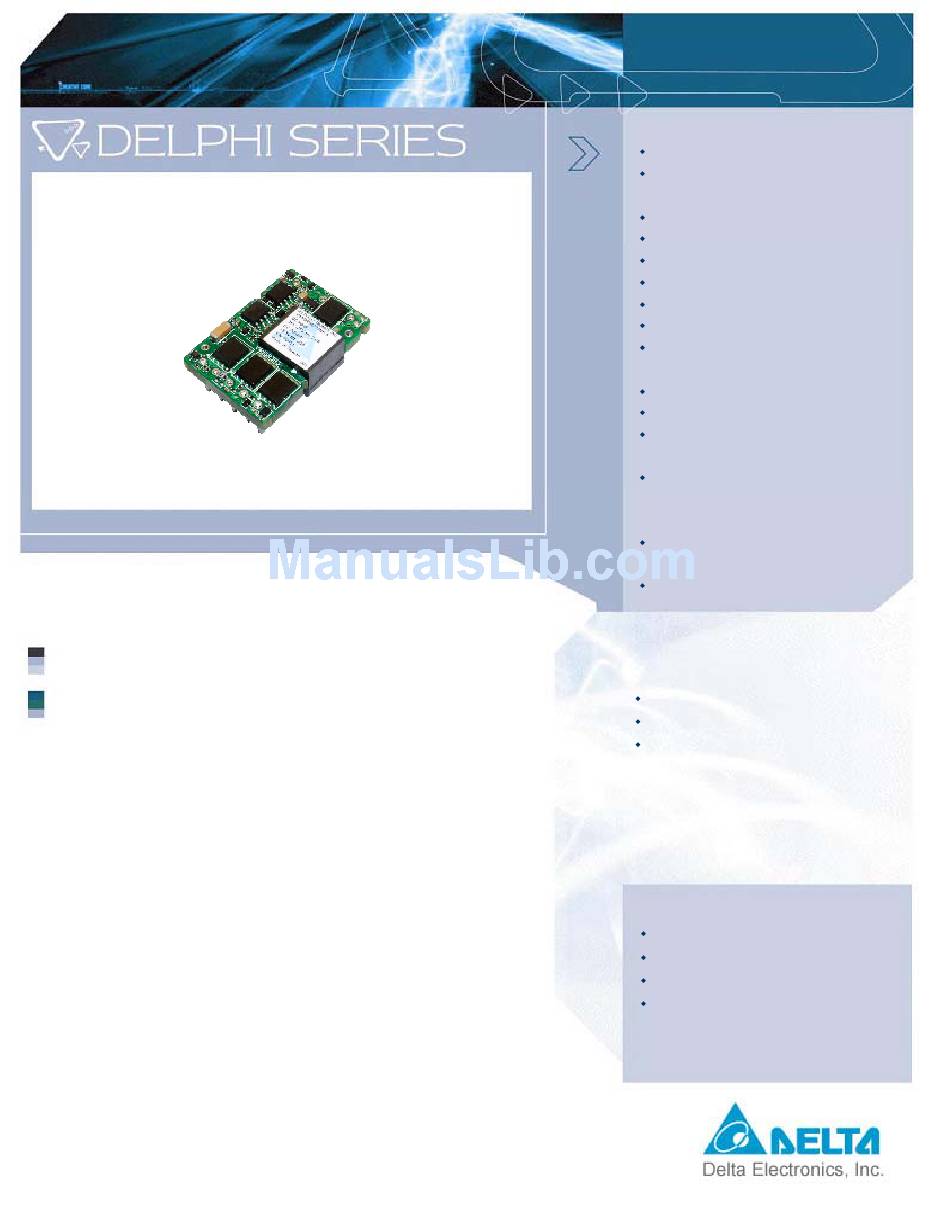

Delphi Series V48SR, 1/16
DC/DC Power Modules: 48V in, 15V, 4.4A out
The Delphi Series V48SR, 1/16
DC/DC converter, is the latest offering from a world leader in power
systems technology and manufacturing ― Delta Electronics, Inc. This
product family provides up to 66 watts of power or 25A of output current
(1.8V and below) in an industry standard 1/16
0.90"). The 15V output offers one of the highest output currents available
and provides up to 90.5% efficiency at full load. With creative design
technology and optimization of component placement, these converters
possess outstanding electrical and thermal performance, as well as
extremely high reliability under highly stressful operating conditions. All
modules are protected from abnormal input/output voltage, current, and
temperature conditions. For lower power needs with the 15V output, but
in a similar small form factor, please check out Delta S48SP (36W or
15V/2.3A) and S48SE (17W or 15V/1A) series standard DC/DC modules.
DATASHEET
DS_V48SR15004_06122007
th
Brick 66W
th
Brick, 48V input, single output, isolated
th
brick form factor (1.30" x
FEATURES
High efficiency: 90.5% @ 15V/4.4A
Size: 33.0 x 22.9 x 9.5 mm
(1.30"x0.90"x0.37")
Industry standard footprint and pinout
Fixed frequency operation
SMD and through-hole versions
Input UVLO and OVP
OTP and output OCP, OVP
Output voltage trim:
-15%,
Monotonic startup into normal and
pre-biased loads
2250V isolation and basic insulation
No minimum load required
No negative current during power or
enable on/off
ISO 9001, TL 9000, ISO 14001, QS 9000,
OHSAS18001 certified manufacturing
facility
UL/cUL 60950 (US & Canada)
recognized, and TUV (EN60950) certified
CE mark meets 73/23/EEC and
93/68/EEC directive
OPTIONS
SMD pins
Positive remote On/Off
OTP and output OVP, OCP mode
(auto-restart or latch)
APPLICATIONS
Optical Transport
Data Networking
Communications
Servers
+10%

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delphi Series V48SR and is the answer not in the manual?

Questions and answers

Related Manuals for Delta Electronics Delphi Series V48SR

Summary of Contents for Delta Electronics Delphi Series V48SR

  • Page 1 Brick, 48V input, single output, isolated DC/DC converter, is the latest offering from a world leader in power systems technology and manufacturing ― Delta Electronics, Inc. This product family provides up to 66 watts of power or 25A of output current (1.8V and below) in an industry standard 1/16...

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS =25°C, airflow rate=300 LFM, V =48Vdc, nominal Vout unless otherwise noted.) PARAMETER ABSOLUTE MAXIMUM RATINGS Input Voltage Continuous Transient (100ms) Operating Temperature Storage Temperature Input/Output Isolation Voltage INPUT CHARACTERISTICS Operating Input Voltage Input Under-Voltage Lockout Turn-On Voltage Threshold Turn-Off Voltage Threshold Lockout Hysteresis Voltage Maximum Input Current...
  • Page 3 ELECTRICAL CHARACTERISTICS CURVES Figure 1: Efficiency vs. load current for minimum, nominal, and maximum input voltage at 25°C Figure 3: Typical full load input characteristics at room temperature DS_V48SR15004_06122007 Figure 2: Power dissipation vs. load current for minimum, nominal, and maximum input voltage at 25°C.
  • Page 4 ELECTRICAL CHARACTERISTICS CURVES For Negative Remote On/Off Logic Figure 4: Turn-on transient at full rated load current (resistive load) (5 ms/div). Vin=48V. Top Trace: Vout, 5.0V/div; Bottom Trace: ON/OFF input, 2V/div For Positive Remote On/Off Logic Figure 6: Turn-on transient at full rated load current (resistive load) (5 ms/div).
  • Page 5 ELECTRICAL CHARACTERISTICS CURVES Figure 10: Test set-up diagram showing measurement points for Input Terminal Ripple Current and Input Reflected Ripple Current. Note: Measured input reflected-ripple current with a simulated source Inductance (L ) of 12 µH. Capacitor Cs offset TEST possible battery impedance.

  • Page 6: Design Considerations

    DESIGN CONSIDERATIONS Input Source Impedance The impedance of the input source connecting to the DC/DC power modules will interact with the modules and affect the stability. A low ac-impedance input source is recommended. If the source inductance is more than a few µH, we advise adding a 10 to 100 µF electrolytic capacitor (ESR <...
  • Page 7 DESIGN CONSIDERATIONS Safety Considerations The power module must be installed in compliance with the spacing and separation requirements of the end-user’s safety agency standard, i.e., UL60950, CAN/CSA-C22.2 No. 60950-00 and EN60950: 2000 and IEC60950-1999, if the system in which the power module is to be used must meet safety agency requirements.

  • Page 8: Features Descriptions

    FEATURES DESCRIPTIONS Over-Current Protection The modules include an internal output over-current protection circuit, which will endure current limiting for an unlimited duration during output overload. If the output current exceeds the OCP set point, the modules will automatically shut down, and enter hiccup mode or latch mode, which is optional.
  • Page 9 FEATURES DESCRIPTIONS (CON.) When using remote sense and trim, the output voltage of the module is usually increased, which increases the power output of the module with the same output current. Care should be taken to ensure that the maximum output power does not exceed the maximum rated power.

  • Page 10: Thermal Considerations

    THERMAL CONSIDERATIONS Thermal management is an important part of the system design. To ensure proper, reliable operation, sufficient cooling of the power module is needed over the entire temperature range of the module. Convection cooling is usually the dominant mode of heat transfer. Hence, the choice of equipment to characterize the thermal performance of the power module is a wind tunnel.
  • Page 11 PICK AND PLACE LOCATION RECOMMENDED PAD LAYOUT (SMD) SURFACE-MOUNT TAPE & REEL DS_V48SR15004_06122007...
  • Page 12 LEADED (Sn/Pb) PROCESS RECOMMEND TEMP. PROFILE Pre-heat temp. 140~180°C 60~120 sec. Ramp-up temp. 0.5~3.0°C /sec. Time ( sec. ) Note: The temperature refers to the pin of V48SR, measured on the pin +Vout joint. LEAD FREE (SAC) PROCESS RECOMMEND TEMP. PROFILE Temp Peak Temp.

  • Page 13: Mechanical Drawing

    MECHANICAL DRAWING Surface-mount module Pin No. Name +Vin ON/OFF -Vin -Vout -SENSE TRIM +SENSE +Vout DS_V48SR15004_06122007 Through-hole module Function Positive input voltage Remote ON/OFF Negative input voltage Negative output voltage Negative remote sense Output voltage trim Positive remote sense Positive output voltage...

  • Page 14: Part Numbering System

    PART NUMBERING SYSTEM Type of Input Number of Product Product Voltage Outputs Series V - 1/16 S - Single R - Regular brick MODEL LIST MODEL NAME V48SR1R225NRFA 36V~75V V48SR1R525NRFA 36V~75V V48SR1R825NRFA 36V~75V V48SR2R520NRFA 36V~75V V48SR3R320NRFA 36V~75V V48SR05013NRFA 36V~75V V48SR12005NRFA 36V~75V V48SR15004NRFA 36V~75V...
