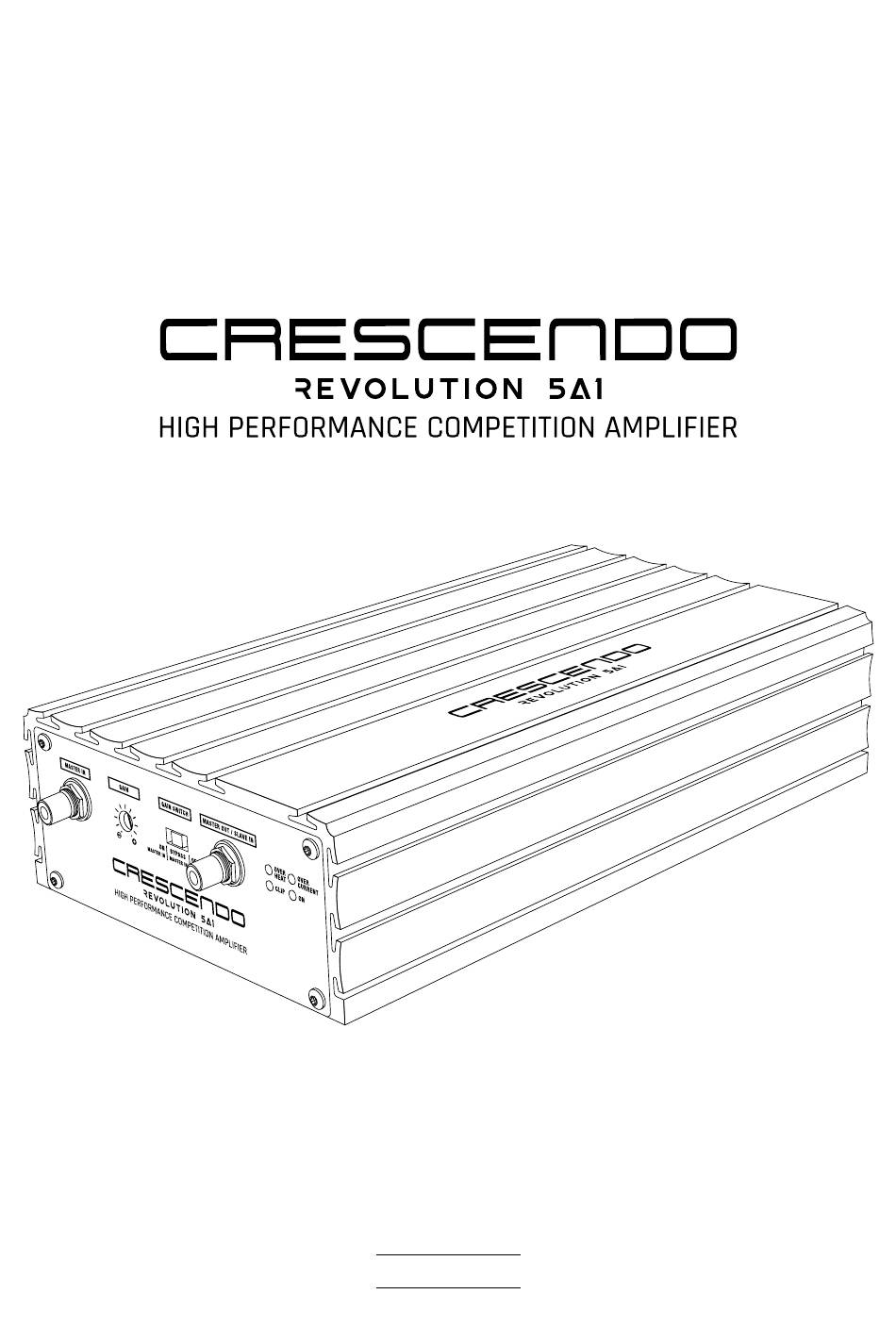

- Page 1 USER MANUAL ENGLISH...
-
Page 2: Table Of Contents
‘true audio quality’ products. In order to obtain the best performance, we recommend that the product installation be carried out by an authorized CRESCENDO dealer or a professional car audio installer. Problems caused by failure to follow the guidelines outlined in the user manual can invalidate the product warranty. -
Page 3: Safety Instructions
ظDo not fully cover the amplifier without proper cooling, as this may cause overheating or trigger the amplifier’s protection mode, ultimately reducing its longevity. ظOnly use the CRESCENDO REVOLUTION 5A1 with a 12 Volt battery source or power supply. ظUse a fuse with the appropriate amperage. Incorrect fuse... - Page 4 ENGLISH ظUse the correct cable type. Incorrect cable selection may cause fire, injury, and damage. ظThe ground wire must be installed first, followed by the other cables, including the RCA cable. Sequencing errors may cause damage to the ground line of the sound source (head unit). ...
-
Page 5: Product Feature
ENGLISH PRODUCT FEATURE Input RCA as MASTER 9. Positive Output 2. Gain Adjustment 10. Positive Output 3. Gain Option 11. Negative Output 4. Output RCA as MASTER or 12. Negative Output Input RCA as SLAVE 13. Fuse 1 5. Over Heat Indicator 14. - Page 6 ENGLISH PRODUCT FEATURE 18. Speaker Impedance Selector...
-
Page 7: Required For Installation
ENGLISH REQUIRED FOR INSTALLATION ظVolt and resistance meter ظHand held drills including assorted bits ظBattery terminal post wrench ظSoldering iron and solder ظWire strippers and cutters ظFuse holder and appropriate fuse ظRing connectors for negative cable connection to chassis ground ... -
Page 8: Mounting Locations
4. Avoid carrying out installations that require modifications that could lead to malfunctioning operations. 5. Under no circumstances should you attempt to open the amplifier. Refer any service or repair work to qualified personnel authorized by CRESCENDO. MOUNTING LOCATIONS Trunk Mounting To ensure optimal operating temperatures, it is recommended to install the amplifier on the trunk floor. -
Page 9: Amplifier Mounting
ENGLISH AMPLIFIER MOUNTING When determining the installation location, please keep in mind that the amplifier generates heat. Therefore, choose a location where air can flow freely around the amplifier. Do not cover the amplifier with materials such as carpet, acrylic, or hide it behind car panels/compartments. -
Page 10: Fuse
The negative power cable or ground cable is equally important as the positive power cord, so both cables should be of the same size. The recommended power cord size for the REVOLUTION 5A1 is 4 AWG (21 mm ). This is the largest size that the CRESCENDO REVOLUTION 5A1 amplifier can accomodate. - Page 11 ENGLISH POWER CONNECTIONS NEGATIVE POWER CABLE 4 AWG CHASSIS GROUND 12 VOLT BATTERY MAXIMUM 40 cm FUSE 100 A POSITIVE POWER CABLE 4 AWG NEGATIVE POWER CABLE 4 AWG CHASSIS GROUND FUSE 100 A MAXIMUM 40 cm Figure 2...
- Page 12 ENGLISH POWER CONNECTIONS NEGATIVE POWER CABLE 4 AWG CHASSIS GROUND 12 VOLT BATTERY MAXIMUM 40 cm FUSE 100 A POSITIVE POWER CABLE 4 AWG NEGATIVE POWER CABLE 4 AWG CHASSIS GROUND FUSE 100 A MAXIMUM 40 cm FUSE 100 A 12 VOLT BATTERY NEGATIVE POWER CABLE 4 AWG CHASSIS GROUND...
-
Page 13: Rca Input Connections
ENGLISH RCA INPUT CONNECTIONS The CRESCENDO REVOLUTION 5A1 amplifier only accepts unbalanced (RCA) low level signals from digital media players, compact disc players or digital signal processors. High performance cables from Harmonic Harmony brand are recommended. WARNING: Do not dis-connect or re-connect the RCA cable while the amplifier is active (ON). -
Page 14: Led Indicator (On)
ENGLISH LED INDICATOR (ON) The LED will illuminate when the amplifier is working normally. Refer to Figure 4. LED INDICATOR SAFETY (FAULT) The OVER HEAT LED will light up if the amplifier temperature is above 80 degree Celcius. The OVER CURRENT LED will light up if the amplifier draws too much current due to improper speaker impedance selection. -
Page 15: Wiring Illustration
Gain for both amplifier can be controlled from Digital Signal Processor (DSP). Refer to Figure 10. 7. 2 units of the CRESCENDO REVOLUTION 5A1 is connected to 1 double voice coil subwoofer with 1 Ohm impedance in MASTER and SLAVE configuration. Gain adjustment at MASTER and SLAVE amplifier is set to de-activate for sound optimization. - Page 16 ENGLISH WIRING ILLUSTRATION 1 GAIN SELECTOR POSITION SOUND SOURCE RCA SIGNAL REMOTE CABLE IMPEDANCE SELECTOR POSITION SUBWOOFER POSITIVE NEGATIVE OR SPEAKER POWER CABLE POWER CABLE 4 Ohm CHASSIS GROUND FUSE NEGATIVE POWER CABLE BATTERY 12 Volt Figure 5...
- Page 17 ENGLISH WIRING ILLUSTRATION 2 GAIN SELECTOR POSITION SOUND SOURCE RCA SIGNAL REMOTE CABLE IMPEDANCE SELECTOR POSITION SUBWOOFER POSITIVE NEGATIVE OR SPEAKER POWER CABLE POWER CABLE 2 Ohm CHASSIS GROUND FUSE NEGATIVE POWER CABLE BATTERY 12 Volt Figure 6...
- Page 18 ENGLISH WIRING ILLUSTRATION 3 GAIN SELECTOR POSITION SOUND SOURCE RCA SIGNAL REMOTE CABLE IMPEDANCE SELECTOR POSITION SUBWOOFER POSITIVE NEGATIVE OR SPEAKER POWER CABLE POWER CABLE 1 Ohm CHASSIS GROUND FUSE NEGATIVE POWER CABLE BATTERY 12 Volt Figure 7...
- Page 19 ENGLISH WIRING ILLUSTRATION 4 GAIN ADJUSTMENT IS DE-ACTIVATED SOUND SOURCE RCA SIGNAL REMOTE CABLE IMPEDANCE SELECTOR POSITION SUBWOOFER POSITIVE NEGATIVE OR SPEAKER POWER CABLE POWER CABLE 1 Ohm CHASSIS GROUND FUSE NEGATIVE POWER CABLE BATTERY 12 Volt Figure 8...
- Page 20 ENGLISH WIRING ILLUSTRATION 5 SLAVE GAIN FOLLOWS MASTER MASTER RCA SIGNAL SINGLE GAIN CONTROL RCA SIGNAL SOUND SOURCE REMOTE CABLE IMPEDANCE SELECTOR POSITION SLAVE MASTER SUBWOOFER POSITIVE NEGATIVE OR SPEAKER POWER CABLE POWER CABLE 1 Ohm CHASSIS GROUND FUSE NEGATIVE POWER CABLE BATTERY 12 Volt Figure 9...
- Page 21 ENGLISH WIRING ILLUSTRATION 6 SLAVE GAIN CONTROL IS DE-ACTIVATED MASTER RCA SIGNAL GAIN CONTROL IS DE-ACTIVATED RCA SIGNAL SOUND SOURCE REMOTE CABLE IMPEDANCE SELECTOR POSITION SLAVE MASTER SUBWOOFER POSITIVE NEGATIVE OR SPEAKER POWER CABLE POWER CABLE 1 Ohm CHASSIS GROUND FUSE NEGATIVE POWER CABLE...
- Page 22 ENGLISH WIRING ILLUSTRATION 7 SLAVE GAIN CONTROL IS DE-ACTIVATED MASTER RCA SIGNAL GAIN CONTROL IS DE-ACTIVATED RCA SIGNAL SOUND SOURCE REMOTE CABLE IMPEDANCE SELECTOR POSITION SLAVE MASTER SUBWOOFER POSITIVE NEGATIVE OR SPEAKER POWER CABLE POWER CABLE 1 Ohm CHASSIS GROUND FUSE NEGATIVE POWER CABLE...
-
Page 23: Speaker Wiring Connection
ENGLISH SPEAKER WIRING CONNECTION ILLUSTRATION PARALLEL 2 VOICE COIL IN PARALLEL 4 Ohm 2 Ohm 2 Ohm 4 Ohm 4 Ohm 4 Ohm 2 Ohm 1 Ohm 2 Ohm SERIES 2 VOICE COIL IN SERIES 2 Ohm 4 Ohm 4 Ohm 2 Ohm 2 Ohm 2 Ohm... -
Page 24: Specification
ENGLISH SPECIFICATION Product Name Crescendo Revolution 5A1 Product Type Power Amplifier Weight 2.3 kg Dimensions 27 cm x 15 cm x 6 cm Cosmetic Appearance Brushed Grey Amplifier Design Class AB Number of Channel Power at 4 Ω Mono (14.4 V) 450 W per Channel Power at 2 Ω... -
Page 25: Troubleshooting
Ensure that the loudspeaker impedance does not fall below the minimum load requirements of the amplifier (1 Ohm for CRESCENDO REVOLUTION 5A1) Over current indicator a. Ensure the speaker impedance selector LED lights up matches the actual loudspeaker impedance b. - Page 26 ENGLISH TROUBLESHOOTING Sound is not present a. Check the RCA output of the sound source and sensitivity control of the amplifier b. Carefully inspect the RCA cable connection c. Verify the speaker cables and their termination on both the amplifier and loudspeaker Very low sound volume a.
- Page 27 Check for any short circuit between the speaker cable and the chassis ground and make sure there is none If the issue remains unresolved or is not addressed in this troubleshooting guide, please reach out to an authorized CRESCENDO distributor or dealer for further assistance.
- Page 28 PT AUDIO PLUS INDONESIA Business Park Blok E2 No. 15 Jl. Meruya Ilir 88 Jakarta Barat - Indonesia 11620 +62 21 3006 1522 www.crescendo-caraudio.com...
