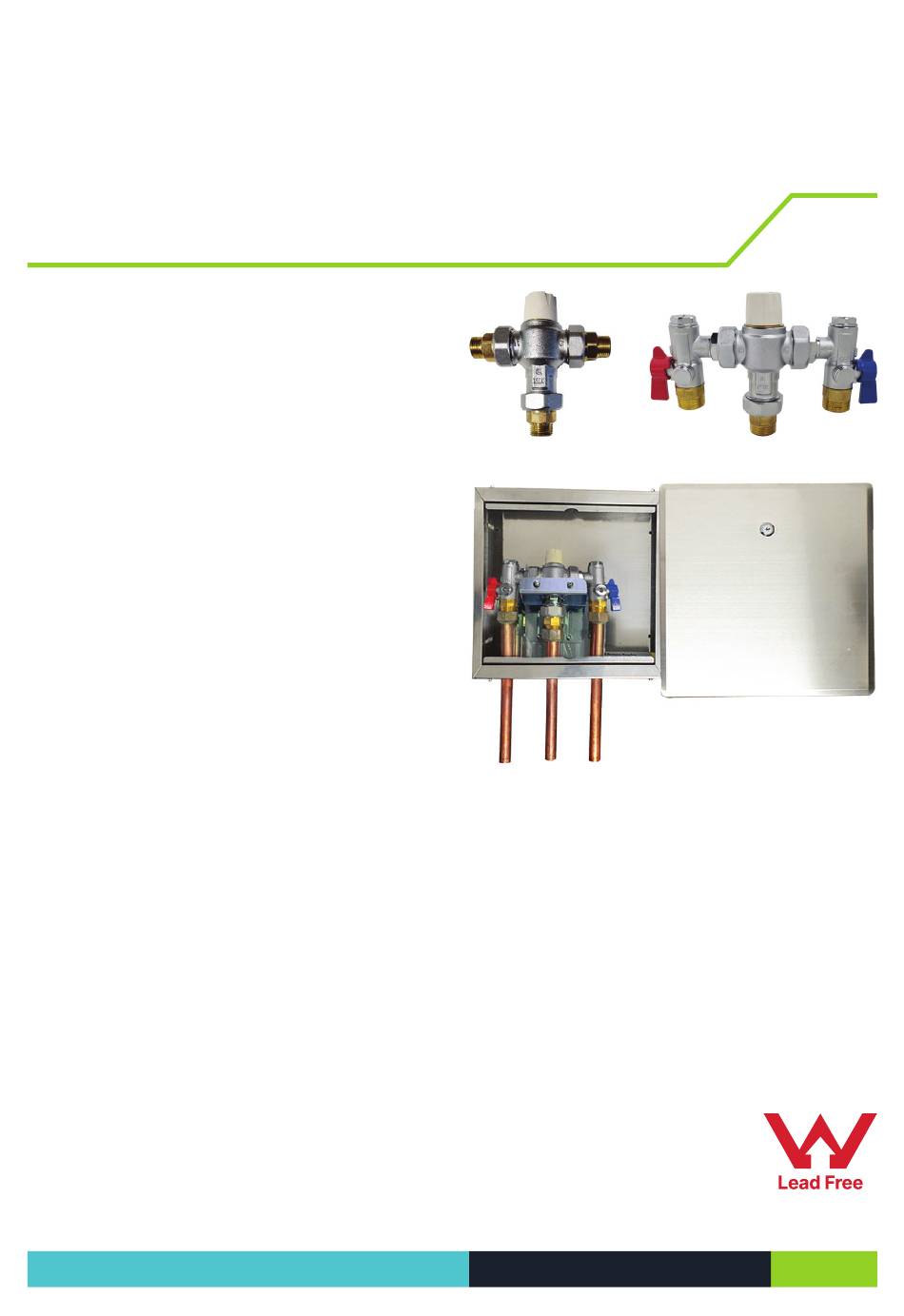

USER MANUAL
FLOMIX Lead Free
Thermostatic Mixing Valve
•
-
MVLF5015
NSW Health Approved
Thermostatic Mixing Valve Lead Free DZR
Brass Chrome Plated w/ Strainers and
Non Return Valves
•
MVLF6015 - NSW Health Approved
Thermostatic Mixing Valve Lead Free
DZR Brass Chrome Plated w/ Strainers,
Isolation and Non Return Valves
•
MVLF60153 - NSW Health Approved
Thermostatic Mixing Valve Lead Free DZR
Brass Chrome Plated w/ Stainless Steel
Recessed Enclosure with Lockable Lid
and Copper Tails
•
MVLF60153H - NSW Health Approved
Thermostatic Mixing Valve Lead Free
DZR Brass Chrome Plated w/ Stainless
Steel Recessed Enclosure with Hinged
Lockable Lid and Copper Tails
•
MVLF60154 - NSW Health Approved
Thermostatic Mixing Valve Lead Free
DZR Brass Chrome Plated w/ Cold
Water Bypass, Stainless Steel Recessed
Enclosure with Recessed Lockable Lid
and Copper Tails
•
MVLF60154H - NSW Health Approved
Thermostatic Mixing Valve Lead Free
DZR Brass Chrome Plated w/ Cold
Water Bypass, Stainless Steel Recessed
Enclosure with Hinged Lockable Lid and
Copper Tails
•
MVLF60153BAC- NSW Health Approved
Thermostatic Mixing Valve Lead Free
DZR Brass Chrome Plated w/ Copper
Tails, Stainless Steel Enclosure and
Temperature Probe Adapter
•
MVLF60154BAC - NSW Health Approved
Thermostatic Mixing Valve Lead Free
DZR Brass Chrome Plated w/ Cold
Water Bypass, Copper Tails, Stainless
Steel Enclosure and Temperature Probe
Adapter
MAR-IM-MVLF01-JT-20250210
gentecaustralia.com.au
Last updated in February 2025
AS 4032.1
Lic WM 74512
ApprovalMark
Advertisement
Table of Contents
Related Manuals for Gentec FLOMIX MVLF5015
Summary of Contents for Gentec FLOMIX MVLF5015
- Page 1 USER MANUAL FLOMIX Lead Free Thermostatic Mixing Valve • MVLF5015 NSW Health Approved Thermostatic Mixing Valve Lead Free DZR Brass Chrome Plated w/ Strainers and Non Return Valves • MVLF6015 - NSW Health Approved Thermostatic Mixing Valve Lead Free DZR Brass Chrome Plated w/ Strainers, Isolation and Non Return Valves •...
-
Page 2: Table Of Contents
USER MANUAL Table of Contents Scope of Use Technical Information Product Information Product Images & Technical Drawings Exploded Drawings Installation Steps Cleaning & Maintenance Troubleshooting Water Quality Responsibly Sourced Scope of Use Installation of all products should adhere to the manufacturer's guidelines, as well as comply with PCA, AS/NZS3500, AS4032 standards, and any other relevant regulatory provisions. -
Page 3: Technical Information
Technical Information Description MVLF6015 Series Min. temperature: 35 °C Mixed Temperature Max. temperature: 50°C Flow Rates Minimum flow 6 L/min Hot Max. 80°C Inlet Temperature (Hot) Min. 55°C Cold Max. 30°C Inlet Temperatures Cold Min. 5°C Inlet Ratio Accuracy ±2 °C Water Pressure Static, Max 1400kPa Working Pressure... -
Page 4: Product Images & Technical Drawings
22/10/2024 Bred Li SCALE NSW Health Approved Thermostatic Mixing Valve Lead Free DZR Brass Chrome Plated w/ Strainers and Non Return Valves (Must be installed with isolation valves- not supplied by GENTEC) G3/4 (20mm) G3/4 (20mm) G3/4 (20mm) PRODUCT CODE... - Page 5 6, 20 -28 Ricketty St www.gentecaustralia.com.au REV. DATE DESCRIPTION Mascot, NSW 2020 info@gentecaustralia.com.au This drawing is the Gentec Australia P LAST UPDATE APPROVED BY All dimensions are in m 11 Dec 2024 and are to be used as a 410.05 9.68...
- Page 6 DATE DESCRIPTION Cold Water Bypass, Stainless Steel Recessed Enclosure with Recessed Lockable Lid and Mascot, NSW 2020 info@gentecaustralia.com.au This drawing is t Gentec Australia LAST UPDATE APPROVED BY Copper Tails All dimensions are in 11 Dec 2024 and are to be used a 410.05...
- Page 7 Lock Fixing Slots both sides Incoming Hot Water Inlet Incoming Cold Mixed warm water Water Inlet ongoing to fixtures Water Inlet / Outlet holes Probe cable hole MVLF60153BAC REVISIONS 6, 20 -28 Ricketty St www.gentecaust REV. DATE DESCRIPTION Mascot, NSW 2020 info@gentecaus NSW Health Approved Thermostatic Mixing Valve Lead Free DZR Brass Chrome Plated w/ LAST UPDATE...
-
Page 8: Exploded Drawings
Ball Valve Cap Nut Strainer Note: The information provided is only a guide, actual product Ball Valve clarification with Gentec. Gentec reserves the right to make design changes at any time without notification. *WARRANTY TERMS AND CONDITIONS, please refer to www.gentecaustralia.com.au/page/terms_and_conditions... -
Page 9: Installation Steps
Installation Steps BEFORE SETUP, MAKE SURE: • Product must be installed in accordance with manufacturer’s recommendations and to AS/NZS3500. • Product must be installed by a licensed plumber and commissioned by a certified and licensed plumber. • Commissioning and maintenance, must be comply with local legislation and standards code AS/NZS 3666 •... -
Page 10: Cleaning & Maintenance
USER MANUAL Cleaning & Maintenance To minimise downtime and maximise the functional life of the product, GENTEC recommends servicing your product at least every 12 months, under heavy use may need to be checked and serviced more often. • The product must be handled carefully to avoid causing any physical damage. - Page 11 INSTRUCTIONS FOR FLUSHING AFTER INSTALLATION PRIOR TO COMMISSIONING Important Steps Step 1. Close the inlet ball valves on the Step 4. Reassemble the brass top cap on valve. the valve, open the hot and cold inlet ball valves and let the water flow through the body for at least 5 minutes in order to remove all the impurities.
- Page 12 USER MANUAL Step 7. Unscrew the brass top cap. Install Step 8. Open the intel ball valves of the the thermostatic element and valve. spring inside the body of the valve, screw on the top cap back in place. Brass Top Cap Now you are ready to commision the valve.
- Page 13 SCAL Please Note: The tool used for this Thermal Disinfection Procedure is available as a Separate item. Sales Code: MVLF9101 - GENTEC Thermal Disinfection Tool PRODUCT CODE AND DESCRIPTION www.gentecaustralia.com.au 6,20-28 Ricketty St Step 3. Insert the special tool into the Mascot, NSW 2020 info@gentecaustralia.com.au...
-
Page 14: Troubleshooting
USER MANUAL Troubleshooting Problem Cause How to Fix • Have you flushed the water line as per the instruction, this is VERY IMPORTANT AND CRITICAL during installation to do this correctly • Please check the strainers for blockages, as well as the non-return valves and isolating valves •... - Page 15 Problem Cause How to Fix • Have you flushed the water line as per the instruction, this is VERY IMPORTANT AND CRITICAL during installation to do this correctly • Please check the strainers for blockages, as well as the non-return valves and isolating valves •...
-
Page 16: Water Quality
USER MANUAL Problem Cause How to Fix • Have you flushed your water lines • If rubbish has gone through the The tap or valve is • Debris cartridge, there is a high chance you will leaking need to replace the cartridge or the parts in the valve •... -
Page 17: Responsibly Sourced
GENTEC is rejuvenating the product- no power, less maintenance and longer life. Rejuvenation Program To learn more about the rejuvenation program, please contact our customer service at info@gentecaustralia.com.au for more information. Ethically and Environmentally Sourced Please refer to GENTEC Business Ethics & Ethical Sourcing Policy at https:// gentecaustralia.com.au/terms-and-conditions/ gentecaustralia.com.au... - Page 18 Note: The information provided is only a guide, actual product may differ. The information here should not be relied on without clarification with Gentec. Gentec reserves the right to make design changes at any time without notification.
