Sullivans 39275 Manual

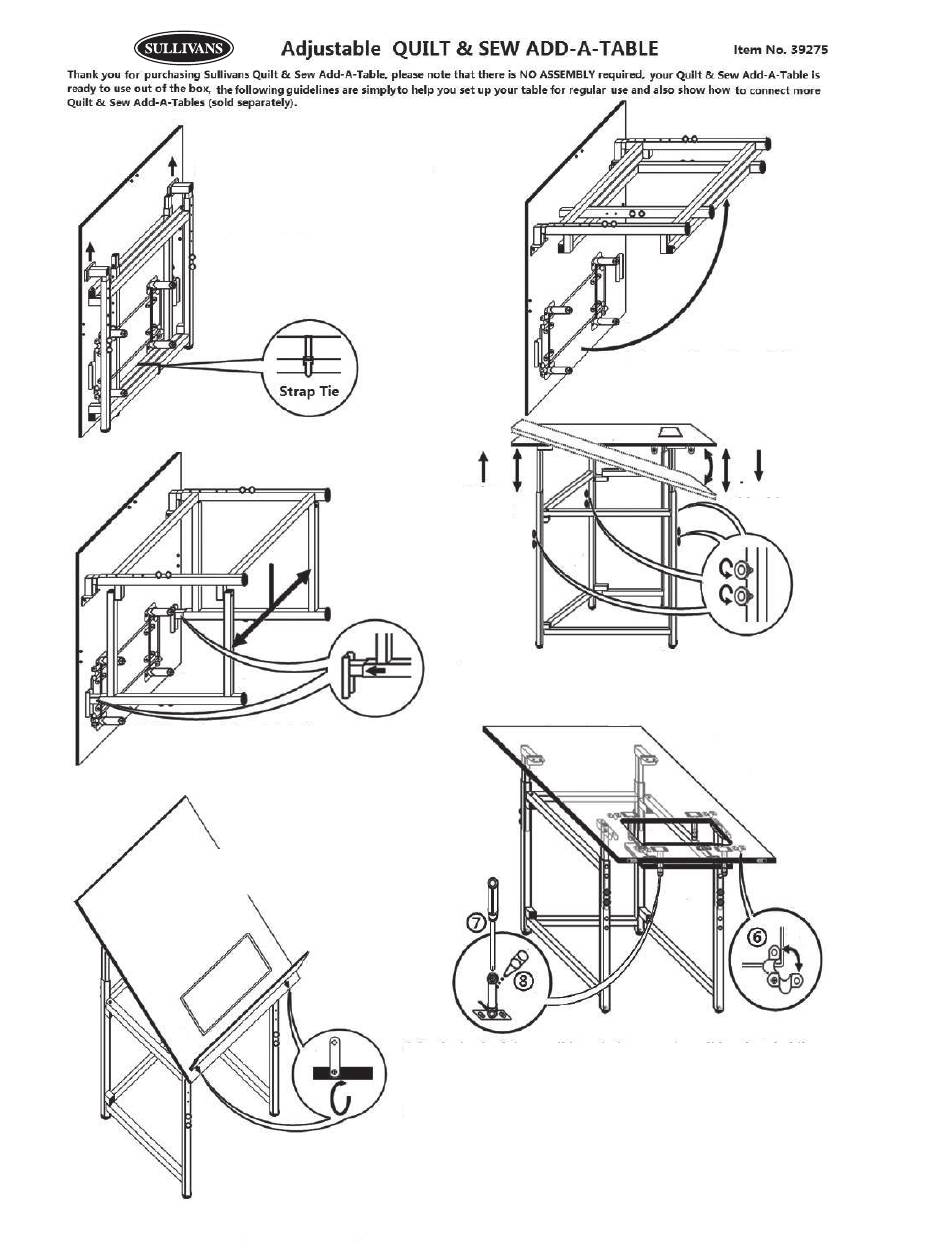

1. Remove Quilt & Sew Add-A-Table from
packaging and rest it on a flat wall
with both hinges face up as shown.
3. Fold out the left and right legs and place them into
their respective leg retainers as shown.
When used as a drawing board, tighten
5.
rail supports and use pencil rail.
9. Use the included joining plate and screws to join 2 or more Quilt & Sew
Add-A Tables together, please refer to the pictures on table box.
Raise this
side first
6. On the back of the small board, there are 4 small brackets holding the
small board, remove the brackets away, then you can drop down or lift
up the small board, push up the two steel wires on the small board to
lift it up.
7. The height of small board is adjustable from 3.25in to 3in, there is a
screw inside the small rubber column support. You may screw it in
clockwise or counter clockwise to adjust the small board's height.
8. If it feels a little too tight when the small board drops down or lifts up,
feed some machine oil on the small rubber column supports.
2. Remove strap tie and lift up the left
and right table legs as shown.
4. Adjust the table's height and angle as desired.
Please note: when raising the table, raise the back
legs first, then the front. When lowering the table,
lower the front legs first, then the back.
Lower
this side
first
