Sullivans 39271 Quick Start Manual

Thank you for purchasing Sullivans Add-A-Table, please note that there is NO ASSEMBLY required, your Add-A-Table is ready to use out of the box,
the following guidelines are simply to help you set up your table for regular use and also show how to connect more Add-A-Tables (sold separately).

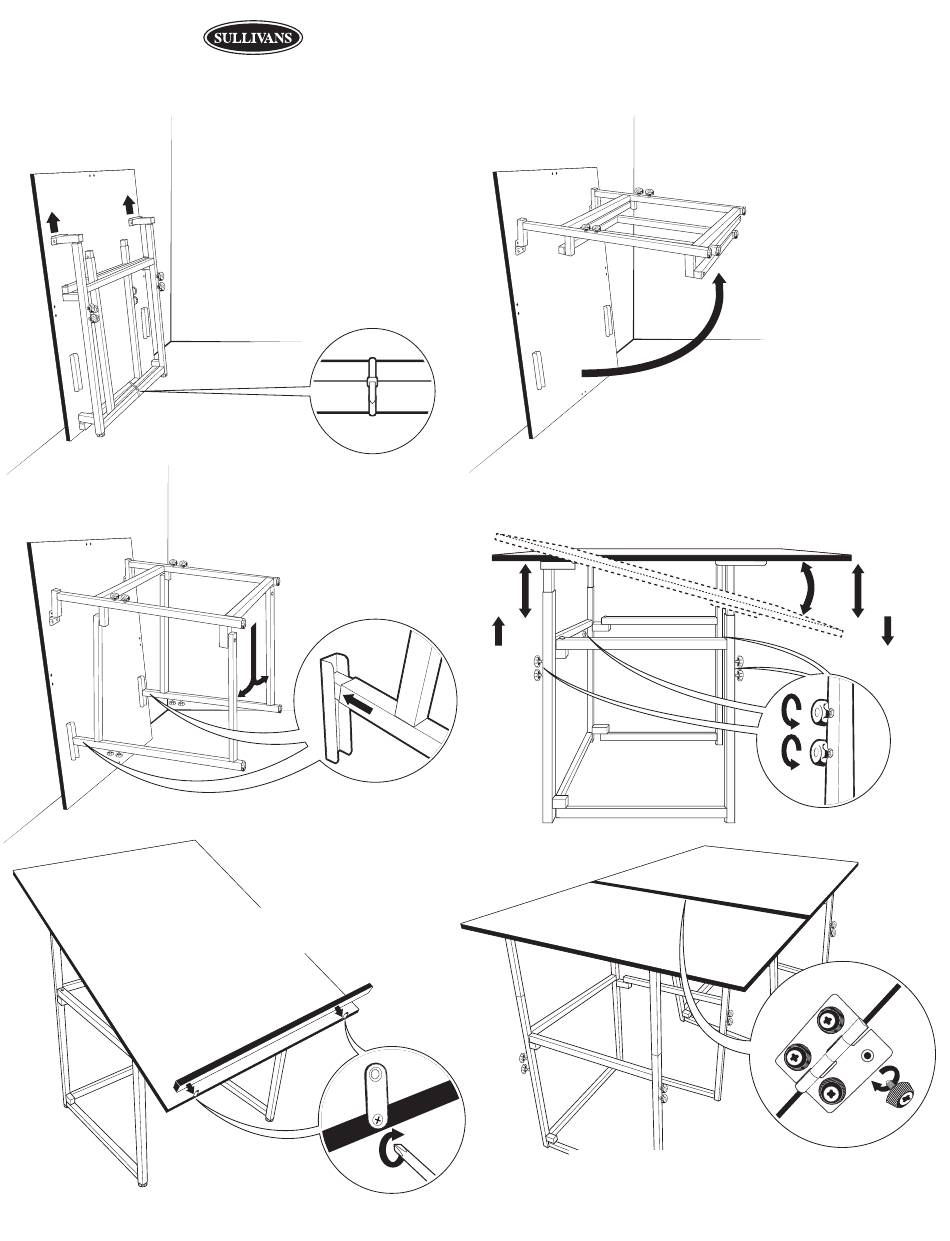

3. Fold out the left and right legs
5. When used as a drawing board, tighten
rail supports and use pencil rail.
Adjustable ADD-A-TABLE
1. Remove Add-A-Table from
packaging and rest it
on a flat wall with both
hinges facing up as shown.
Strap Tie
and place them into their respective
leg retainers as shown.
4. Adjust the Table's Height and Angle as desired
Please note: When raising the table, raise the back legs first, then the front.
When lowering the table, lower the front legs first, then the back.
Raise
this side
first

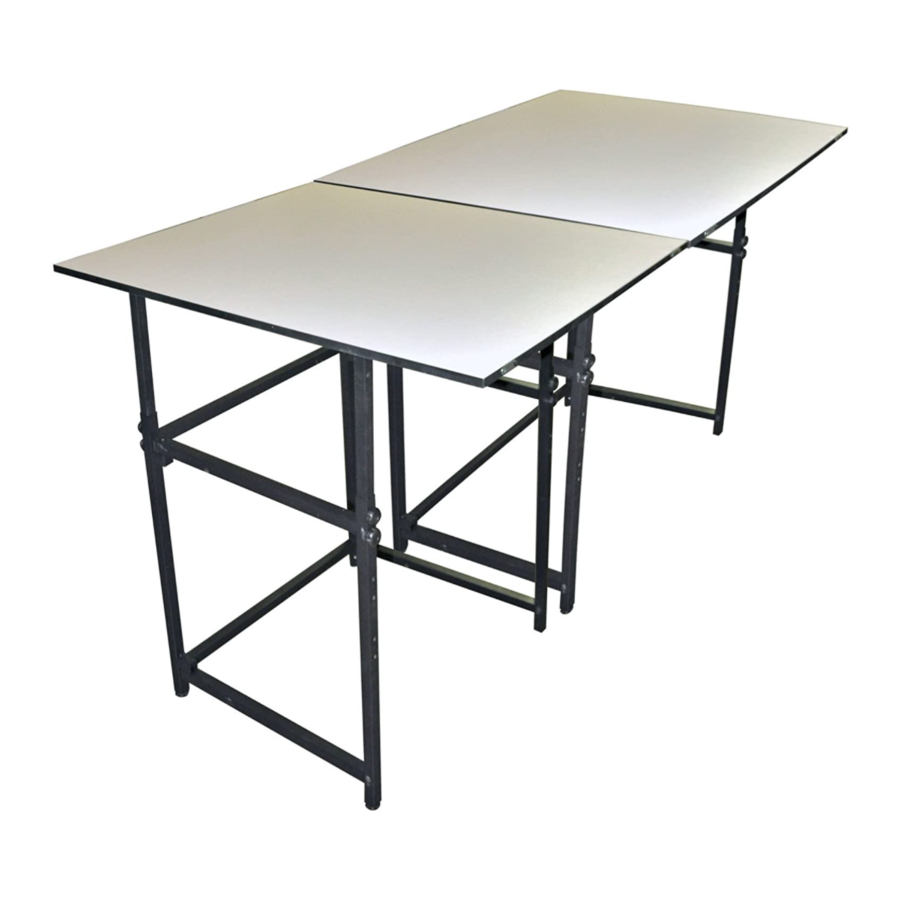

6. Use the included joining plate and screws to
join 2 or more ADD-A-TABLES together.
Item No. 39271
2. Remove Strap Tie and lift
up the left and right table
legs as shown.
.
Lower
this side
first
