Color Camera Module

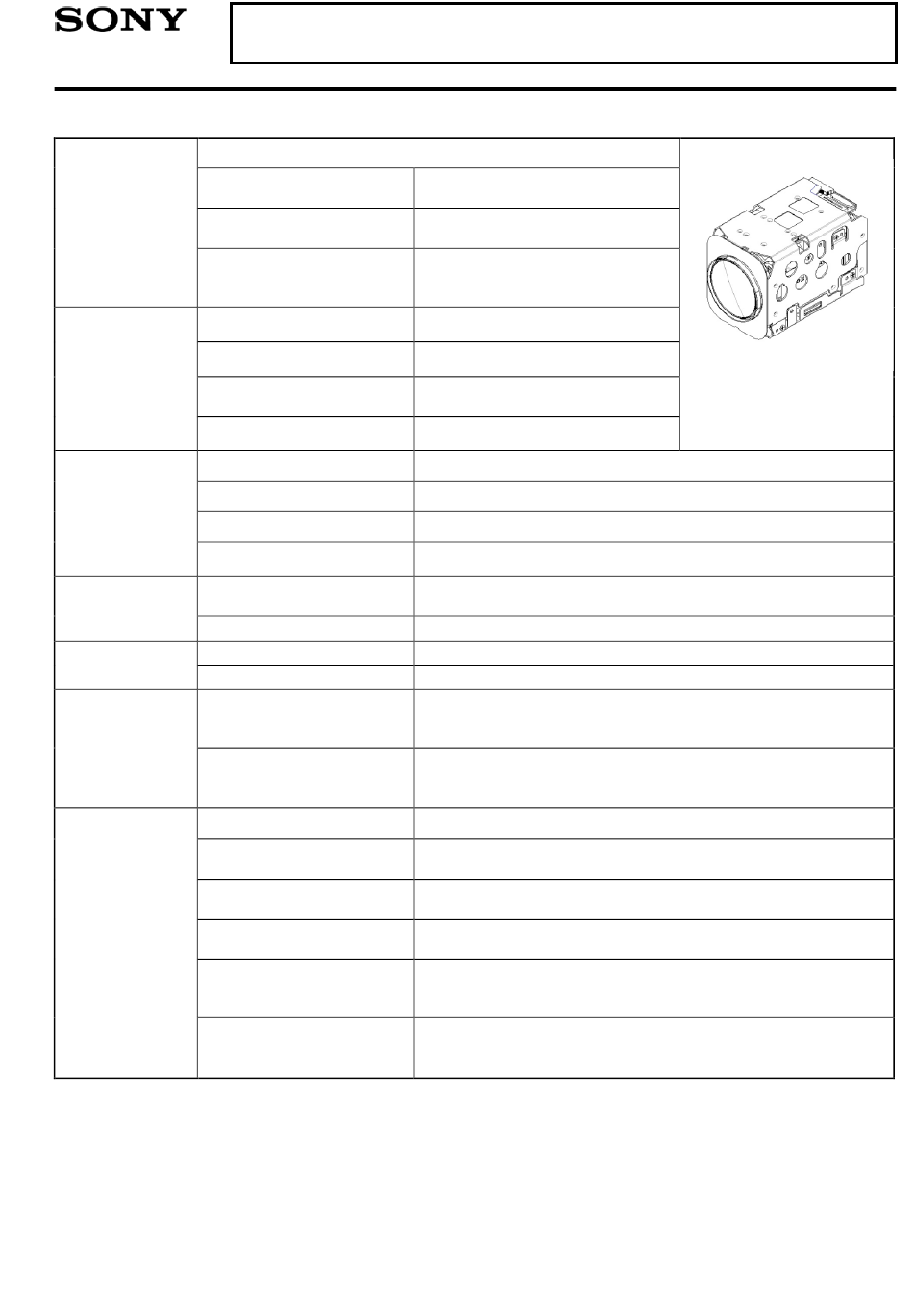

1 Cover Page and Summary of Specification
Progressive scan CMOS image sensor 1/2.8type Exmor
Number of total pixels
(H) x(V)
Number of effective pixels
Image sensor
(H) x(V)
Number of recommended
recording pixels (H) x(V)
Focal length
Magnification
Lens
Horizontal angle of view
F value
Zoom motor
Focus motor
Control
mechanics
Iris
IRCF
HD
Output mode
SD
Progressive
Synchronized
codes
Interlace
Image signal I/O
I/O pins
Control signal I/O
Power supply
Power consumption
Storage temperature
Operating temperature
Power, others
Dimensions
(W) x (L) x (H)
Mass
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license
by any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples
illustrating the operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these
circuits.
Sony CONFIDENTIAL
FCB-EV7500
1,952 x 1,236, 2.41 M [pixels]
1,944 x 1,224, 2.38 M [pixels]
1,920 x 1,080
4.3 [mm] to 129 [mm]
30 [times]
63.7[degree] (Wide)
2.3[degree] (Tele)
F1.6 (Wide) to F4.7 (Tele)
Stepping motor
Stepping motor
Meter Galvano method
Meter Galvano method
1080p/59.94,1080p/50,1080i/59.94,1080i/50,1080p/29.97,
1080p/25,720p/59.94, 720p/50, 720p/29.97, 720p/25
NTSC, PAL
Comparable to SMPTE 274 M, 296 M
Comparable to SMPTE 274 M
HD Analog component (Y/Pb/Pr) Digital (LVDS)
SD Analog VBS
VISCA protocol (CMOS 5 [V])
DC 6.0 [V] to DC 12.0 [V]
2.9W (Typ. DC IN 6-12V, Lens actuator not included,
Wide Dynamic Range Off)
-20 to +60 [degree] / 20 [%] to 95 [%]
Absolute humidity: 36 [g/m3]
-5 to +60 [degree] / 20 [%] to 80 [%]
Absolute humidity: 36 [g/m3]
50 [mm] x 60 [mm] x 89.7 [mm ]
260 [g]
Version 1.00 Aug, 2013
Outline Image
Sony Corporation. DIG VSS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sony FCB-EV7500
Summary of Contents for Sony FCB-EV7500
- Page 1 Application circuits shown, if any, are typical examples illustrating the operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
- Page 2 ICR (Day and Night) Image Stabilizer Slow AE High Sensitivity Gamma Standard / Straight gamma D-ZOOM Character Gen. Defog Color Enhancement Picture Effect Neg. Art / Black & White Spherical Privacy Zone Masking E-Flip Sony CONFIDENTIAL Sony Corporation. DIG VSS...
-
Page 3: Connector And Pin Assignment
Single out mode: open TXOUT6+ Single out mode: open TXOUT6- Single out mode: open RESET Reset:Low(GND),Normal:Open(1.8[V]) TXOUT5+ Single out mode: open TXOUT5- Single out mode: open TXOUT4+ Single out mode: open TXOUT4- Single out mode: open Sony CONFIDENTIAL Sony Corporation. DIG VSS... - Page 4 Output Format Pixel CLK[Hz) TCLK+[Hz] 1080p/59.94 148.5M/1.001 74.25M/1.001 1080p/50 148.5M 74.25M 1080i/59.94 74.25M/1.001 37.125M/1.001 1080i/50 74.25M 37.125M 1080p/29.97 74.25M/1.001 37.125M/1.001 1080p/25 74.25M 37.125M 720p/59.94 74.25M/1.001 37.125M/1.001 720p/50 74.25M 37.125M 720p/29.97 74.25M/1.001 37.125M/1.001 720p/25 74.25M 37.125M Sony CONFIDENTIAL Sony Corporation. DIG VSS...
- Page 5 Output Format Pixel CLK[Hz] TCLK+[Hz] 1080p/59.94 148.5M/1.001 148.5M/1.001 1080p/50 148.5M 148.5M 1080i/59.94 74.25M/1.001 74.25M/1.001 1080i/50 74.25M 74.25M 1080p/29.97 74.25M/1.001 74.25M/1.001 1080p/25 74.25M 74.25M 720p/59.94 74.25M/1.001 74.25M/1.001 720p/50 74.25M 74.25M 720p/29.97 74.25M/1.001 74.25M/1.001 720p/25 74.25M 74.25M Sony CONFIDENTIAL Sony Corporation. DIG VSS...
- Page 6 FCB-EV7500 Example of Application Circuit (for Single LVDS out) The application circuit is a typical example illustrating the operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of this circuit. Sony CONFIDENTIAL Sony Corporation. DIG VSS...
- Page 7 FCB-EV7500 Example of Application Circuit (for Dual LVDS out) The application circuit is a typical example illustrating the operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of this circuit. Sony CONFIDENTIAL Sony Corporation. DIG VSS...
-
Page 8: Detailed Specifications
They differ from the ones on 2D outline drawing, which are calculated based on the effective pixel area of image sensor and include the margin for the assembly tolerance. Distortion Correction ON Distortion Correction OFF Sony CONFIDENTIAL Sony Corporation. DIG VSS... -
Page 9: Camera Specifications
900 [TV lines] or more Border 800 [TV lines] or more (TELE) Center 700 [TV lines] or more Border 600 [TV lines] or more TV Distortion (Distortion Correct ON) ±2[%] Vibration Correction Frequency 3 to 13 [Hz] Sony CONFIDENTIAL Sony Corporation. DIG VSS... -
Page 10: Operating Conditions
DC IN 9.0 [V] DC IN 6.0 [V] Power Supply DC IN 12.0 [V] Lens Durability (At Room temperature) ZOOM 1,000,000 [Wide-Tele cycles] FOCUS 2,000,000 [Near-∞ cycles] Iris 500,000 [Open-Close cycles] IR motor 200,000 [On-Off cycles] Sony CONFIDENTIAL Sony Corporation. DIG VSS... -
Page 11: Electrical Characteristics
Data : 74.25 x7 MHz DC characteristics of VISCA I/F part VISCA (CMOS (5V)) High : 2.3 [V] or more Low: 1.0 [V] or less High : 4.4 [V] or more Low: 0.1 [V] or less Sony CONFIDENTIAL Sony Corporation. DIG VSS... - Page 12 FCB-EV7500 Analog Video MTBF Approx. 6.0 [years] Environmental Test (Under the Condition of 10 Cartons) Drop test : Sony Technical Manual (STM-1059 level3) Power Supply Condition 8 [msec] or less Sony CONFIDENTIAL Sony Corporation. DIG VSS...
-
Page 13: Handling Precautions
This camera module is a precision optical part, so care should be taken not to apply excessive mechanical shock or force. Remodeling Any remodeling or process at customers should be avoided. No product warranty will be granted if the product is once remodeled or processed. Sony CONFIDENTIAL Sony Corporation. DIG VSS... -
Page 14: Safety Standards
The place where is affected by reflects of fluorescent light or light from windows Under unstable illumination (Flickers will be generated) Place with intense vibration Where it is subject to radiation from laser beams Sony CONFIDENTIAL Sony Corporation. DIG VSS... -
Page 15: Package Outline
FCB-EV7500 7 Package Outline Sony CONFIDENTIAL Sony Corporation. DIG VSS... -
Page 16: Package Specification
8 Package Specification (Unit: mm) level3 ③Partition Material: (10division) Corrugated fiberboard) ②Conductive PE-Bub bag Material: Polyethylene ④ Carton Material: Corrugated fiberboard Barcode label Outside dimensions (L) x (W) x (H): 405 x 300 x 109 Sony CONFIDENTIAL Sony Corporation. DIG VSS... -
Page 17: Revision History
FCB-EV7500 Revision History Version Date Page Description 1.00 12/Aug/2013 released. Sony CONFIDENTIAL Sony Corporation. DIG VSS...
