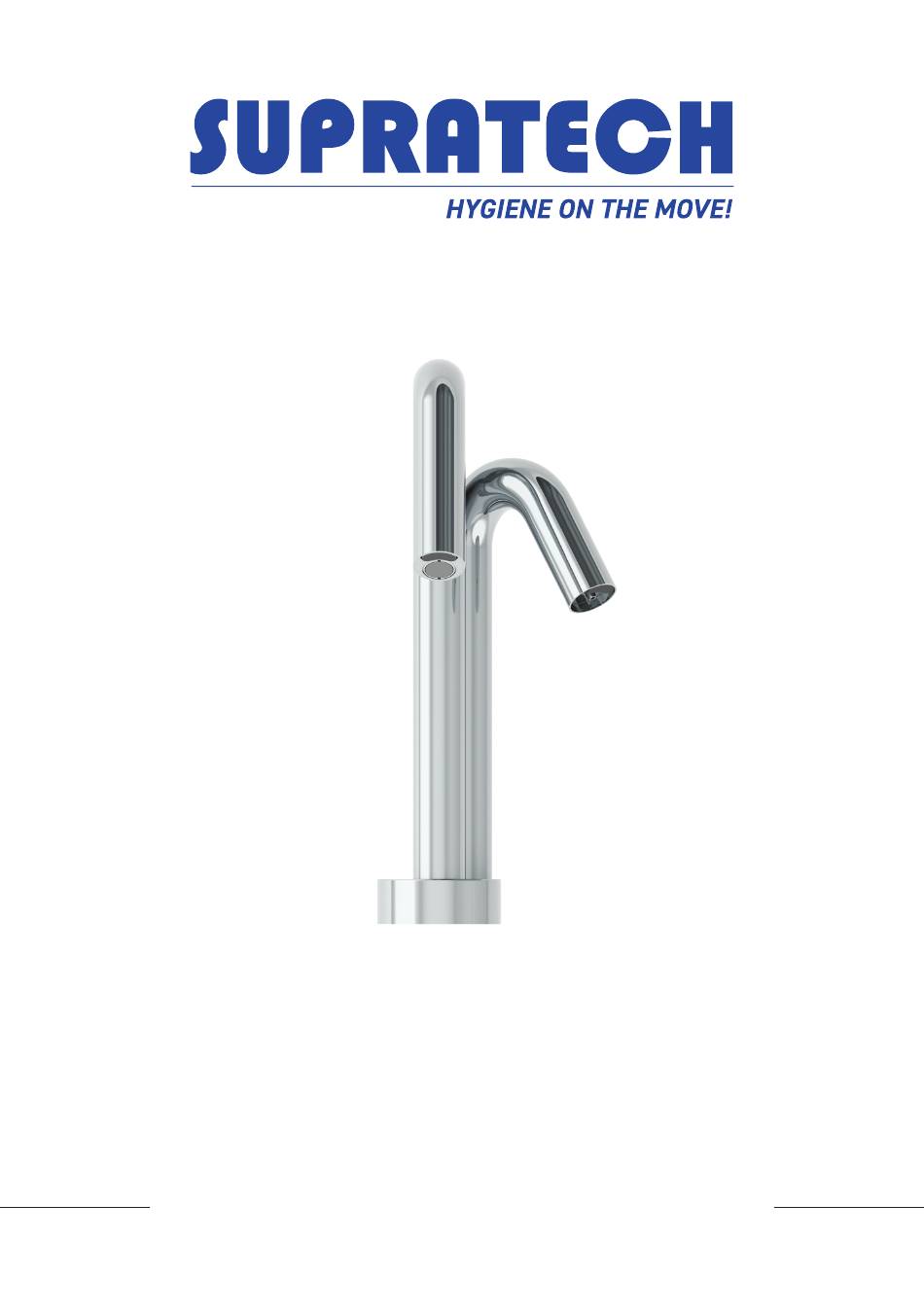

- Page 1 ONE 2IN1 ELECTRONIC SOAP AND WATER FAUCET INSTALLATION INSTALLATION MAINTENANCE MAINTENANCE GUIDE GUIDE...
- Page 2 The tradenames, trademarks, logos, and service marks presented in this document, including their design, are the property of SUPRATECH or other third parties and you are not permitted to use them...
- Page 3 T E C H N I C A L C H A R A C T E R I S T I C S V E R S I O N Ø25 Hole Min Ø33 Ø4 Max Ø40 Ø60 RES-57 1L tank Ø90 FAUCET Power supply 230/12V transformer 0.5 - 8 bars. If the water pressure exceeds 8 bars,...
- Page 4 P A C K C O N T E N T S R E S - 5 7 V E R S I O N 1 X POWER SPLITTER 1 X BODY AND FIXING ACCESSORIES 1 X SOLENOID 1 X TRANSFORMER VALVE HOUSING WITH DUAL POWER SUPPLY...
- Page 5 R E S - 5 7 V T E C H N I C A L C H A R A C T E R I S T I C S V E R S I O N Ø25 Hole Min Ø33 Ø60 Ø4 Max Ø40...
- Page 6 P A C K C O N T E N T S R E S - 5 7 V V E R S I O N 1 X SOAP LEVEL INDICATOR LIGHT 1 X BODY AND FIXING 1 X SOLENOID ACCESSORIES VALVE HOUSING WITH DUAL...
- Page 7 Thicker soap flows more slowly and clogs the pump, causing premature wear and congestion. The pH level of all soaps used in SUPRATECH liquid soap dispensers should be between 6.5 and 8.5. Lower levels will cause corrosion of the metal dispenser and even the rubber and plastic components.
-
Page 8: Step 2 - Mounting The Faucet
I N S T A L L A T I O N STEP 1 – PREPPING BEFORE INSTALLATION Shut off water supply. Remove the nut, the disk and the gasket. O-RING GASKET Do not remove the o-ring DISK from the faucet base. Remove the protective cap from the electrical connection on the PROTECTIVE... -
Page 9: Step 3 - Connecting The Water Supply
I N S T A L L A T I O N STEP 3 – CONNECTING THE WATER SUPPLY The water flow is indicated by an arrow located on the solenoid housing. NOTE: Connect the hose between the faucet and solenoid valve. Insert the flexible black hose into the quick-connect fitting located on the solenoid valve. -
Page 10: Step 5 - Connecting The Power Source
I N S T A L L A T I O N STEP 5 – CONNECTING THE POWER SOURCE Faucet: Connect the solenoid valve housing to the sensor. Apply enough pressure as this is a waterproof connector. NOT CONNECTED PROPERLY Soap dispenser: CONNECTED PROPERLY - Connect the soap pump... - Page 11 I N S T A L L A T I O N After connecting the power source wait 15 seconds to allow the ABOUT system to set the ideal sensor range. The solenoid valve will open and close for 1 second to indicate that SECONDS the ideal sensor range has been set and the product is ready for use.
- Page 12 F I L L I N G T H E 1 L S O A P T A N K Press the priming button located on the back of the pump until soap runs out of the spout. This step can also be completed using the RES-30 or RES-38 remote control.
- Page 13 S E T T I N G A D J U S T M E N T S TEMPORARY OFF DETECTION RANGE FUNCTION SELF-ADJUSTMENT RESET MODE SOAP TANK PRIMING SOAP DOSAGE SETTING ADJUSTMENTS WITH THE (OPTIONAL) SOAP & WATER RES-30 REMOTE CONTROL The ideal detection range will be set automatically.
-
Page 14: Detection Range
S E T T I N G A D J U S T M E N T S DETECTION RANGE The detection range represents the optimum distance at which a person or hand must be placed to trigger the system. Press the RANGE button. -
Page 15: Filter Cleaning Instructions
M A I N T E N A N C E FILTER CLEANING INSTRUCTIONS: This faucet is provided with a stainless steel filter preventing foreign particles to enter the lines. It is recommended to clean the filters every six (6) months. If the water flow has decreased, this may be because the filter is clogged. - Page 16 L I M I T E D W A R R A N T Y This faucet is warranted for 3 years from the date of purchase. In the event of a defect during this period of regular use, SUPRATECH will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments.
-
Page 17: Troubleshooting
T R O U B L E S H O O T I N G PROBLEM INDICATOR CAUSE SOLUTION No running 1. The sensor's 1. The range is too Increase range. water LED does not short. turn on when the user's hands 2. - Page 18 T R O U B L E S H O O T I N G PROBLEM INDICATOR CAUSE SOLUTION ILLUSTRATION Soap Continuous AUX connector The connectors should be dispensing discharge not fully inserted fully until the white from the inserted. o-ring is no longer visible.
- Page 19 T R O U B L E S H O O T I N G PROBLEM INDICATOR CAUSE SOLUTION ILLUSTRATION Soap not Pump not AUX connector The connectors should be dispensing making not fully inserted fully until the white sound when connected.
- Page 20 2, rue des Cyprès - 37240 Bossée - France Tél : 02 47 92 23 31 - Fax : 02 47 92 84 71 info@autosanit.com www.autosanit.com 07.2024...
