Page 1

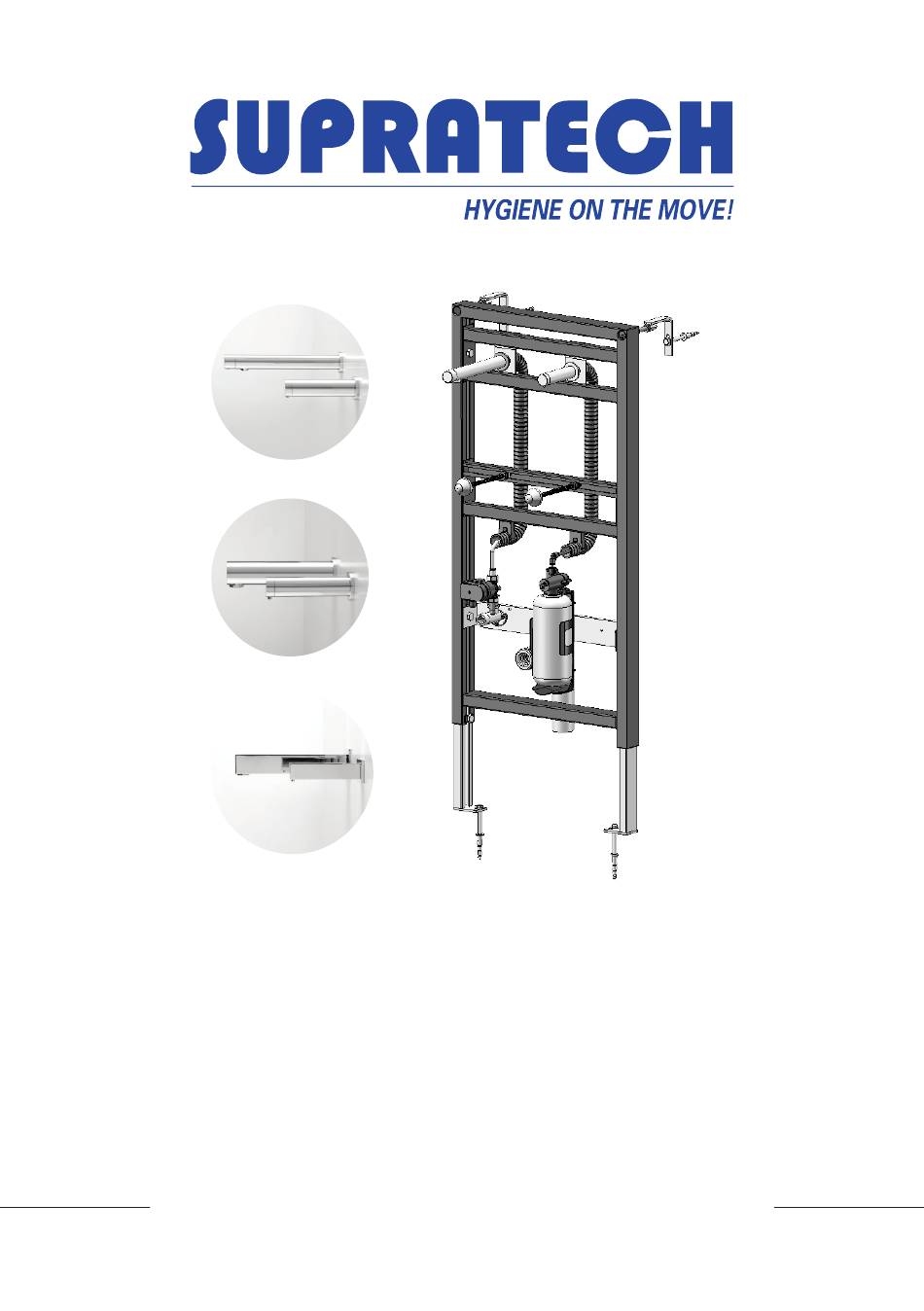

AKWALINE RONDEO CARREO RES-KE2 IRON WASHBASIN FRAME FOR WALL-MOUNTED ELECTRONIC WATER AND SOAP FAUCETS INSTALLATION AND MAINTENANCE INSTALLATION AND MAINTENANCE GUIDE GUIDE...
Page 2
The tradenames, trademarks, logos, and service marks presented in this document, including their design, are the property of SUPRATECH or other third parties and you are not permitted to use them...
Page 3
T E C H N I C A L C H A R A C T E R I S T I C S SOAP AND WATER FRAME SYSTEM Min 60 Max 360 Min 120 RES-KE2-143 RES-KE2-123 RES-KE2-243 AKWALINE water RONDEO water CARREO water...
Page 4
P A C K C O N T E N T S 2 X THREADED RODS 2 X THREADED RODS 2 X SHUT OFF 2 X SHUT OFF 1 X OUTLET 1 X OUTLET AND PLASTIC SLEEVES AND PLASTIC SLEEVES VALVES VALVES PIPE...
P R E - I N S T A L L A T I O N CHECK CONTENTS Separate all parts from the packaging and check each item using the PACK CONTENTS section. Make sure all parts are accounted for before discarding any packaging material.
Page 6
I N S T A L L A T I O N STEP 1 – IRON FRAME INSTALLATION Iron frame setup and mounting: Set the length of both legs (A1) to the desired length. The leg length will determine NOTE: the final height of the faucet and soap dispenser as well as the height of the washbasin.
Page 7
I N S T A L L A T I O N STEP 2 – WASHBASIN INSTALLATION Before wall construction and tiling, make sure all parts IMPORTANT: are connected properly and securely. Carry out this part of the installation after the wall and floor construction has been completed.
Page 8
I N S T A L L A T I O N STEP 3 – INSTALLING THE FAUCET AND SOAP DISPENSER Remove the dust covers (E1) located at the faucet and soap dispenser base and dispose of them. Fit the rosettes (E2) onto the faucet and soap dispenser bases.
I N S T A L L A T I O N STEP 4 – CONNECTING THE WATER SUPPLY Make sure the central water CAUTION: system is shut off. Connect the shutoff valve (F1) (if supplied) to the water inlet (C4). Keep it in the shutoff position.
Page 10
I N S T A L L A T I O N Connect the soap pump connector to the matching connector coming from the sensor. Please note that as the connector is waterproof, it may be O-RING VISIBLE – NOT CONNECTED PROPERLY necessary to apply some pressure.
Page 11
F I L L I N G T H E S O A P T A N K Unscrew the soap tank from the pump assembly and pull it out from the bottle support. Fill the tank up to the top line. Insert the soap tank along with the tube back into the bottle support Screw the soap tank back...
Page 12
S E T T I N G A D J U S T M E N T S - W A T E R DETECTION RANGE FLOW TIME OUT SELF ADJUSTMENT TEMPORARY OFF MODE FUNCTION SECURITY STOP RESET 24 HOUR HYGIENE COMFORT FLUSH FLUSH SETTING ADJUSTMENTS WITH THE (OPTIONAL)
Page 13
S E T T I N G A D J U S T M E N T S - W A T E R the detection range represents the optimum DETECTION RANGE distance at which a hand must be placed to trigger the system (water &...
Page 14
S E T T I N G A D J U S T M E N T S - S O A P D I S P E N S E R If necessary, use the (optional) RES-38 remote control to adjust the soap dispenser’s settings.
Page 15
S P A R E P A R T S L I S T Seals and screws kit (AKWALINE faucet) S07210102 Sensor kit (AKWALINE faucet) S08004503 Seals and screws kit (RONDEO faucet) S07210138 Seals and screws kit (CARREO faucet) S07210035 Sensor kit (RONDEO/CARREO faucet) S07220355 Dual power input box (AKWALINE/RONDEO/CARREO...
Page 16
M A I N T E N A N C E CARE AND CLEANING OF CHROME AND SPECIAL FINISHES DO NOT use steel wool or cleansing agents containing alcohol, acid, abrasives, or the like. Use of any prohibited cleaning or maintenance products or substances could damage the surface of the soap dispenser.
Page 17
The electronic units of this system are warranted for 3 years from the date of purchase. In the event of a defect during this period of regular use, SUPRATECH will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments.
T R O U B L E S H O O T I N G PROBLEM INDICATOR CAUSE SOLUTION Soap not 1. Blue Soap tank is Fill with soap of correct viscosity dispensing indicator empty. (100-3800 cPs) and prime pipes using light flashes the FILL button on remote control or by (once) and...
Page 19
T R O U B L E S H O O T I N G PROBLEM INDICATOR CAUSE SOLUTION No running 1. The sensor's 1. The range is too short. Increase range. water LED does not turn on 2. The range is too long. Decrease range.
Page 20
2, rue des Cyprès - 37240 Bossée - France Tel : 00 33 (0)2 47 92 23 31 - Fax : 00 33 (0)2 47 92 84 71 info@autosanit.com www.autosanit.com 03.2024...
