Summary of Contents for PowerPac iFan IF9014

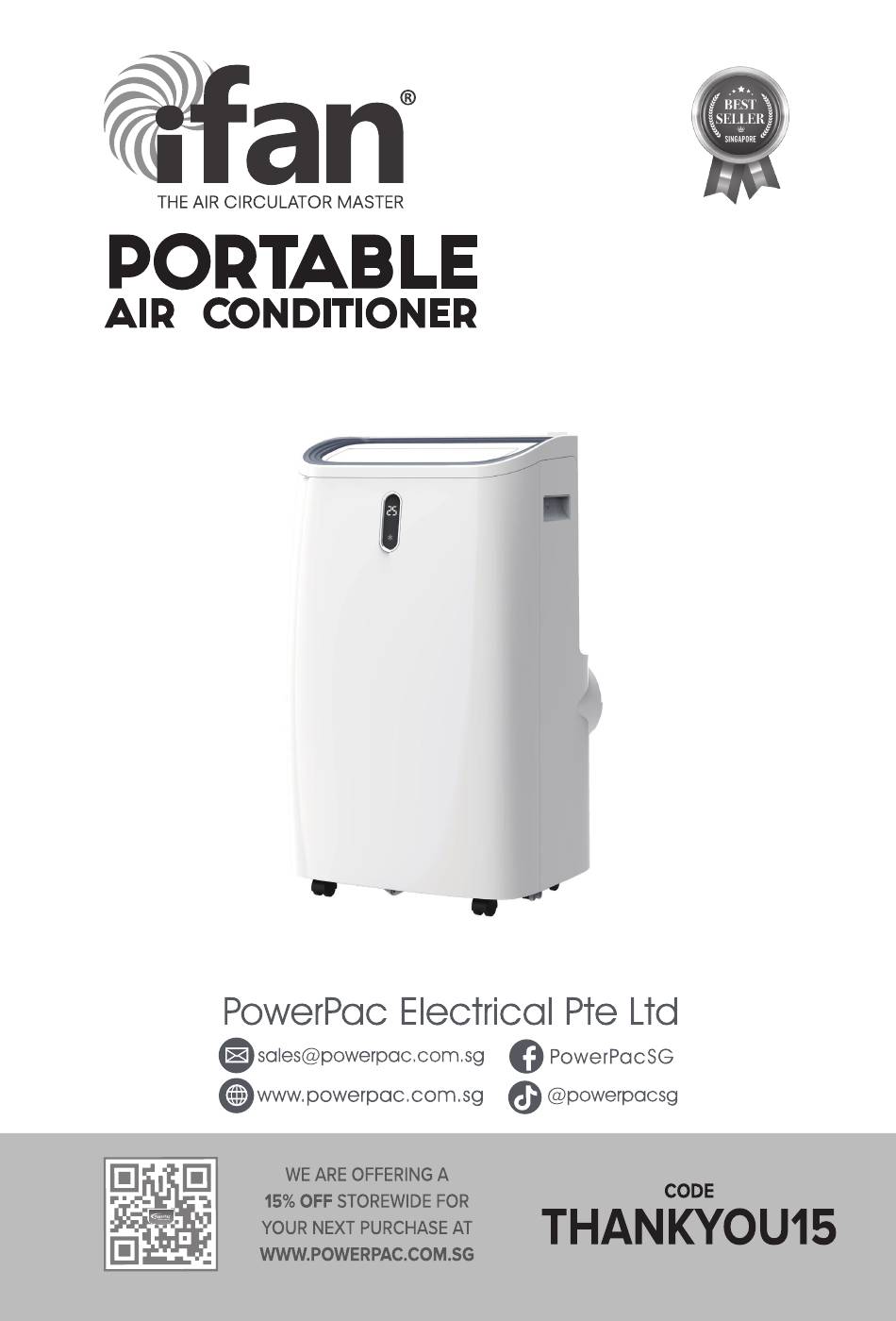

- Page 1 Model: IF9014...
-
Page 2: Parts & Description
PARTS & DESCRIPTION LIST OF COMPONENTS Top Cover Rear Housing Air Exhaust Grille Front Housing Caster Drainage Hole Control Panel Air Inlet Grille (with Drainage Plug) Air Outlet with Louvre Air Filter Recessed Handle Continuous Drainage Hole Exhaust Pipe Assembly Window Sealing Plate Assembly... - Page 3 WARNINGS ATTENTION : Read this booklet carefully as it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference. The following basic precautions should always be followed when using electrical appliances: Read all instructions before using the appliance. The Appliance This appliance must be used only for the purpose it was expressly designed;...
-
Page 4: Operation
DO NOT operate the appliance next to an open window while it is raining, or use it in the bathroom or other humid environments. Rainwater splashing onto the appliance may cause an electric shock. DO NOT use or store the appliance outdoors. Store and use the appliance only indoors, or in any case, protected from weathering such as rain, direct radiation of the sun and dust. - Page 5 This appliance is NOT intended for commercial use but to be used in households and similar applications, such as: • Staff kitchen areas in shops, offices and other working environments; • By clients in dormitories, hotels, motels and other residential environments; •...
- Page 6 Fit the Hose Connector to the Air Exhaust Grille on the Rear Housing. Place the appliance with installed Exhaust Hose before the window, and the distance between the body and walls or other objects shall be least 50 cm (Fig. 5). r = 50 cm Fig.
- Page 7 HOW TO USE 1. POWER Switch appliance ON or OFF (default Fan mode) 2. MODE Toggle between COOL (16 – 32°C), DRY & FAN modes. In DRY mode, the speed is set to LOW permanently and cannot be adjusted. Remove the Sealing Plug and connect the water hose to the Drainage Hole. 3.
- Page 8 HOW TO DRAIN AND STORE Manual Drainage When the appliance stops operating due to the Water Pan reaching maximum level, switch the wall switch OFF and unplug the power cable from the wall socket. Move the Drainage Pipe connecting the appliance to a toilet or other drainage area to empty the water.
-
Page 9: How To Clean
HOW TO CLEAN Warning: The appliance is fully assembled. DO NOT operate the appliance with any of its parts disassembled. The entire assembled unit works as a single appliance. The appliance must only operate in the upright position. Any other position will be hazardous. Turn the wall switch OFF and unplug the power cable from the wall socket. -
Page 10: Problem Solving
PROBLEM SOLVING Fault symptom Cause analysis Troubleshooting The power cable could be Please stop use and contact damaged. customer service. AC fuse could be damaged or the Replace the fuse or restart the unit. circuit stops functioning to If problems persist, please stop use prevent overload. - Page 11 The Remote The distance between the Move the Remote Control Control does not appliance and the Remote closer to the appliance, and work. Control is too far. point the Remote Control directly in the direction of the receiver. The Remote Control is not aligned with the direction of the remote control receiver.
-
Page 12: Specification
SPECIFICATION Model IF9014 Power 4100W Voltage / Frequency 220V-240V ~ 50Hz Cooling Capacity 14000 BTU Air Flow Volume 410m Weight GW:32kg, NW:37kg... -
Page 13: Warranty
However, if the customer still requests that the defective appliance be repaired, PowerPac Electrical Pte Ltd may, at its discretion, repair the appliance but impose a labour charge, as well as the costs of the replacement parts, to be borne solely by the customer.
