PowerPac ifan IF7880 Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ifan IF7880 and is the answer not in the manual?

Questions and answers

Eric Ang
June 25, 2025

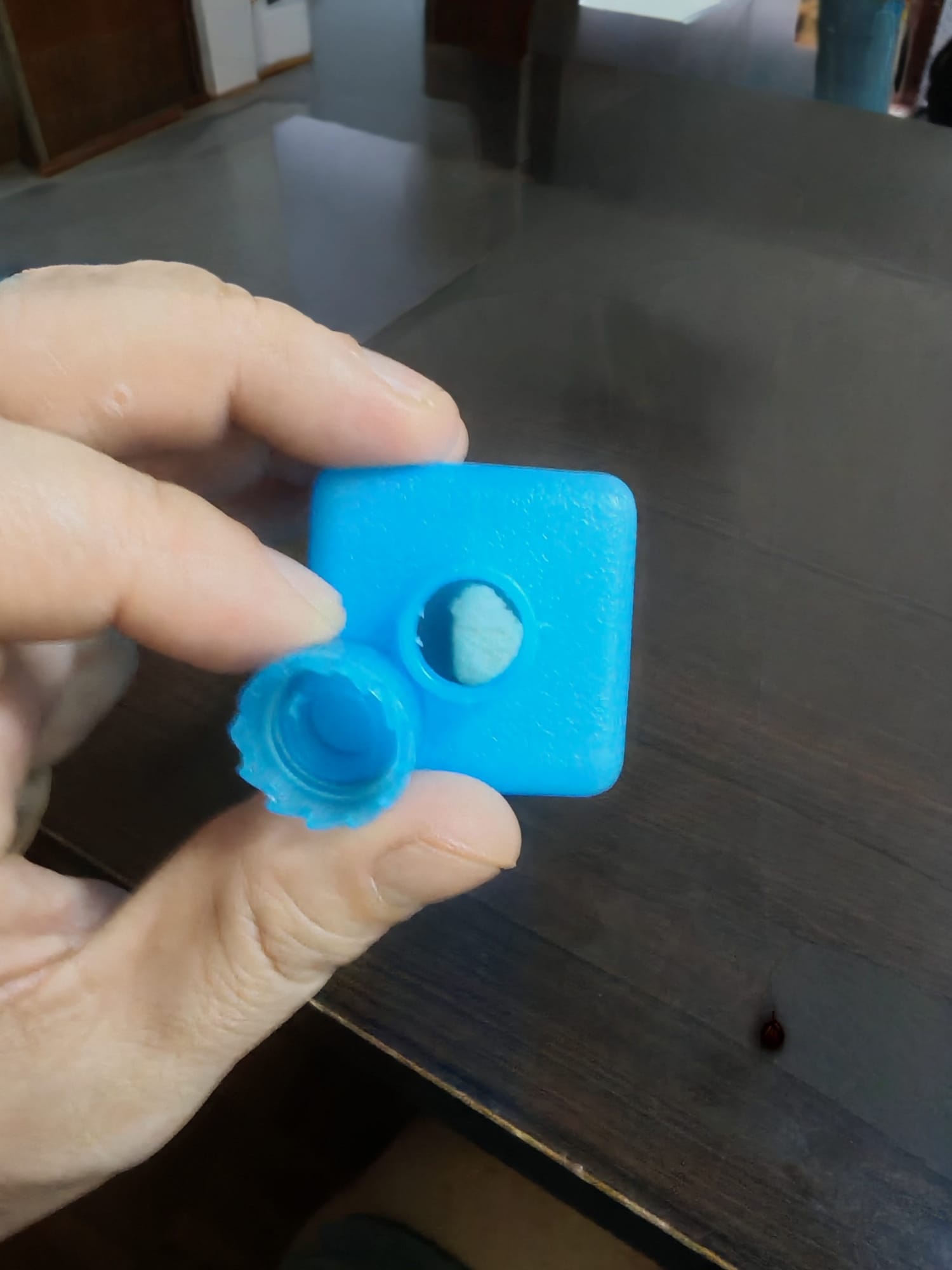

Dear PowerPac Support Team, I recently purchased the PowerPac IF7880 evaporative air cooler and noticed that the included blue ice pack bottle has a cap and a maximum fill indicator. I would like to confirm whether this bottle is: - Pre-filled and sealed (not meant to be opened), or - Designed to be opened and filled with water or another substance by the user. Could you kindly advise on the correct usage and whether any maintenance or refilling is required? Thank you for your assistance. Best regards, Eric Ang

User image 685b7618c8ec7
0
1 comments:
Eric Ang
June 25, 2025

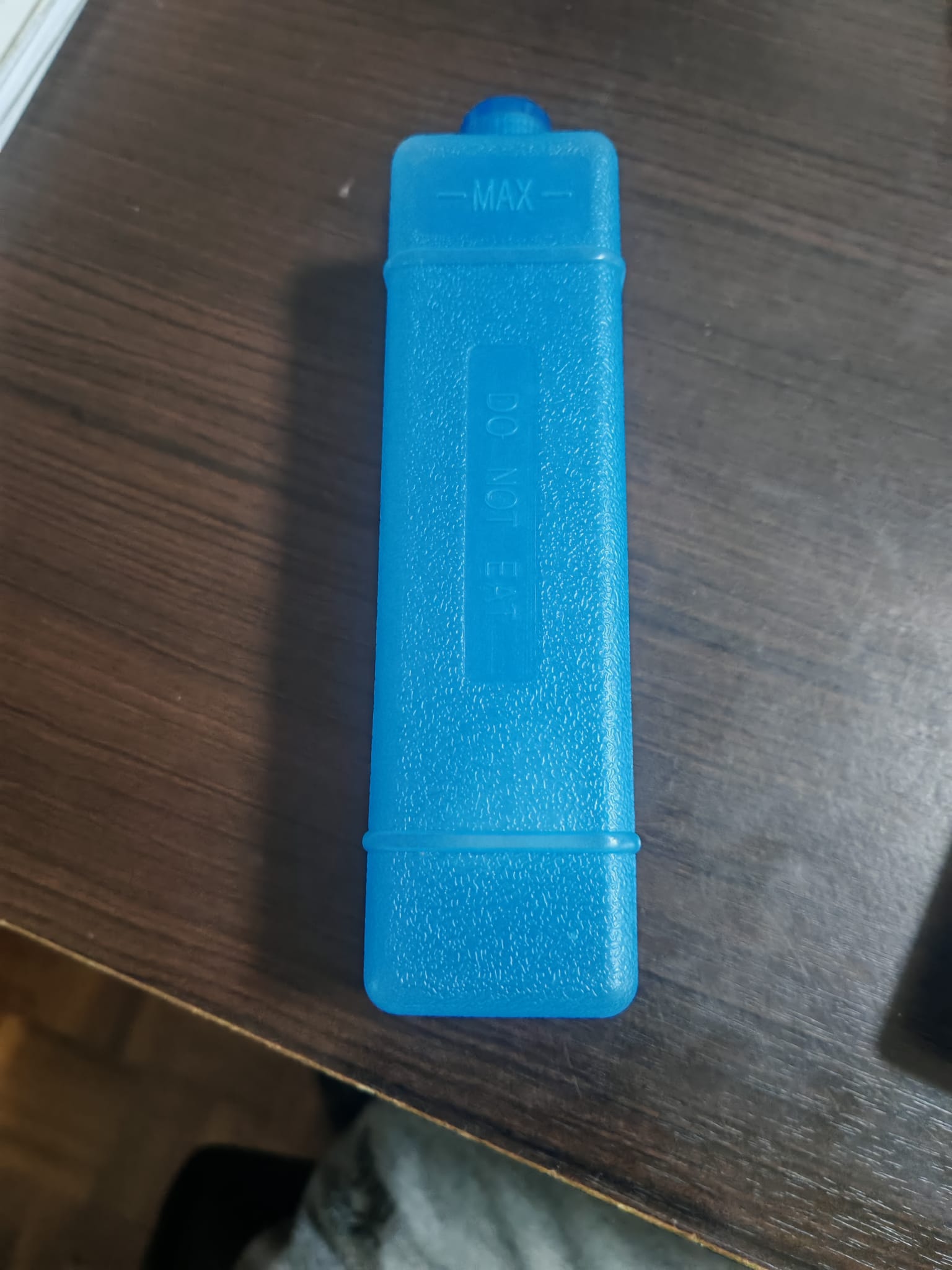

@Eric Ang - Dear PowerPac Support Team, I recently purchased the PowerPac IF7880 evaporative air cooler and noticed that the included blue ice pack bottle has a cap and a maximum fill indicator. I would like to confirm whether this bottle is: - Pre-filled and sealed (not meant to be opened), or - Designed to be opened and filled with water or another substance by the user. Could you kindly advise on the correct usage and whether any maintenance or refilling is required? Thank you for your assistance. Best regards, Eric Ang

User image 685b76797c148
0

Subscribe to Our Youtube Channel

Related Manuals for PowerPac ifan IF7880

Summary of Contents for PowerPac ifan IF7880

  • Page 2 Parts & Description...
  • Page 3 Control Panel (Status Light is illuminated for 30 seconds (and then dimmed) whenever a button on the Control Panel or the Remote Control is pressed TIMER ANION SWING COOL SPEED ON/OFF Status Light Remote Control...
  • Page 4 Warnings ATTENTION : Read this booklet carefully as it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference. The following basic precautions should always be followed when using electrical appliances: 1. Read all instructions before using the appliance. The Appliance 2.
  • Page 5 Location 10. This appliance is NOT suitable to be used or stored near heat sources (open flame, ovens, heaters, stoves, etc.) and/or in an explosive environment (in the presence of flammable substances such as gas, vapour, mist or dust, in atmospheric conditions when, after ignition, the combustion is spread in the air).
  • Page 6 d. After lifting up the Top Water Tray (top) or pulling out the Water Tank (bottom and back of appliance), add sufficient water into the Water Tank but DO NOT add beyond the maximum volume. Put the Top Water Tray back down or push the Water Tank back into the appliance.
  • Page 7  operate the appliance for more than 6 hours without turning it off for at least 30 minutes to let the appliance cool down for a total usage of 12 hours a day – failure to heed this warning may result in motor failure; ...
  • Page 8 HOW TO USE Warning: The fan is fully assembled. DO NOT operate the fan with any of its parts disassembled. The entire assembled unit works as a single appliance. The fan must only operate in the upright position. Any other position will be hazardous. 1.
  • Page 9 Filling the Water Tank 5. The Water Tank should be re-filled with fresh, clean water frequently. DO NOT fill the Water Tank with other liquids.  Put the frozen Ice Packs into the Water Tank.  Use a hose or the Water Container provided (or any clean container) to fill up the Water Tank or Top Water Tray with water until the orange water level indicator reaches the top of the Water Level scale (above the minimum and below the maximum levels of the tank).
  • Page 10 To turn ON 6. Insert the plug of the power cable directly into the wall socket. Ensure that the plug fits tightly into the socket. Switch the socket switch ON. 7. What the Functions Buttons do: Function Press the ON/OFF Button on the Control Panel / Remote Control once to turn the appliance ON (button illuminates Blue ON/OFF...
  • Page 11 8. The COOL mode is activated, the Water Pump in the Water Tank pumps water to saturate the three Cooling Pads (left, right & back). Air which flows through the Cooling Pads lose heat to the water and exit at a slightly lower temperature. Thus a decrease in temperature occurs;...

  • Page 12: How To Clean

    HOW TO CLEAN 1. Switch the appliance OFF. Wait for the appliance to cool down completely. 2. Clean the exterior parts of the appliance thoroughly with warm water & detergent with a non-abrasive sponge and wipe dry. Take special care that the Control Panel found at the top of the appliance is kept dry and that the Motor Unit DOES NOT come into contact with water.
  • Page 13 b. Unlock the Water Pump. c. Pull out the Water Pump and wash it. d. Remove the Water Tank from the appliance completely. e. Clean the Water Tank with damp cloth moistened with warm water & detergent with a non-abrasive sponge.
  • Page 14 f. Push the Water Tank back halfway into the appliance. g. Put the Water Pump back into the Water Tank. h. Lock the Water Pump. i. Put the Drain Valve back in. (Put the frozen Ice Packs into the Water Tank only if you intend to use the appliance immediately as an Air Cooler in COOL mode after cleaning the appliance) k.
  • Page 15 4. Remove the Left Side Shutter on the left of the appliance. The Left Side Dust Filter attached to the Left Side Shutter can be detached. Then remove the Left Cooling Pad. 5. Remove the Right Side Shutter on the right of the appliance. The Right Side Dust Filter attached to the Right Side Shutter can be detached.
  • Page 16 7. Clean the Dust Filters, Cooling Pads and Shutters under running water. Let the components air-dry before replacing them in their respective positions on the appliance. 8. Use a vacuum cleaner to suck up dirt from the Air Inlet and Air Outlet and around the Motor Unit periodically, based on the frequency of use and the air quality of the environment.

  • Page 17: Problem Solving

    PROBLEM SOLVING Fault symptom Cause analysis Troubleshooting The power cable could be Please stop use and contact damaged. customer service. Replace the fuse or restart AC fuse could be damaged or the unit. If problems persist, the circuit stops functioning to The appliance please stop use and contact prevent overload.
  • Page 18 Fault symptom Cause analysis Troubleshooting Clean the Water Tank and replace the water in the The Cooling Pad is dry or Water Tank. contains an insufficient Clean the Water Hose. amount of water due to either Remove dirt from the Water Pump’s strainer.
  • Page 19 Fault symptom Cause analysis Troubleshooting As water is continually removed from the Water Tank, various salts are left behind, which in time White become saturated and sediments in The water in the Water Tank exceed their Solubility the Water is saturated with salt. Product values (K Tank.

  • Page 20: Specification

    ENVIRONMENTAL TIP This appliance, along with all other electronic appliances, should, when it is no longer capable of functioning, be disposed with the least possible environmental damage according to the local regulations in your area. In most cases you can discard the appliance at your local recycling centre.

  • Page 21: Warranty

    3. This warranty does not cover the repair or replacement of part/s damaged by misuse, accidents, negligence, alterations, or modifications in any way, or repairs done by any repair organisation without the prior consent of PowerPac Electrical Pte Ltd. 4. Repair and service are to be performed at: 5 Changi South Lane #03-01 Singapore 486045.
  • Page 22 In accordance with the terms and conditions of this limited warranty as stated above, PowerPac Electrical Pte Ltd, at its expense shall provide free services for the appliance within the warranty period from its date of purchase from our Authorised...
