Aritech ATS 700-RETRO Series Installation Sheet

ATSx700-RETRO Retrofit
Kit Installation Sheet
EN: Installation Sheet
Description
ATSx700-RETRO Retrofit Kit allows you to upgrade your Advisor
MASTER or Advisor Advanced control panel to AXON control panel.
For the complete information on control panel installation and
programming, see AXON Control Panel Installation and Programming
Manual.
Warnings and cautions
Caution: Hot parts! Risk of burn. Burned fingers when
handling parts. Allow parts to cool down before handling.
WARNING! Dangerous voltage! Risk of injury or death. Fuse
may be in the neutral. The mains should be disconnected to
de-energize the phase conductors.
WARNING! If the housing cover is removed, there is no safeguard
against electrically caused fire that might occur during system
malfunction. The housing cover must be reassembled according to this
installation instruction after each interference by a user.
WARNING: Electrocution hazard. To avoid personal injury or
death from electrocution, remove all sources of power and allow stored
energy to discharge before installing or removing equipment.
WARNING! The correct earthing procedures must be followed.
WARNING! Use cables that comply with IEC 60332-1-2 and IEC
60332-1-3, or IEC 60332-2-2, or IEC TS 60695-11-21, or UL 2556 VW-
1. Use cables and connections that can withstand at least 2 A current.
WARNING: Before removing the mains fuse, mains power must be
disconnected.
Kit contents

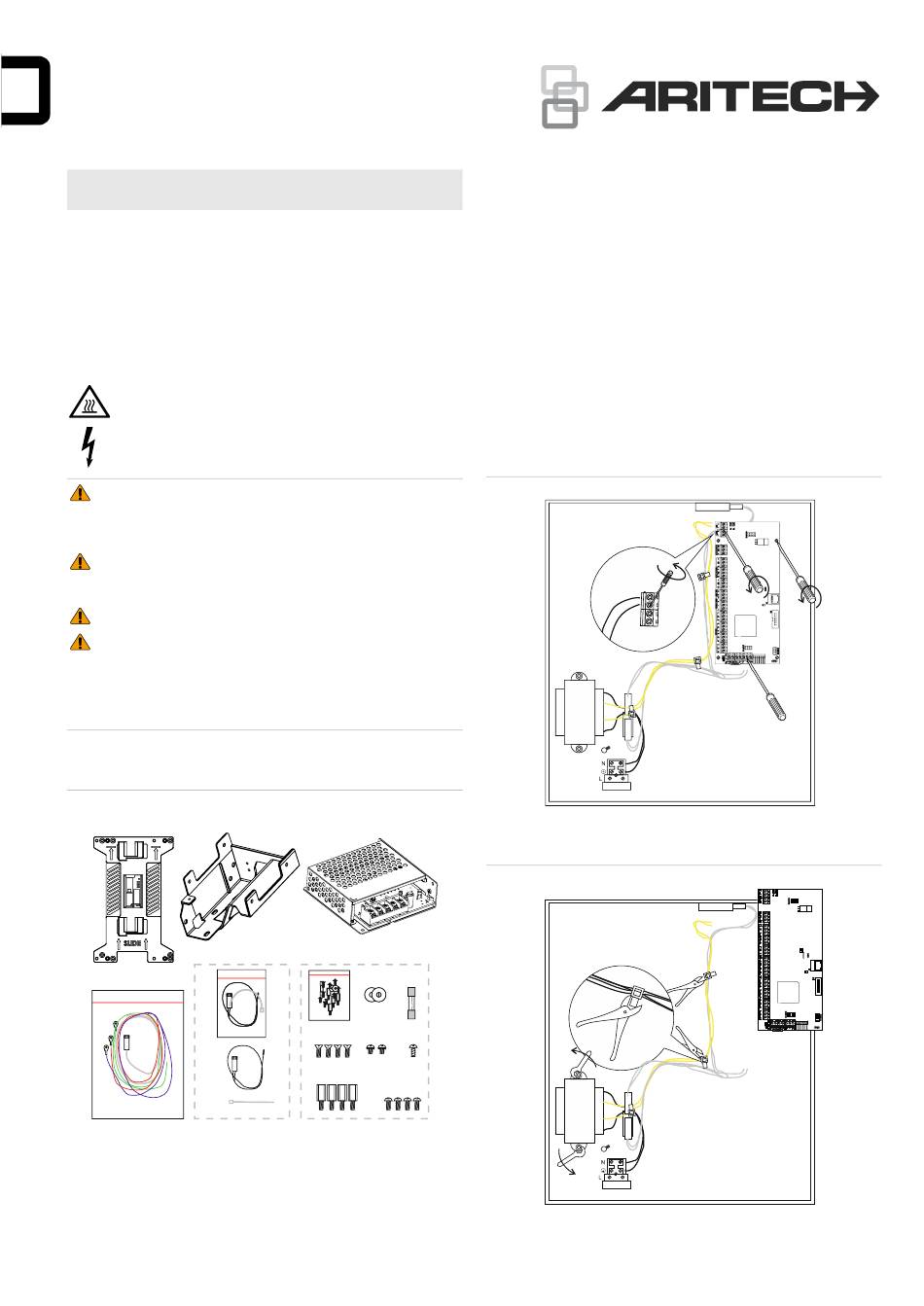

Figure 1: Kit contents
(1) (2)
(4)
(5-1)
(5-2)
ATSx700-RETRO Retrofit Kit contains the following items:
(1) AXON universal mounting bracket
(2) AXON PSU mounting bracket
(3) AXON control panel PSU
(4) Power and earthing cables, and tamper kit cables
© 2024 Carrier
(5-1) NTC temperature sensor
(5-2) Temperature sensor cable tie
(6-1) 2X M4 washers for PSU bracket mount
(6-2) Mains fuse
(6-3) 4X M3x10 flat head screws for universal bracket mount
(6-4) 2X M3x6 round head screws for mounting the PSU in the
(6-5) 1X 3x6 screw for the earthing cable connection
(6-6) 4X M3x10 standoffs for fixed PCB mount on the universal
(6-7) 4X M3x10 round head screws for PCB mount on the universal
Note:
MBC. ATSx700-MBC must be ordered separately.
Installation
Follow the steps below.
Figure 2
•
(3)
•
Figure 3
(6-1) (6-2)
(6-3) (6-4) (6-5)
(6-6)
(6-7)
1 / 4
bracket
bracket
bracket standoffs
ATSx700-RETRO Retrofit Kit does not include any control panel
Disconnect all cables from the control panel PCB.
Unscrew the PCB from the housing.
P/N INT-1000274 (EN) • REV A • ISS 08MAY24
