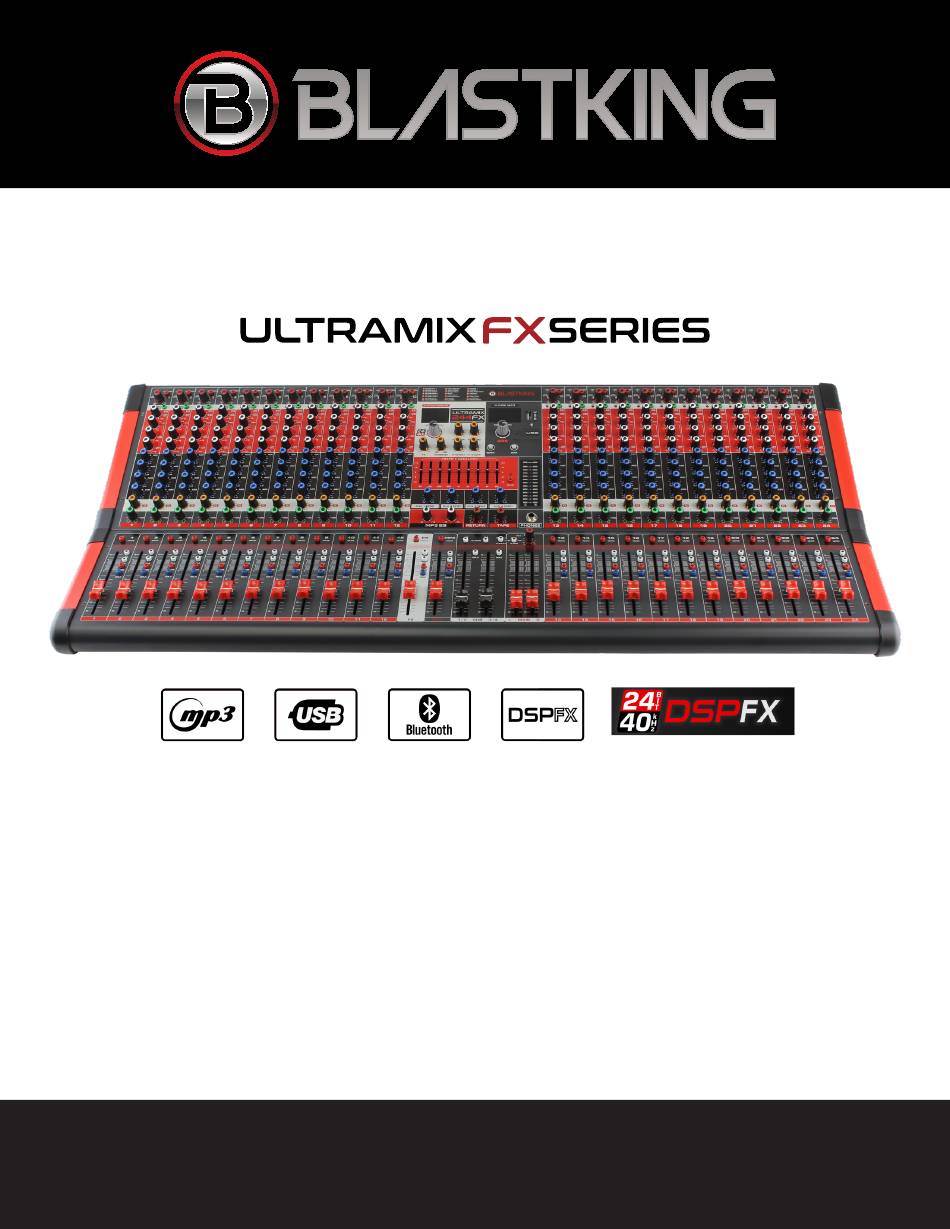

- Page 1 USER MANUAL PROFESSIONAL EFFECTS MIXERS ULTRAMIX-084FX 8 Channel FX Mixer 4 Aux ULTRAMIX-124FX 12 Channel FX Mixer 4 Aux ULTRAMIX-164FX 16 Channel FX Mixer 4 Aux 24 Channel FX Mixer 4 Aux ULTRAMIX-244FX 32 Channel FX Mixer 4 Aux ULTRAMIX-324FX blastking.com...
- Page 2 Please read this entire user manual before operating this unit BlastKing® products purchased in the USA are protected under the regular manufacturer’s warranty. The Ultramix series comes with a 2 year warranty. This warranty is intended to protect customers from any and all manufacturer defects from two years of purchase.
-
Page 3: Recording And Playback
• RECORDING AND PLAYBACK Your new Ultramix FX Series mixers include a built in 24-bit interface. For a seamless performance, please be sure to update your Windows OS to the most up to date drivers. Send 1 mono channel to your favorite recording software. - Page 4 FRONT AND REAR PANEL FUNCTION INDICATOR DIAGRAM ULTRAMIX-084FX and ULTRAMIX-124FX...
-
Page 5: Channel Fader
ULTRAMIX-164FX, ULTRAMIX-244FX and ULTRAMIX-324FX FRONT PANEL DESCRIPTIONS Switch/LED When the switch is turned on, the LED lights up, indicating that the device is supplying DC +48V phantom power to the XLR plug of the MIC/ 48V PHANTOM POWER SWITCH LINE mono input port. - Page 6 FRONT PANEL DESCRIPTIONS (cont.) Select one of 24 internal digital effects, then adjust the stereo output to the EFFECT CONTROL L/R stereo bus to apply the effect. A single nine-band equalizer allows the left and right channel output bands to EQUALIZER be adjusted to achieve the desired sound.
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Noise Characteristics 150 Ohms Impedance, 20 Hz to 20k Hz -126 dBu Residual Output Noise with Master Levels Off -80 to -95 dBu Frequency Response From Any Input to Any Output (gain +0db / -1db) 20Hz to 30kHz... -
Page 8: Physical Dimensions And Weight
TECHNICAL SPECIFICATIONS Meters Main L/R Mix Two Columns of 12 Segments Each: CLIP, +10, +7, + 4, +2, 0 (0 dBu) -2, -4, -7, -10, 20, -30 2 Sub Groups Format USB 2.0 1 Stereo Input 1 Mono Output A/D/A 24 bit, 44.1 kHz, 48 kHz,96 kHz, 192 kHz Phantom Power 48 VDC to Each Channel with Individual Switch... - Page 9 blastking.com...
- Page 10 2980 NW 74th Ave. Miami, FL 33122 Phone: (305) 591-8930...
