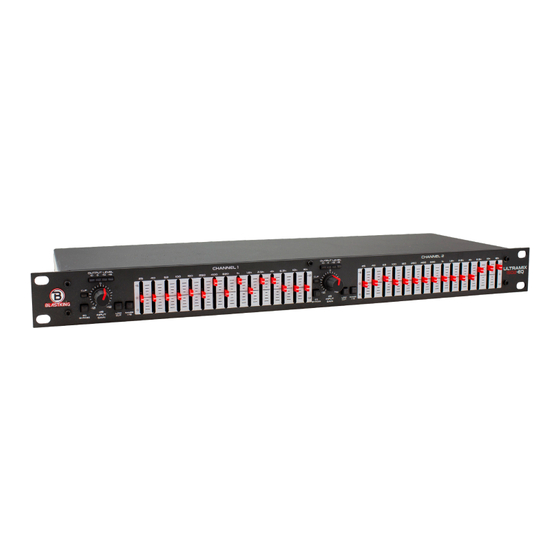

- Page 1 USER MANUAL ULTRAMIX 1502-EQ DUAL 15 - BAND GRAPHIC EQUALIZER blastking.com...
- Page 2 Please read this entire user manual before operating this unit BlastKing® products purchased in the USA are protected under the regular manufacturer’s warranty. The Ultramix series comes with a 2 year warranty. This warranty is intended to protect customers from any and all manufacturer defects from two years of purchase.
-
Page 3: Front Panel
FEATURES 4 LED Output Levels RF Filtered, Impedance Balanced Outputs • • Switchable Boost/Cut Ranges of ± 6 or ± 12dB XLR and 1/4” TRS Connectors • • Front Panel Bypass Switch Dynamic Range 108db • • 12dB Per Octave 50Hz Low-Cut Filters •... -
Page 4: Back Panel
BACK PANEL POWER CORD RECEPTACLE INPUT CONNECTORS Connects AC power to the equalizer. Two types of input connectors are provided for input connections: female locking XLR type connectors, and 1/4” tip-ring-sleeve phone 110-220VAC SWITCH jack connectors. The maximum input level that the equalizer can accept is typically +22 dBu (ref: 0.775Vrms). -
Page 5: Installation Considerations
INSTALLATION CONSIDERATIONS Hookups and Cabling: The ULTRAMIX1502-EQ equalizer is designed for nominal +4 dBu levels. The equalizer can be used with either balanced or unbalanced sources, and the out-puts can be used with either balanced or unbalanced loads, provided the proper cabling is used. -
Page 6: Specifications
SPECIFICATIONS ULTRAMIX 1502-EQ Inputs Connectors: 1/4" TRS, female XLR (pin 2 hot) Type: Electronically balanced/unbalanced, RF filtered Impedance: Balanced 40 kΩ, unbalanced 20 kΩ Max Input Level: >+21 dBu balanced or unbalanced CMRR: >40 dB, typically >55 dB at 1 kHz... - Page 7 2980 NW 74th Ave. Miami, FL 33122 Phone: (305) 591-8930...
