JOONG CHENN INDUSTRY CO., LTD.
Sales Office:
3F28, No.5, Shin-Yi Rd., Sec. 5, Taipei, Taiwan 110 R.O.C.
Tel: 886-2-27209980
Fax:886-2-27229750
www.steelflexfitness.com
MDR-1300.4
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Steelflex MDR-1300.4 and is the answer not in the manual?

Questions and answers

Related Manuals for MEGAPOWER Steelflex MDR-1300.4

Summary of Contents for MEGAPOWER Steelflex MDR-1300.4

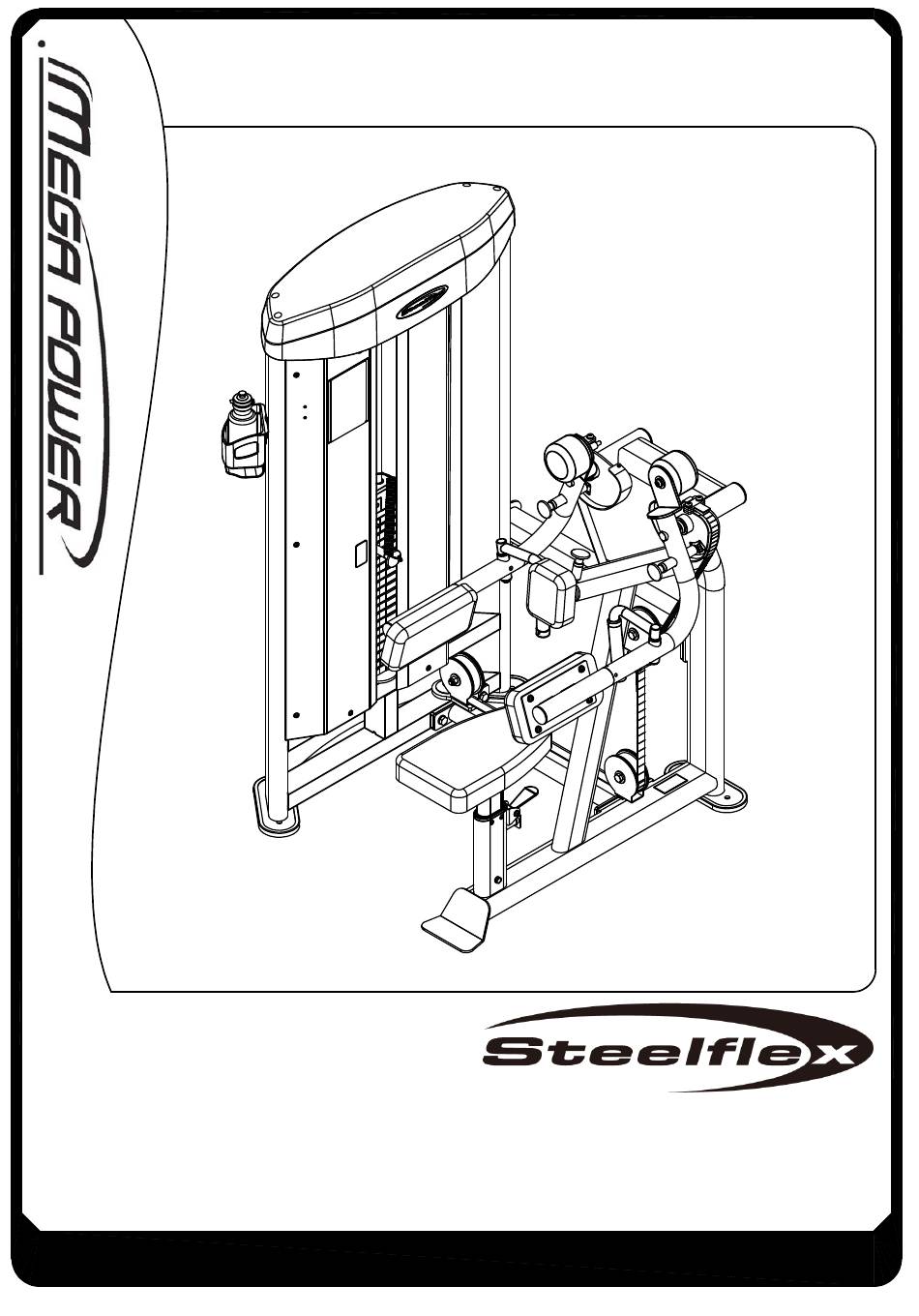

  • Page 1 JOONG CHENN INDUSTRY CO., LTD. Sales Office: 3F28, No.5, Shin-Yi Rd., Sec. 5, Taipei, Taiwan 110 R.O.C. Tel: 886-2-27209980 Fax:886-2-27229750 www.steelflexfitness.com MDR-1300.4 OWNER'S MANUAL...

  • Page 2: Hardware Illustration

    MDR1300 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x2-3/4"L PARTIAL QTY.2 (A2)ROUND INNER HEX SCREW 5/16"x1"L PARTIAL QTY.12 (A3)HEX BOLT 5/16"X1"L PARTIAL THREAD QTY.4 inch 2" 1" 3" 4" 5" 6" MDR1300.4-042020 Page...
  • Page 3 MDR1300 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C4)SPRING WASHER 5/16" QTY.16 (B1)NYLON LOCK NUT 1/2" QTY.2 (C1)1/2"(I.D.)FLAT WASHER Ø34 QTY.4 (C2)5/16"(I.D.)FLAT WASHER Ø24 QTY.4 (C3)5/16"(I.D.)FLAT WASHER Ø18 QTY.12 inch 2" 6" 1" 3" 4" 5" MDR1300.4-042020 Page...
  • Page 4 MDR1300 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (AA1)HEX BOLT 1/2"x2-3/4"L PARTIAL QTY.3 (AA2)ROUND INNER HEX SCREW M10x40L PARTIAL THREAD QTY.1 (AA3)ROUND INNER HEAD 3/8"x2"L PARTIAL QTY.1 (AA4)ROUND INNER HEX SCREW M6x16L PARTIAL THREAD QTY.16 inch 2" 1" 3" 4" 5" 6" MDR1300.4-042020 Page...
  • Page 5 MDR1300 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (BB1)NYLON LOCK NUT 1/2" QTY.3 (AA5)10 、 15 、 20LB PIN(8250-162) QTY.1 (AA6)ELASTIC BELT QTY.1 (BB2)NYLON LOCK NUT M10 QTY.1 (AA7)Ø5/16" FIXED PIN (8250-166) QTY.1 (AA8)ROUND HEAD PHILLIPS M4X12L PARTIAL THREAD QTY.2 inch 2" 6"...
  • Page 6 MDR1300 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (CC1)1/2"(I.D.)FLAT WASHER Ø34 QTY.4 (CC5)SPRING WASHER 3/8" QTY.1 (CC2)1/2"(I.D.)FLAT WASHER Ø25 QTY.2 (CC3)M6(I.D.)FLAT WASHER Ø19 QTY.16 (CC4)M10(I.D.)FLAT WASHER Ø19 QTY.2 inch 2" 6" 1" 3" 4" 5" MDR1300.4-042020 Page...
  • Page 7 ASSEMBLY INSTRUCTIONS MDR1300 HARDWARE ILLUSTRATION D1.Ø60 CAP COVER(8130-231)----------------------------------------- [2PCS] D2.Ø10X60L SHAFT(8210-156)------------------------------------------ [2PCS] D3.Ø38X26X1.5t CU WASHER(8520-008)---------------------------- [4PCS] D4.Ø50 ROUND END CAP (9211-020)--------------------------------- [2PCS] D5.Ø1" RUBBER PAD(9212-019)---------------------------------------- [2PCS] D6.108X15tX263L RUBBER PAD(9310-075)------------------------- [1PCS] D7.Ø115X50L PULLEY(9213-042B)------------------------------------- [2PCS] D8.3660mm (FMDR1300A1)----------------------------------------------- [1PCS] D9.2100mm (FMDR1300B)------------------------------------------------ [1PCS] NO MAGNET MDR1300.4-042020 Page...
  • Page 8 MDR1300 ASSEMBLY INSTRUCTIONS FARME HARDWARE ILLUSTRATION DD1.Ø3/4" SHAFT COLLAR(9211-147)------------------------------------------- [2PCS] DD2.Ø4" RUBBER COUNT(9310-017)-------------------------------------------- [2PCS] DD3.108X14.5tX263L RUBBER PAD(9310-075)-------------------------------- [2PCS] DD4.Ø115X50L PULLEY(9213-042B)---------------------------------------------- [3PCS] [1PCS] DD6.BOTTLE BRACKET(8388-025)------------------------------------------------ DD7.BOTTLE RACK(9260-320)------------------------------------------------------ [1PCS] DD8.BOTTLE(9260-123)--------------------------------------------------------------- [1PCS] [1PCS] DD11.TOP PLATE(8400-033)------------------------------------------------------------ DD12.3/4" SHAFT COLLAR(9211-167)------------------------------------------------ [2PCS] DD13.WEIGHT SELECTOR BAR(8210-216C)-------------------------------------- [1PCS] DD1.
  • Page 9 ASSEMBLY INSTRUCTIONS MDR1300 PARTS ILLUSTRATION SHEET A1 [1SET] B [1SET] C2 [1SET] 20MDR1300-A1 20MDR1300-C2 20MDR1300-E1 20MDR1300-K 20MDR1300-G 20MDR1300-I1 D2 [1SET] R [1SET] F [1SET] 6640-013 20MDR1300-D2 20MDR1300-K 20MDR1300-J1 S [1SET] H [1SET] T [1PCS] 6680-013 6680-014 8313-144 U [3SET] V[1PCS] L[3SET] 8311-117 9420-109...
  • Page 10 ASSEMBLY INSTRUCTIONS MDR1300 PARTS ILLUSTRATION SHEET O [2SET] M [1SET] N [1SET] 9131-029 9131-028 9121-085 Q1 [2SET] 280273 MDR1300.4-042020 Page...
  • Page 11 MDR1300 ASSEMBLY INSTRUCTIONS FARME PARTS ILLUSTRATION SHEET AA1 [1SET] AC1 [1PCS] 20MDR1300-H1 9220-017 AD [1PCS] AE [1SET] AF [1SET] 9220-018 9220-023 9211-148 AG [4SET] AH [1SET] 8331-057 8313-169 AJ1 [2PCS] AK[1PCS] AL[3SET] 8280-041 8331-056 8331-058 Ø3/4"X1243L MDR1300.4-042020 Page...
  • Page 12 ASSEMBLY INSTRUCTIONS MDR1300 FARME PARTS ILLUSTRATION SHEET AM [2PCS] 8313-144 AP [1PCS] AR [1PCS] 8311-117 8311-194 MDR1300.4-042020 Page...
  • Page 13 ASSEMBLY INSTRUCTIONS MDR1300 Above shows STEP 1 assembled and completed M10X25L CONE SCREW X4 MDR1300.4-042020 Page...
  • Page 14 ASSEMBLY INSTRUCTIONS MDR1300 Above shows STEP 2 assembled and completed 1/2"X1"L HEX BOLT X4 1/2" WASHER-Ø25 X4 STEP1 1/2"X1"L HEX BOLT X4 1/2" WASHER-Ø25 X4 M10X25L CONE SCREW X4 MDR1300.4-042020 Page...
  • Page 15 MDR1300 ASSEMBLY INSTRUCTIONS M10X25L CONE SCREW Step1. Above shows STEP 3 assembled and completed M10X25L CONE SCREW Step2. MDR1300.4-072020 Page...
  • Page 16 ASSEMBLY INSTRUCTIONS MDR1300 Above shows STEP 4 Step1. assembled and completed A2X8 C4X8 C3X8 Step2. D4X2 A2X4 C4X4 C3X4 C2X4 C4X4 A3X4 MDR1300.4-072020 Page...
  • Page 17 ASSEMBLY INSTRUCTIONS MDR1300 Above shows STEP 5 assembled and completed M10X25L ROUND BOLT X6 The tread side M10 SPRING WASHER X6 should be outward D2X2 The tread side should be outward Assemble Direction The belt should reserve 40mm extra length MDR1300.4-072020 Page...
  • Page 18 ASSEMBLY INSTRUCTIONS MDR1300 Above shows STEP 6 assembled and completed CC3X8 DD12 DD12 AA4X8 DD11 AA4X2 CC3X2 AA4X6 CC3X6 MDR1300.4-042020 Page...
  • Page 19 MDR1300 ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed DD13 M10X25L CONE SCREW 8130-231 8520-008 6640-011 8520-008 MDR1300.4-042020 Page...
  • Page 20 ASSEMBLY INSTRUCTIONS MDR1300 Above shows STEP 8 assembled and completed M10X25 ROUND BOLTX2 M10 SPRING WASHER X2 Adjust Belt Procedure: 1. Lift the selector rod a little and then insert the pin between first weight stack and top plate (Do not insert though the first hole of the rod), and there are 7 mm gap between top plate and first weight stack.
  • Page 21 ASSEMBLY INSTRUCTIONS MDR1300 Post Iocation Above shows STEP 9 assembled and completed M6X12L ROUND BOLT X4 M6 WASHER Ø14 X4 M6 WASHER Ø14 X5 M6X12L ROUND BOLT X5 MDR1300.4-042020 Page...
  • Page 22 ASSEMBLY INSTRUCTIONS MDM1300 M10X12L ROUND INNER HEAD X4 Above shows STEP 10 assembled and completed EXTRUDING Q1X2 M12X40L ROUND BOLTX2 M12 WASHER Ø34 X2 M12 SPRING WASHER X2 Note: When installing the shroud (AE), push both sides of the shroud toward center in order to bend it a little.
  • Page 23 ASSEMBLY INSTRUCTIONS Adjust Flat Belt Steps WEIGHT STACK PIN WEIGHT STACK PIN 1.When installing flat belt, please put 2.When weight stack pin put into 20 weight the weight stack pin into 4 weight stack, please do workout with the machine stack.
  • Page 24 Guide on Selector Rod Adjustment STEP 1 Selector Rod TOP PLATE WEIGHT STACK PIN Step 1 Place Selector Rod into Top Plate. Then put selector pin into the weight plate to fix the rod. STEP 2 STEP 3 3/8" SPRING WASHER ROUND ALLEN HEAD 3/8"x2"L Step 2 Step 3...
  • Page 25 project Part number Name Specification Quantity Remark MEGA POWER series 38-200 CAP round allen head 3/8"X2"L round allen head-CAP 38-SPWAS 8732003 3/8" spring washer JUNGLE GYM series 8210-216C 20 hole Selector Rod 8250-166 Ø7.9X137L 8250-162 weight stack pin Ø7X110L 8400-010 10LB weight stack plate 102x22tx280L 10LB 8400-033...
