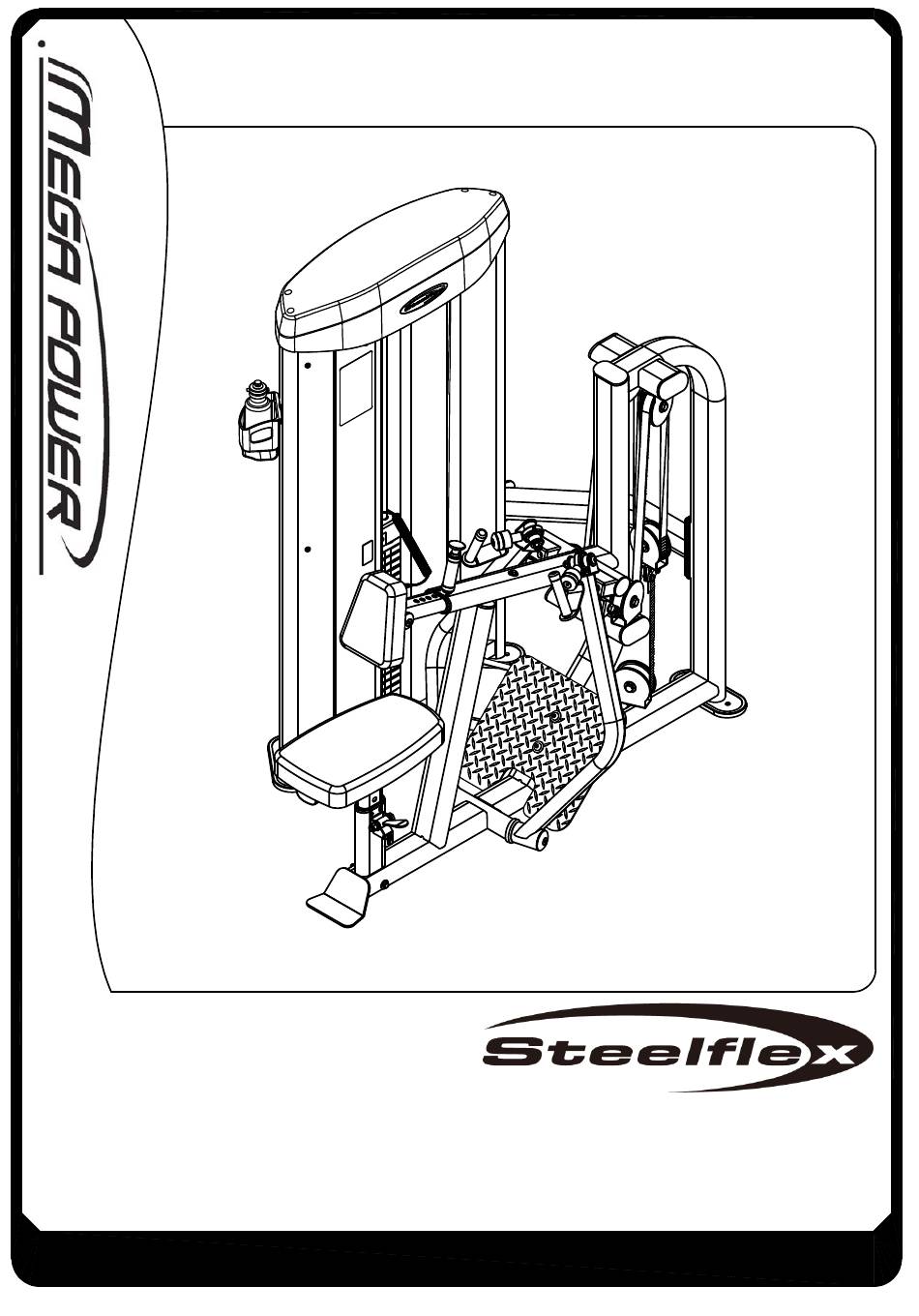

- Page 1 JOONG CHENN INDUSTRY CO., LTD. Sales Office: 3F28, No.5, Shin-Yi Rd., Sec. 5, Taipei, Taiwan 110 R.O.C. Tel: 886-2-27209980 Fax:886-2-27229750 www.steelflexfitness.com OWNER'S MANUAL MRM-1700.4...
- Page 2 MRM1700 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)ROUND INNER HEX SCREW 1/2"x3-3/4"L PARTIAL QTY.4 (A2)HEX BOLT 1/2"x2-3/4"L PARTIAL THREAD QTY.6 (A3)HEX BOLT 1/2"x2-1/2"L PARTIAL THREAD QTY.2 (A4)HEX BOLT 5/16"x2-1/4"L PARTIAL THREAD QTY.2 (A5)HEX BOLT 5/16""x1"L PARTIAL THREAD QTY.4 inch 2" 1" 3" 4"...
- Page 3 MRM1700 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C4)5/16"(I.D.)FLAT WASHER Ø18 QTY.4 (B1)NYLON LOCK NUT 1/2" QTY.12 (C5)SPRING WASHER 5/16" QTY.6 (C1)1/2"(I.D.)FLAT WASHER Ø34 QTY.20 (C2)1/2"(I.D.)FLAT WASHER Ø25 QTY.4 (C3)5/16"(I.D.)FLAT WASHER Ø24 QTY.2 inch 2" 6" 1" 3" 4" 5" MRM1700.4-112019 Page...
- Page 4 MOT1800 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (AA5)10 、 15 、 20LB PIN(8250-162) QTY.1 (BB1)NYLON LOCK NUT 1/2" QTY.3 (AA6)ELASTIC BELT QTY.1 (BB2)NYLON LOCK NUT M10 QTY.1 (AA7)ROUND HEAD PHILLIPS M4X12L PARTIAL THREAD QTY.2 (AA8) Ø7.9 PIN(8250-166) QTY.1 inch 2" 6" 1"...
- Page 5 MRM1700 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (AA5) 10 、 15 、 20LB PIN (8250-162) QTY.1 (AA6)ELASTIC BELT (F920003) QTY.1 (AA7)ROUND HEAD PHILLIPS M4X12L PARTIAL THREAD QTY.2 (AA8) Ø7.9 PIN(8250-166) QTY.1 inch 2" 6" 1" 3" 4" 5" MRM1700.4-112019 Page...
- Page 6 MRM1700 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (BB1)NYLON LOCK NUT 1/2" QTY.3 (CC3)M6(I.D.)FLAT WASHER Ø19 QTY.16 (BB2)NYLON LOCK NUT M10 QTY.1 (CC4)M10(I.D.)FLAT WASHER Ø19 QTY.2 (CC1)1/2"(I.D.)FLAT WASHER Ø34 QTY.4 (CC5)SPRING WASHER 3/8" QTY.1 (CC2)1/2"(I.D.)FLAT WASHER Ø25 QTY.2 inch 2" 6" 1" 3"...
- Page 7 ASSEMBLY INSTRUCTIONS MRM-1700 HARDWARE ILLUSTRATION D2.Ø60 CAP COVER(8130-231)----------------------------------------- [2PCS] D3.40X80X2t END CAP(9211-113)-------------------------------------- [2PCS] D4.50X100X56 RUBBER PAD(9214-038)----------------------------- [2PCS] D5.108X15tX263L RUBBER PAD(9310-075)------------------------- [1PCS] D6.Ø115X50L PULLEY(9213-042B)------------------------------------- [6PCS] D7.3950mm (FMRM1700A)------------------------------------------------ [1PCS] D8.3780mm (FMRM1700B1)---------------------------------------------- [1PCS] NO MAGNET MRM1700.4-112019 Page...
- Page 8 MRM1700 ASSEMBLY INSTRUCTIONS FARME HARDWARE ILLUSTRATION DD1.Ø3/4" SHAFT COLLAR(9211-147)------------------------------------------- [2PCS] [2PCS] DD2.Ø4" RUBBER COUNT(9310-017)-------------------------------------------- DD3.108X14.5tX263L RUBBER PAD(9310-075)-------------------------------- [2PCS] DD4.Ø115X50L PULLEY(9213-042B)---------------------------------------------- [3PCS] DD6.BOTTLE BRACKET(8388-025)------------------------------------------------ [1PCS] [1PCS] DD7.BOTTLE RACK(9260-320)------------------------------------------------------ DD8.BOTTLE(9260-123)--------------------------------------------------------------- [1PCS] DD11.TOP PLATE(8400-033)------------------------------------------------------------ [1PCS] [2PCS] DD12.Ø3/4" SHAFT COLLAR(9211-167)------------------------------------------ [1PCS] DD13.WEIGHT SELECTOR BAR(8210-216C)-------------------------------------- DD1.
- Page 9 ASSEMBLY INSTRUCTIONS MRM1700 PARTS ILLUSTRATION SHEET A [1SET] B [1SET] C [1SET] 20MRM1700-E 20MRM1700-F 26MRM1700C1 20MRM1700-I 20MRM1700-B 20MRM1700-A 280229 D [1SET] E [1SET] 20MRM1700-G 20MRM1700-H G [1SET] H [1SET] I [1SET] 20MRM1700-J 8370-038 6680-011 6440-012 J [1SET] L[3PCS] 8312-062 8311-117 MRM1700.4-112019 Page...
- Page 10 ASSEMBLY INSTRUCTIONS MRM-1700 PARTS ILLUSTRATION SHEET O [1PCS] M [2SET] N [1SET] 9420-113 8311-116 8313-144 P [1PCS] Q [1SET] 9121-079 9131-026 MRM1700.4-112019 Page...
- Page 11 MRM1700 ASSEMBLY INSTRUCTIONS FARME PARTS ILLUSTRATION SHEET AA1 [1SET] AC [1PCS] 9220-016 6610-013 6640-011 AD1 [1PCS] AE [1SET] AF [1SET] 9220-052 9220-023 9211-148 AG [4SET] AH [1SET] 8331-057 8313-169 AJ1 [2PCS] AK[1PCS] AL[3SET] 8280-042 8331-056 8331-058 Ø3/4"X1433L MRM1700.4-112019 Page...
- Page 12 ASSEMBLY INSTRUCTIONS MRM1700 FARME PARTS ILLUSTRATION SHEET AM [2PCS] 8313-144 AP [1PCS] AR [1PCS] 8311-117 8311-194 63.5 63.5 MRM1700.4-112019 Page...
- Page 13 ASSEMBLY INSTRUCTIONS MRM1700 Above shows STEP 1 assembled and completed M10X25L CONE SCREW X4 MRM1700.4-112019 Page...
- Page 14 ASSEMBLY INSTRUCTIONS MRM-1700 Above shows STEP 2 assembled and completed 1/2"X1"L HEX BOLT X2 1/2" WASHER-Ø25 X2 1/2"X1"L HEX BOLT X2 1/2" WASHER-Ø34 X2 D4X2 1/2"X1"L HEX BOLT X4 1/2" WASHER-Ø25 X4 3/8"X2"L ROUND INNER HEAD X4 M10X25L CONE SCREW X4 MRM1700.4-112019 Page...
- Page 15 ASSEMBLY INSTRUCTIONS MRM-1700 Above shows STEP 3 assembled and completed MRM1700.4-112019 Page...
- Page 16 ASSEMBLY INSTRUCTIONS MRM-1700 Above shows STEP 4 assembled and completed C4X4 C5X4 A5X4 C3X2 C5X2 A4X2 M10X25L CONE SCREW X4 M10X25L CONE SCREW X4 MRM1700.4-112019 Page...
- Page 17 ASSEMBLY INSTRUCTIONS MRM-1700 Above shows STEP 5 assembled and completed B1X2 C2X2 C2X2 A3X2 M10X25L ROUND BOLT X4 The tread side M10 SPRING WASHER X4 should be outward MRM1700.4-112019 Page...
- Page 18 ASSEMBLY INSTRUCTIONS MRM1700 Above shows STEP 6 assembled and completed CC3X8 DD12X2 DD1X2 AA4X8 AJ1X2 DD11 AA4X6 CC3X6 MRM1700.4-112019 Page...
- Page 19 MRM1700 ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed DD13 MRM1700.4-112019 Page...
- Page 20 ASSEMBLY INSTRUCTIONS MRM-1700 Above shows STEP 8 assembled and completed PART #G The belt should reserve 40mm extra length M10 SPRING WASHER X2 M10X25L ROUND BOLT X2 The tread side should be outward MRM1700.4-112019 Page...
-
Page 21: Detail View
ASSEMBLY INSTRUCTIONS MRM1700 Above shows STEP 9 assembled and completed The tread side should be outward M10X25L ROUND BOLT X2 M10 SPRING WASHER X2 DETAIL VIEW Adjust Belt Procedure: 1. Lift the selector rod a little and then insert the pin between first weight stack and top plate (Do not insert though the first hole of the rod), and there are 7 mm gap between top plate and first... - Page 22 ASSEMBLY INSTRUCTIONS MRM1700 Above shows STEP 10 assembled and completed STEP1. STEP2. AA7 X2 M6 WASHER Ø14 X9 M6X12L ROUND BOLT X9 MRM1700.4-112019 Page...
- Page 23 ASSEMBLY INSTRUCTIONS MRM1700 Above shows STEP 11 assembled and completed MRM1700.4-112019 Page...
- Page 24 ASSEMBLY INSTRUCTIONS Adjust Flat Belt Steps WEIGHT STACK PIN WEIGHT STACK PIN 1.When installing flat belt, please put 2.When weight stack pin put into 20 weight the weight stack pin into 4 weight stack, please do workout with the machine stack.
- Page 25 Guide on Selector Rod Adjustment STEP 1 Selector Rod TOP PLATE WEIGHT STACK PIN Step 1 Place Selector Rod into Top Plate. Then put selector pin into the weight plate to fix the rod. STEP 2 STEP 3 3/8" SPRING WASHER ROUND ALLEN HEAD 3/8"x2"L Step 2 Step 3 Screw the 3/8”x2”L Round Allen Head Place the selector pin to each weight plate into Top Plate but not tighten it up. (5,10,15,20….) to check the smoothness. Rotate the Selector Rod slightly or move the 3/8”x2”L Round Allen Head to left and right and repeat Step 3.
- Page 26 project Part number Name Specification Quantity Remark MEGA POWER series 38-200 CAP round allen head 3/8"X2"L round allen head-CAP 38-SPWAS 8732003 3/8" spring washer JUNGLE GYM series 8210-216C 20 hole Selector Rod 8250-166 Ø7.9X137L 8250-162 weight stack pin Ø7X110L 8400-010 10LB weight stack plate 102x22tx280L 10LB 8400-033...
