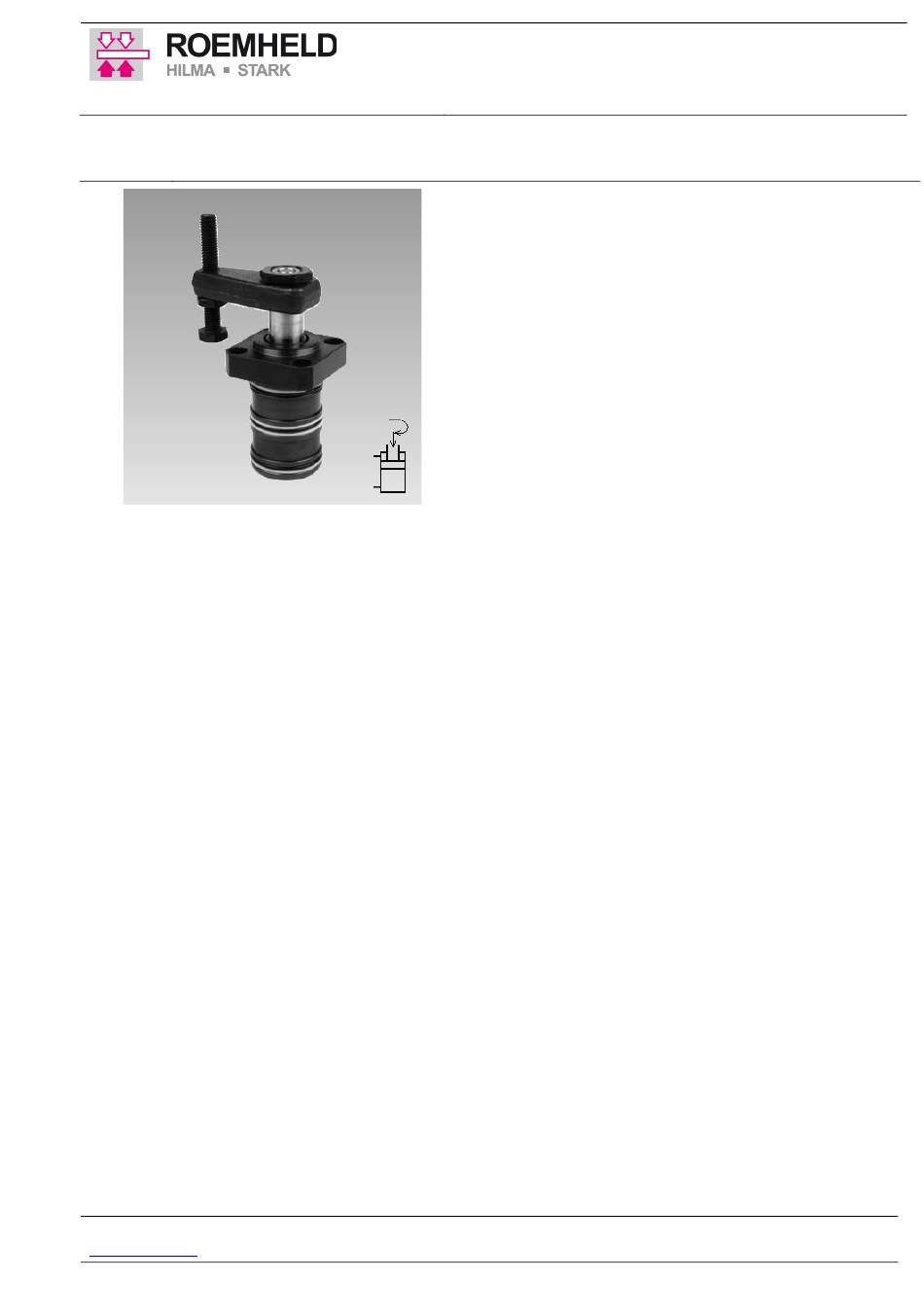

Swing clamps
cartridge type, overload protection device double acting
Table of contents
1 Description of the product
2 Validity of the documentation
3 Target group of this document
4 Symbols and signal words
5 For your safety
6 Application
7 Installation
8 Start up
9 Maintenance
10 Trouble shooting
11 Accessory
12 Technical characteristics
13 Storage
14 Disposal
15 Declaration of manufacture
Römheld GmbH • Postfach 1253 • 35317 Laubach • Germany • Tel.: +49 (0)6405 / 89-0 • Fax: +49 (0)6405 / 89-211
www.roemheld.de
Subject to change without notice! Translation of the original German document
1 Description of the product
Double-acting swing clamp with overload protection device.
The most important characteristics are as follows:
•
Overload protection device
The overload protection device is a spring-loaded disen-
gageable coupling between piston and helix rod that pro-
tects the swing mechanism against damage in case of
- blocked swing motion
- too high swing speed
- improper fixing of clamping arm
•
FKM wiper
This wiper has a high chemical resistance when using ag-
gressive cutting fluids.
2 Validity of the documentation
This document applies to the following products:
Swing clamps of data sheet B 1.8803. The following types or
part numbers are concerned:
•
1893-102, -122, -132, -202, -222, -232, -242, -302, -322, -
332, -402, -422, -432, -442
•
1895-102, -122, -132, -202, -222, -232, -242, -302, -322, -
1
332, -402, -422, -432, -442
•
1896-102, -122, -132, -202, -222, -232, -242, -302, -322, -
1
332, -402, -422, -432, -442
•
1
1897-102, -122, -132, -202, -222, -232, -242, -302, -322, -
332, -402, -422, -432, -442
2
as well as their versions with metallic wiper 189X-XXXM.
2
2 3 Target group of this document
•
Specialists, fitters and set-up men of machines and installa-
2
tions with hydraulic expert knowledge.
6
Qualification of the personnel
7
Expert knowledge means that the personnel must
•
8
be in the position to read and completely understand tech-
nical specifications such as circuit diagrams and product-
8
specific drawing documents,
•
have expert knowledge (electric, hydraulic, pneumatic
8
knowledge, etc.) of function and design of the correspond-
8
ing components.
9
An expert is somebody who has due to its professional educa-
tion and experiences sufficient knowledge and is familiar with
10
the relevant regulations so that he
•
can judge the entrusted works,
•
can recognize the possible dangers,
•
can take the required measures to eliminate dangers,
•
knows the acknowledged standards, rules and guidelines of
the technology.
•
has the required knowledge for repair and mounting.
Operating Manual
BA_B18803_EN
Issue 05-2024
