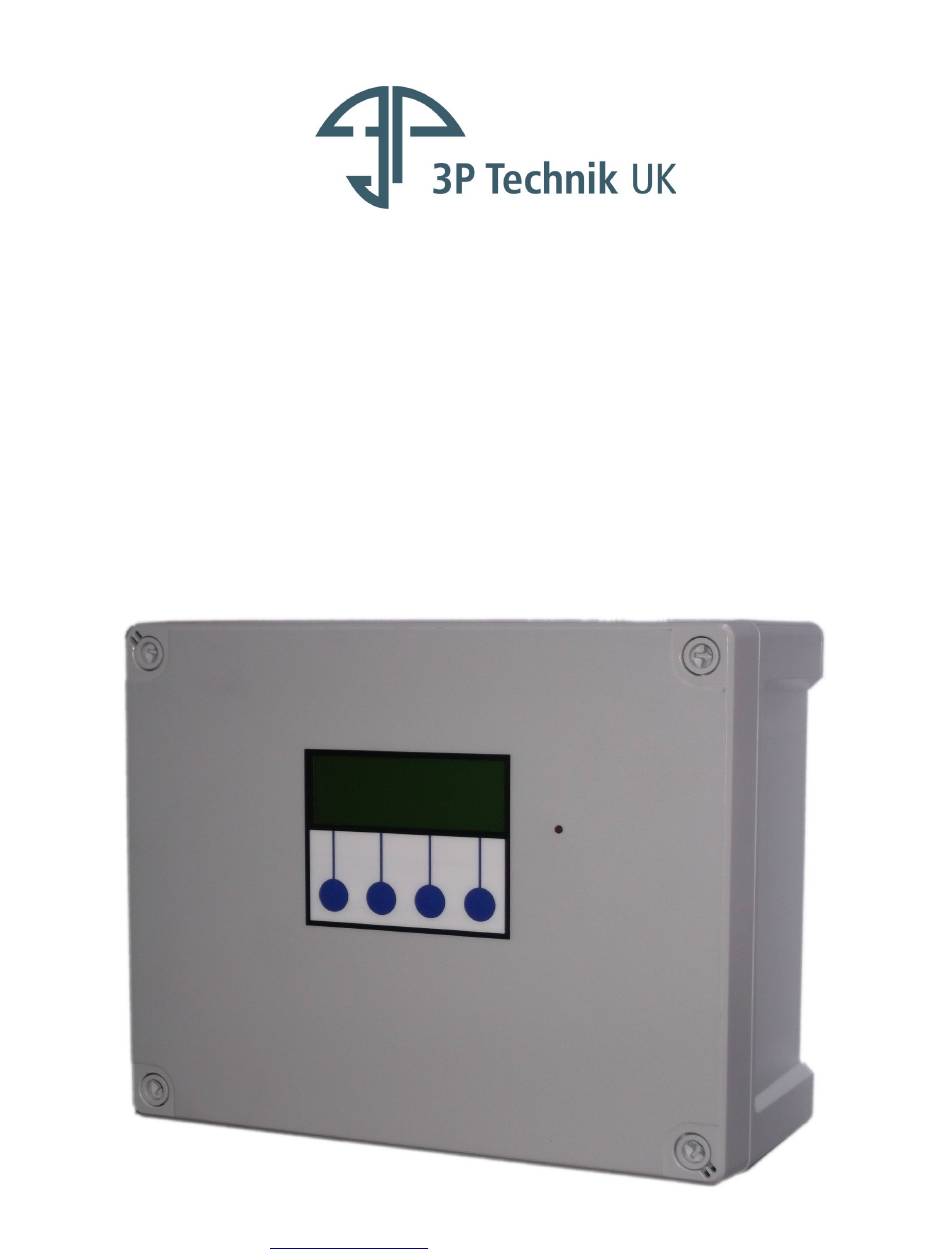

- Page 1 3P P120/P320 Series Pump Controller Installation and Operation Manual P Series v1.81 www.3ptechik.co.uk 24/04/25 Page 1 of 25...
-
Page 2: Table Of Contents
Table of Contents Installation............................3 Safety..............................3 Installation Constraints.........................3 Control Panel Mounting........................5 Mains Power Connection........................6 Pump Power Connections........................6 Supply Tank Level Sensor and connection..................7 BMS connection..........................7 Operation............................8 Safety Considerations..........................8 Description of Operation........................9 Control Panel Operations........................10 Initial Startup..........................11 Startup Screen Menus and Functions.....................11 Tank Level Display........................12 Accessing the Menu Options......................12 Menu Options, Button 1 - Configuration and Diagnostics.............12... -
Page 3: Installation
Tank Level Sensor..........................24 Line Pressure Sensor...........................25 Switched Outputs (pump control).......................25 Installation Safety Mains Voltage – There are exposed electrical conductors inside this appliance. This appliance must be installed and serviced by a competent electrical technician to the current requirements of BS7671 and IEEE recommendations. - Page 4 The control panel cannot be mounted outside, it is splash proof not weather resistant. Voltage drop will affect the cable size needed to take power to your pumps. Over very long runs, you may find it more economical to install contactors near to the pumps, allowing you to control the pumps with a sensible cable size.
-
Page 5: Control Panel Mounting
Control Panel Mounting If your control panel has been supplied with wall mounting brackets, these will attach to the rear of the panel and allow easy wall fixing without having to open the panel. If not then follow the instructions below. Having selected a suitable location, unlock the 4 locking screws on the corners of the front cover and withdraw the front panel. -
Page 6: Mains Power Connection
Mains Power Connection The power supply to the control panel enters via a cable gland on the bottom right of the housing. A 20A supply cable is provided with the panel. If you need to change this, insert the cable, connect to the incoming power terminal on the right of the PCB, and tighten the cable gland. -
Page 7: Supply Tank Level Sensor And Connection
Supply Tank Level Sensor and connection Connect the tank level sensor as follows Pressure Transmitter (P320) - Connect to the socket on the underside of the control panel. The pressure transmitter should be lowered onto the bottom of the water tank and not suspended. Float Switch –... -
Page 8: Operation
Operation Safety Considerations Mains Voltage – There are exposed electrical conductors inside this appliance. This appliance must be installed and serviced by a competent electrical technician to the current requirements of BS7671 and IEEE recommendations. Before servicing this appliance, normal safe isolation procedures should be implemented. -
Page 9: Description Of Operation
In the event of a power surge, fuses are ceramic with high (1250A) rupture current and MOV protection/track layout is designed to increase repair probability. PCB repairs are available and most component parts are stocked by 3P Technik UK. P Series v1.81 www.3ptechik.co.uk... -
Page 10: Control Panel Operations
Control Panel Operations P Series v1.81 www.3ptechik.co.uk 24/04/25 Page 10 of 25... -
Page 11: Initial Startup
Initial Startup Upon first applying power, The following screen will be displayed. Main Pumps Single Dual Press either button 1 or button 4 to select a single or dual pump configuration. The system now reboots. If no analogue level sensor is detected the system reconfigures to float switch mode and reboots. The LCD panel will display a startup logo followed by automatic calibration of the tank level sensor for approximately 3 seconds. -
Page 12: Tank Level Display
Tank Level Display The current supply tank level will be shown in %, and is measured by a submerged pressure sensor at the bottom of the tank. The scale is adjusted automatically as the control panel learns the maximum and minimum water levels within the tank, with 0% being the minimum level allowed (pump cut-off level) and 100% being the highest water level detected. -
Page 13: Tank Menu (Pf320)
Tank Menu (PF320) Supply Tank Menu Reset Set min Pump lvl ctrl Exit All options under this menu are related to operations within the water tank. Note - If an analogue level sensor is connected to PF120 the system will automatically re-configure to PF320 and reboot. -
Page 14: Pump Control (Pump Ctrl)
Pump Control (Pump Ctrl) This is a submenu containing functions related to pump selection and pressure. Providing 2 sub- menus as shown. Pump Control Menu Pressure Pumps Alarm Exit Pump Selection (Pumps) Here you can select which pump you would like to use. The default setting is Pump 1. If your system has 1 pump only then you should leave it on this setting. -
Page 15: Pump Pressure Adjustment
Pump Pressure Adjustment Here you can select a pump and alter its start and stop pressures. It is usual to set different start pressure for each pump and have them both stop when they reach the same upper pressure, but you can set them to start and stop at any pressure you want. -
Page 16: Pump Pressure Alarm
pressure, it makes sense to select a pump on the premise that you will be using it with it's most efficient performance characteristics. The pressure vessel(s) on the system should be charged to or just below the lowest cut-in pressure (min) of the pumps, i.e. -
Page 17: Output Testing
Line 1, Switched inputs 1 to 5 (used on rainwater harvesting/tank control models only) Line 2, Tank level sensor shown in % Line 3, Delivery line pressure Note that tank level here is shown in cm not %. The level shown here is not subject to calibration and displays the actual tank level rather than a proportional reading. -
Page 18: Fault Code List
Fault Code List 1. Unused 2. Pump 1 Faulty or Insufficient 3. Unused 4. Unused 5. Unused 6. Tank Level Sensor Fault 7. Discharge Line Pressure Sensor Fault 8. Pump 2 Faulty or Insufficient 9. Unused 10. Unused 11. Pump 1 Disabled – Changed to Pump 2 12. -
Page 19: Troubleshooting
Troubleshooting Refer to the Safety instructions. No electrical works should be carried out other than by an appropriately qualified Electrician. Permits to work may be required at local site conditions. If in any doubt, consult your system supplier. Problem Probable Cause Solutions No Power –... - Page 20 error 6) Connected wrongly Check wiring polarity and correct if needed Sensor faulty Test with loop calibrator, replace sensor if necessary Input circuit faulty Test with loop calibrator, replace PCB if necessary Tank Level sensor Cable vent tube blocked or Ensure vented section of cable reads incorrectly sealed...
- Page 21 should be ignored). Pump 2 Insufficient or Pump not connected Check wiring Faulty Pump cannot keep up with Replace with correctly sized demand pump Pump faulty Replace pump (this fault can show temporarily when filling a large header tank for the first time, in which case it should be ignored).
-
Page 22: Fuse Listing
Fuse Listing F1 – 500mA 20mm F2 – 1A 20mm F3 – 10A 20mm F4 – 10A 20mm F5 – 10A 20mm F6 – 10A 20mm All fuses are ceramic with 1250A rupture current, this is to ensure minimal damage in the event of a high current surge such as a lightning strike to the pump set. -
Page 23: Inputs (Left To Right) - Con1
Inputs (left to right) – Con1 1 – Supply tank float switch (P120) 2 – unused 3 – unused 4 – unused 5 – unused Pressure Sensor Inputs (left to right) Con3 (left) – Water tank level sensor (P320) Con4 (right) – Line pressure sensor BMS Output Type –... -
Page 24: Warranty
The warranty is limited to the repair, replacement or cost of replacement of the product at the discretion of 3P Technik UK Limted and does not cover inconvenience or consequential losses. We do not guarantee continuity of operation of any product under any circumstances. - Page 25 Line Pressure Sensor Type Pressure Transmitter 2 wire Measurement Range 0-10 bar Input 8 to 30 Vdc Output 4-20mA Switched Outputs (pump control) Voltage 230-240vac 50hz (exact voltage as supply voltage) Current 10A (per output) P Series v1.81 www.3ptechik.co.uk 24/04/25 Page 25 of 25...
