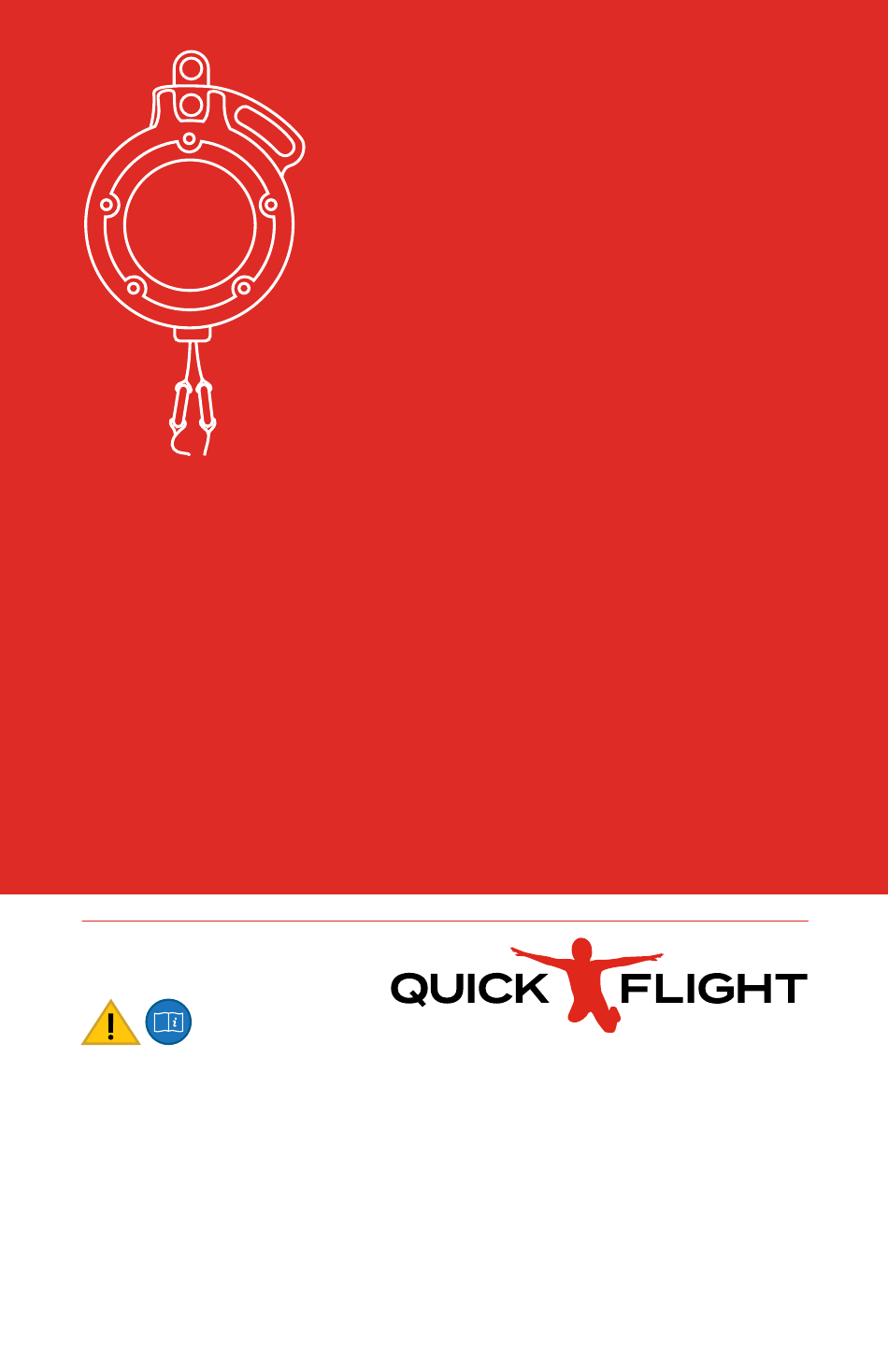

QUICKFLIGHT /
QUICKFLIGHT XL
FREE FALL DEVICE
Operator Manual
Models: QF150-12A / QFXL150-20A
NOTE TO OWNERS, INSTALLERS, AND OPERATORS
Always Read Instructions Before Use
The Operator Manual contains information relating to the proper installation, operation,
and maintenance of the QuickFlight Free Fall Device and includes all product registration
and warranty information. This document must be supplied to the Owner/Operator after
installation. Ensure that this Operator Manual is readily available to responsible parties at
all times.
Head Rush Technologies QuickFlight Free Fall Device Manual
P/N 18310-06
Head Rush Technologies products are covered by a number of patents, including
U.S. Patents 8,490,751; 8,851,235; 9,016,435 and D654,412 & corresponding patents/applications in the USA and in other
countries worldwide.
Advertisement
Table of Contents
Related Manuals for head rush technologies QUICKFLIGHT
Summary of Contents for head rush technologies QUICKFLIGHT
- Page 1 Always Read Instructions Before Use The Operator Manual contains information relating to the proper installation, operation, and maintenance of the QuickFlight Free Fall Device and includes all product registration and warranty information. This document must be supplied to the Owner/Operator after installation.
- Page 3 3.0 CERTIFICATION Standards NOTE If the QuickFlight Free Fall Device is resold outside of the country of desti- nation, the reseller must provide instructions for use, service, maintenance and repair in the language of the country of use. The QuickFlight and the QuickFlight XL Free Fall Devices can be used as a climbing/descent/free fall system device only in combination with other components.
-
Page 4: Specifications
5.0 SPECIFICATIONS Every QuickFlight Free Fall Device comes with two Upper Webbings and a RipCord assembly pre-installed. The Owner should keep the original packaging to use for storage and shipping of the device. ALL QUICKFLIGHT MODELS IN ACCORDANCE WITH EN 341:2011-1A AND... - Page 5 Nozzle to Platform MODEL MINIMUM MAXIMUM ALL MODELS 1.75 m (5.7 ft) 2.50 m (8.2 ft) QuickFlight Standard Free Fall Device, QF150-12A MODEL MINIMUM MAXIMUM LOW MOUNT UPPER WEBBINGS & 6.0 m (19.7 ft) 8.3 m (27.2 ft) 1 M RIPCORD 12 M UPPER WEBBINGS &...
- Page 6 6.0 QUICKFLIGHT PARTS Handle / Secondary Primary Mounting Casing Mounting Point (Red) Point (Black) QuickFlight Device Side Cover Side Cover (Back) (Front) Upper Webbing RipCord Webbing Nozzle Webbing Connection Rings OPA Jacket Hand Grip Primary Attachment Carabiner RipCord Bungee Secondary...
-
Page 7: Mounting Diagram
The QuickFlight Free Fall Device provides color-coded mounting points to en- sure that it hangs centrally and vertically with the webbing line nozzle pointing down. The black Primary Mounting Point should be used to hold the weight of the device and all associated forces. The red Secondary Mounting Point should be connected for redundancy using hardware that can withstand all associated forces, but with no tension during normal operation. -
Page 8: Location Diagram
8.2.8 LOCATION DIAGRAM Jump Direction NOZZLE TO PLATFORM 1.75m - 2.5m MINIMUM Any areas that may come in contact with the participant must be padded or protected. NOZZLE TO GROUND Mounting height range varies. See limits for device and webbing configuration.
