WAC TL35 Series Installation Instructions Manual

Installation Precautions:
1. Please read through the Instructions before installation.
2. Fixtures are designed for use on W2 three phase track systems. They may also be used on other
manufacturer's brand of compatibility track. Matching track parameters: Input voltage: AC 220-240V,
Maximum current: 16A.
3. The fixture has 0-10V dimming function. To prevent the fire of the track system, it is strictly
prohibited to connect the track dimming wire to the mains.
4. The product should be installed by a professional electrician.
5. Suit for dry location, do not install in damp or wet locations.
6. The fixtures need to undergo compatibility testing with the dimming system in advance.
7. Please keep this Instruction properly for future reference.
Attention: To prevent electric shock and damage to the fixture, please turn off the power before
installing, maintaining, or replacing accessories. It is not allowed to install with electricity.

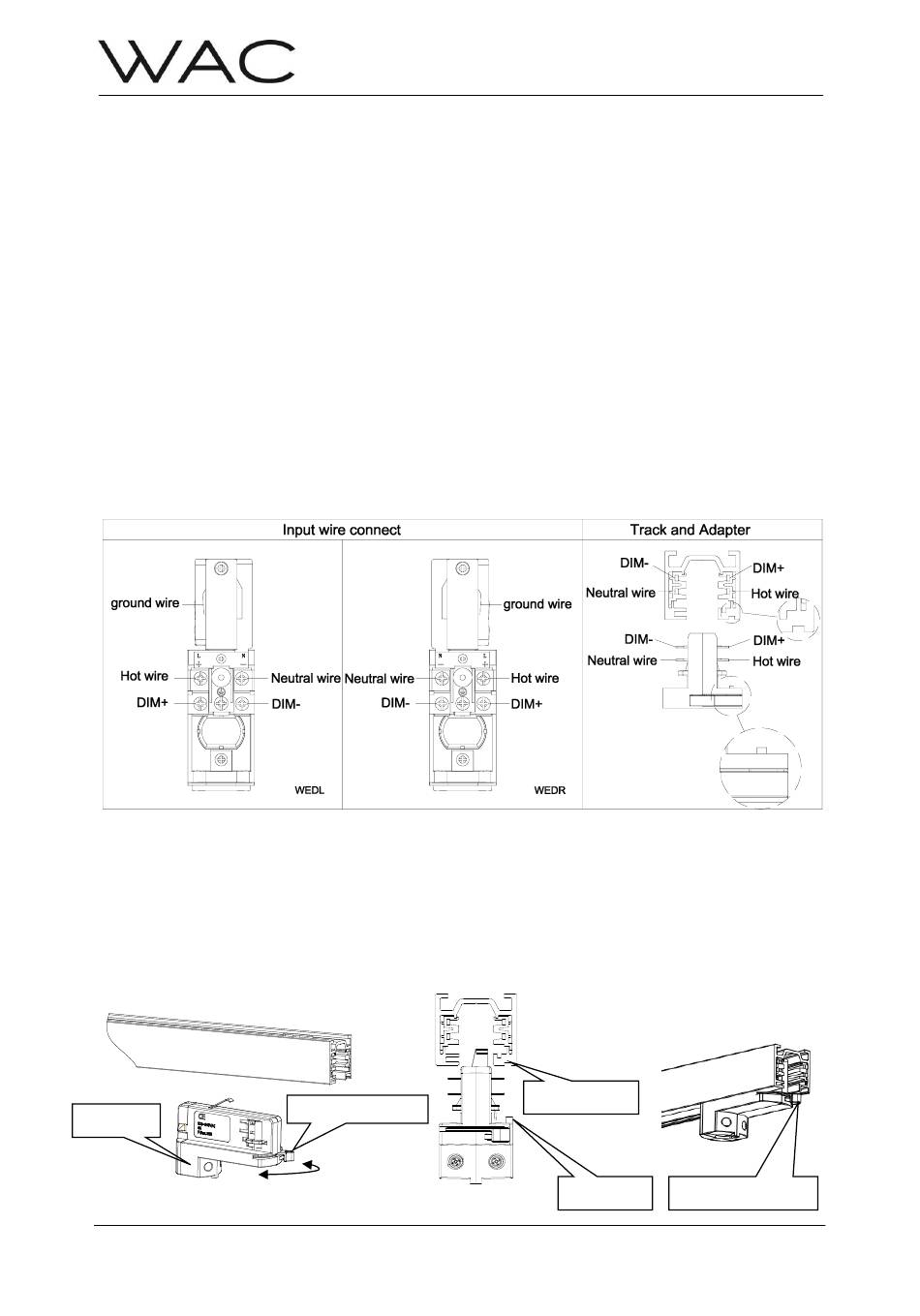

Schematic diagram of track electrification:
The lamp has dimming function of 0-10V. Please ensure that the wiring of the rail power inlet is consistent
with the diagram below：
Installing adapter on track:
1. Before installation, ensure that the conductive sheet is in a recycled state (completely hidden inside the
adapter), and ensure that the adapter convexity is on the same side as the track groove, as shown in the
following figure:
2. After the adapter is inserted into the track, forcefully pull the "conductive lever" clockwise to the buckle
for conduction (with a noticeable "click" sound).
Note: Removing the adapter is the opposite of installing the adapter program.
