ATS9628 User Manual

16-Bit, 2 Channel, 250 MS/s

Waveform Digitizer for PCI Express Gen 2 Bus

User Manual Version 1.4

Written for Hardware Version 1.4

April 2025 Edition

Table of Contents

Need help?

Do you have a question about the ATS9628 and is the answer not in the manual?

Questions and answers

Summary of Contents for AlazarTech ATS9628

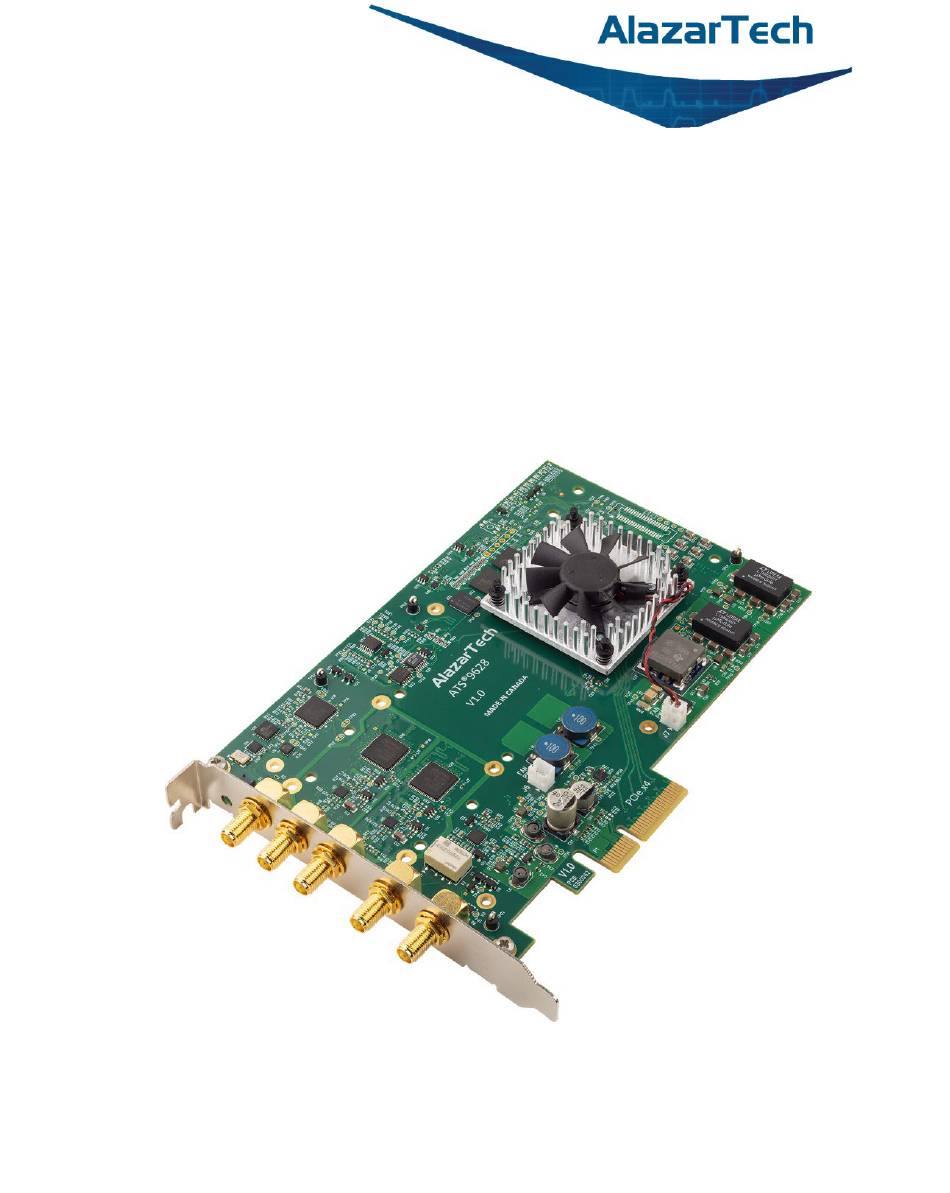

Page 1 ATS9628 User Manual 16-Bit, 2 Channel, 250 MS/s Waveform Digitizer for PCI Express Gen 2 Bus User Manual Version 1.4 Written for Hardware Version 1.4 April 2025 Edition...
Page 2 Canada H9R 4S2 Telephone: (514) 426-4899 Fax: (514) 426-2723 E-mail: sales@alazartech.com Web site: www.alazartech.com To comment on the documentation for ATS9628, send an e-mail to support@alazartech.com Information required when contacting AlazarTech for technical support: Owned by: Serial Number: Purchase Date: Purchased From:...
Page 3 The reader should consult AlazarTech if errors are suspected. In no event shall AlazarTech be liable for any damages arising out of or related to this document or the information contained in it. The latest user manual can be found on the AlazarTech website at www.alazartech.com/en/downloads/.
Page 4 LIABLE FOR DAMAGES RESULTING FROM LOSS OF DATA, PROFITS, USE OF PRODUCTS, OR INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF ADVISED OF THE POSSIBILITY THEREOF. This limitation of the liability of AlazarTech will apply regardless of the form of action, whether in contract or tort, including negligence. Any action against AlazarTech must be brought within one year after the cause of action accrues.
Page 5 Copyright © 2025 Alazar Technologies Inc. Warning Regarding Use of AlazarTech Products ALAZARTECH PRODUCTS ARE NOT DESIGNED WITH COMPONENTS AND TESTING FOR A LEVEL OF RELIABILITY SUITABLE FOR USE IN OR IN CONNECTION WITH SURGICAL IMPLANTS OR AS CRITICAL COMPONENTS IN ANY LIFE SUPPORT SYSTEMS WHOSE FAILURE TO PERFORM CAN REASONABLY BE EXPECTED TO CAUSE SIGNIFICANT INJURY TO A HUMAN.
Page 6: Compliance
FCC Class A products can be operated. FCC Class B products display either an FCC ID code, starting with the letters EXN, or the FCC Class B compliance mark. Consult the FCC website https://www.fcc.gov/ for more information. ATS9628 User Manual...
Page 7 Classification requirements are the same for the Federal Communications Commission (FCC) and Innovation, Science and Economic Development (ISED) Canada. Changes or modifications not expressly approved by AlazarTech Inc. could void the user’s authority to operate the equipment under the FCC/ISED Rules. Class A...
Page 8 (SVHC), Authorizations, and Restrictions lists. REACH Compliance AlazarTech verifies its supply chain against the latest REACH requirements. A compliance statement is usually available within 6 months of release of the European Chemicals Agency (ECHA) updated substance of very high concern (SVHC), Authorizations, and Restrictions lists.
Page 9: Table Of Contents
What You Need to Get Started ............10 Unpacking .................. 11 Installing the ATS9628 in Windows ..........12 Installing the ATS9628 in a Linux System ........29 Updating ATS9628 Driver in Windows ..........34 Updating ATS9628 Driver in Linux ..........38 Updating ATS9628 Firmware in Windows ........
Page 13: About Your Ats9628
Copyright © 2025 Alazar Technologies Inc. About Your ATS9628 Thank you for your purchase of an ATS9628. This PCI Express (PCIe Gen 2 x4) based waveform digitizer has the following features: • Two 16-bit resolution analog input channels • Real-time sampling rate of 250 MS/s to 1 MS/s with internal clock and 250 MS/s to 50 MS/s with external clock •...
Page 14: Ats9628 Export Control Classification
ECCN 3A002.h. For sales where the ultimate country destination is Canada or U.S., no export permit is required unless the end-use of ATS9628, in part or in its entirety, is related to the development or deployment of weapons of mass destruction.
Page 15: Acquiring Data With Your Ats9628
ATS9628 or interactively with the AlazarDSO software for Windows or with AlazarFrontPanel for Linux. Note that AlazarFrontPanel has a limited feature set. If you want to integrate the ATS9628 in your test and measurement or embedded OEM application, you can program the digitizer using C/C++, Python, MATLAB ®...
Page 16 Interactively Controlling your ATS9628 The AlazarDSO oscilloscope emulation software for Windows allows you to interactively control your ATS9628 as you would a desktop oscilloscope. Under Linux, the AlazarFrontPanel application is available. Note that Alazar Front Panel has a limited feature set.
Page 17 AlazarTech designed ATS-GPU to eliminate this software bottleneck so that data can be moved from AlazarTech digitizers to GPUs and from GPUs to user buffers at full PCIe bus speeds. Once the data is available in GPU memory, many types of digital signal processing (DSP) can be done on this data at near-hardware speeds.
Page 18 The non-uniform FFT requires a linearization function that describes how the wavelength of the SS-laser evolves during a sweep of the spectrum. Linearization function can either be user defined or measured directly from a k-clock signal. ATS9628 User Manual...
Page 19: Optional Upgrades And Accessories
Copyright © 2025 Alazar Technologies Inc. Optional Upgrades and Accessories AlazarTech offers the following upgrades and accessories for use with your ATS9628 digitizer: • ATS9628: One Year Extended Warranty • ATS9628: ±200mV Input Range Upgrade • AlazarTech ATS Sync 4X1G (for simultaneous sampling across multiple...
Page 20: Chapter 2: Installation And Configuration
Copyright © 2025 Alazar Technologies Inc. Chapter 2: Installation and Configuration This chapter describes how to unpack, install, and configure your ATS9628. ATS9628 User Manual...
Page 21: What You Need To Get Started
Copyright © 2025 Alazar Technologies Inc. What You Need to Get Started To set up and use your ATS9628, you will need the following: • One or more ATS9628 digitizers • ATS9628 Installation Software downloaded software from https://www.alazartech.com/en/product/ats9628/642/ ATS9628 User Manual...
Page 22: Unpacking
• Remove the digitizer from the package and inspect the digitizer for loose components or any other sign of damage. Notify AlazarTech if the digitizer appears damaged in any way. Do not install a damaged digitizer into your computer.
Page 23: Installing The Ats9628 In Windows
3 a) The ATS-SDK software development kit, which enables you to programmatically control the ATS9628 3 b) The ATS-GPU library, which enables you to perform real-time processing of data from the ATS9628 on a CUDA-compatible GPU The following paragraphs will guide you through this process in a step-by-step manner.
Page 24 4-lane ATS9628 card is compatible with any 4-lane, 8-lane or 16-lane connector on the motherboard. Make sure that your computer is powered off before you attempt to insert the ATS9628 digitizer in one of the free PCI Express slots. For best noise performance, leave as much room as possible between your ATS9628 and other hardware.
Page 25 PCI card and will attempt to install the device driver if found on the computer. If the ATS9628 device driver is not found, Windows will display the following dialog box. Click Close. 2.a) Install using Alazar Package Manager and AlazarTech’s Storage.
Page 26 Copyright © 2025 Alazar Technologies Inc. I. The Alazar Package Manager Setup screen will appear, click on Next. II. Carefully read the software license agreement and click on I Agree to proceed. ATS9628 User Manual...
Page 27 III. The next screen will be the Install Options screen. The create APM desktop icon option is checked by default. Click on Next to proceed. IV. On this screen select the destination folder in which you wish to install APM then click on Next to proceed. ATS9628 User Manual...
Page 28 Alazar Package Manager folder will be created. Click on Install to proceed. VI. Congratulations, this screen confirms that you have successfully installed Alazar Package Manager (APM). Click on Finish to exit the setup prompt. ATS9628 User Manual...
Page 29 Next. SDK license keys are provided via an eDelivery email at time of purchase. Starting November 2023, AlazarTech implemented license keys for licensed software. If your SDK is under maintenance and you do not have a license key, please follow the steps shown here https://www.alazartech.com/en/support/faq/?faq=1074...
Page 30 The following instructions will guide you through installing the software if your computer is connected to the internet. Note: you must use AlazarTech’s Storage if you are installing an SDK. If you are installing the software by using a local repository, skip to Install using Alazar Package Manager and Local Repository.
Page 31 Copyright © 2025 Alazar Technologies Inc. IX. On the Component Selection screen, expand the list of Drivers for installed hardware, then select the latest available version of AlazarDSO, ATSApi and ATS9628 driver. Click Next. ATS9628 User Manual...
Page 32 Copyright © 2025 Alazar Technologies Inc. X. An installation summary will be provided. Confirm the details of the installation and click Proceed. XI. Alazar Package Manager will install the selected software. ATS9628 User Manual...
Page 33 XII. After the installation is complete, Alazar Package Manager will report the changes applied. Congratulations! You have now installed your ATS product driver, AlazarDSO, ATSApi library, and SDKs (if purchased) and are now ready to start your acquisition. ATS9628 User Manual...
Page 34 Local Repository by clicking on the ellipsis and navigating to your local repository: This method is useful if you also wish to install AlazarDSO and/or other AlazarTech Windows drivers because Alazar Package Manager will install everything in one step. ATS9628 User Manual...
Page 35 The recommended method of installing AlazarTech ATS digitizer Windows drivers and AlazarDSO is Alazar Package Manager. It provides a user-friendly interface that uses AlazarTech’s cloud storage to allow the user to quickly install, update, or remove different versions of AlazarDSO, ATSApi and AlazarTech ATS Drivers.
Page 36 4. Repeat steps 2 and 3 if you have more than one type of SDK to install, then click Next. Starting November 2023, AlazarTech implemented license keys for licensed software. If your SDK is under maintenance and you do not have a license key, please follow the steps shown here https://www.alazartech.com/en/support/faq/?faq=1074...
Page 37 Copyright © 2025 Alazar Technologies Inc. At this point, APM will prompt you to select a repository to fetch and install your SDKs. You must use AlazarTech’s Storage for installing any SDK. Select the recommended option: AlazarTech’s Storage. Click Next.
Page 38 Copyright © 2025 Alazar Technologies Inc. III. The Component Selection screen shows the items that will be installed Note that you must install the ATS9628 drivers for any of the sample programs included with the ATS-SDK or ATS-GPU to work properly. If you...
Page 39 Congratulations! You have now installed your ATS-GPU and/or ATS-SDK software development kits. In order to receive the 1 year of maintenance included with your ATS-SDK and ATS-GPU, use the serial number provided with your digital delivery and register your product(s) at: www.alazartech.com/en/my-account/my-products/register/. ATS9628 User Manual...
Page 40: Installing The Ats9628 In A Linux System
4-lane ATS9628 card is compatible with any 4-lane, 8-lane or 16-lane connector on the motherboard. Make sure that your computer is powered off before you attempt to insert the ATS9628 digitizer in one of the free PCI Express slots. For best noise performance, leave as much room as possible between your ATS9628 and other hardware.
Page 41 Copyright © 2025 Alazar Technologies Inc. To get the latest version of all AlazarTech Linux Packages, please go to: https://www.alazartech.com/en/linux-drivers/ats9628/642/ You must select your CPU type from the drop-down menu: The website will display the available Linux resources for your selection:...
Page 42 Descriptions of each component are in the next section. If you want to programmatically control your AlazarTech digitizer, you will need the following components: • driver package for your AlazarTech digitizer •...
Page 43 Requires ats-gpu-base, ats-gpu-oct, and ats-devel (ATS-SDK). Currently only available in .deb for x86_64. Note: Beginning with driver version 7.1.2, AlazarTech Linux drivers use DKMS to not be dependent on the exact kernel version that the host machine is running. Installation Instructions AlazarTech packages can be installed using the standard tools of Linux distributions, e.g.
Page 44 To install packages for ATS9628 on your Linux system, follow these steps: 1. Once you have connected one or several ATS9628 in your computer, power it on.
Page 45: Updating Ats9628 Driver In Windows
Copyright © 2025 Alazar Technologies Inc. Updating ATS9628 Driver in Windows From time to time, AlazarTech updates the device drivers for its products. These updates may be required for product enhancements or for bug fixes. This section of the manual takes you through the steps required to update the device driver for the ATS9628 PCI Express waveform digitizer.
Page 46 By default, APM will detect the digitizer(s) in your system and install the latest versions of the software components needed to use them. In this case, the latest available version of AlazarDSO, ATSApi and ATS9628 driver will be automatically selected for installation.
Page 47 APM’s progress. It will uninstall the previous ATSApi library and driver version and install the selected (latest) version. 6. After the installation is complete, Alazar Package Manager will present the Modification Results screen to show the applied changes. Click Finish. ATS9628 User Manual...
Page 48 AlazarTech recommends that you register your ATS9628 to receive notifications of new driver releases. Take note of your serial number and go to www.alazartech.com/en/my-account/my-products/register/. You must be logged into your My AlazarTech account to register a product. If you do not have an account, sign-up for one here: www.alazartech.com/en/register/.
Page 49: Updating Ats9628 Driver In Linux
You must first select your CPU type from the drop-down menu: The website will display the available Linux resources for your selection: AlazarTech packages can be installed using the standard tools of Linux distributions, e.g. yum/dnf on RHEL/CentOS, and apt-get/apt on Debian/Ubuntu.
Page 50 AlazarTech recommends that you register your ATS9628 to receive notifications of new driver releases. Take note of your serial number and go to www.alazartech.com/en/my-account/my-products/register/. You must be logged into your My AlazarTech account to register a product. If you do not have an account, sign-up for one here: www.alazartech.com/en/register/.
Page 51: Updating Ats9628 Firmware In Windows
• Down on the product’s page, from the Software section: 1. Download the Firmware Update Utility 2. Download the Firmware file – E.g.: ATS9628 Firmware • Unarchive both files. Make sure that the Windows Driver is installed on this computer. Also make sure that all other applications using this driver or ATSAPI.dll are closed (E.g.: AlazarDSO).
Page 54 OEMs and advanced users. • Click FINISH to complete the installation. Once the firmware updater is installed, you can start it from the AlazarTech Firmware Updater start menu item, or by pressing the start button and typing Firmware Updater.
Page 55 Copyright © 2025 Alazar Technologies Inc. • When you start AlazarTech Firmware Updater, you will see the following: In Update file, click on the ellipsis to choose the corresponding firmware (.rpd file) you previously downloaded. • Select the board(s) that you wish to update. If you have only one board installed in the computer, you can leave the Boards to update section unmodified.
Page 56 Run AlazarDSO software Press F4 key. It will display the Board Properties page. One of the lines is FPGA version. Make sure the version number displayed corresponds to the version of the FPGA you downloaded (.exe file name). ATS9628 User Manual...
Page 57: Updating Ats9628 Firmware In A Linux System
Copyright © 2025 Alazar Technologies Inc. Updating ATS9628 Firmware in a Linux System Note: The following instructions have been created using CentOS. Users with other Linux distributions may have different on-screen instructions to follow, as well as a different interface.
Page 58 Copyright © 2025 Alazar Technologies Inc. From the Drivers section, click on Linux Resources and you’ll be brought to www.alazartech.com/en/linux-drivers/ats9628/642/. From here, select your CPU type from the drop-down menu: You will then see the available Linux resources for your selection: Download Firmware Update Utility (GUI) x.x.x (currently only...
Page 59 Also make sure that all other applications using this driver or the ATSApi Library are closed (E.g.: AlazarFrontPanel). • Run the executable file fwupdater-x.x.x-GUI.exe (where x.x.x is the firmware updater version number) to install AlazarTech Firmware Updater. Install • Click the blue button to begin the process.
Page 60 Copyright © 2025 Alazar Technologies Inc. • When you start AlazarTech Firmware Updater, you will see the following: • In Update file, click on the ellipsis to choose the corresponding firmware (.pof or .rpd file) you previously downloaded. • Select the board(s) that you wish to update. If you have only one board installed in the computer, you can leave the Boards to update section unmodified.
Page 62 • After the update is complete, you will see a window indicating that the update was successful. You should shut down, then turn on the computer. (Note: Simply restarting your computer will not be enough to reload the FPGA) ATS9628 User Manual...
Page 63 Next, click Help and then select About from the drop-down menu that follows. This will display an About AlazarFrontPanel pop-up. One of the lines is FPGA version. Make sure the version number displayed corresponds to the version of the FPGA you downloaded (.exe file name). ATS9628 User Manual...
Page 64: Chapter 3: Hardware Overview
Copyright © 2025 Alazar Technologies Inc. Chapter 3: Hardware Overview This chapter includes an overview of the ATS9628, explains the operation of each functional unit making up your ATS9628, and describes the signal connections. Following is a high-level block diagram of ATS9628.
Page 66: Physical Overview
Copyright © 2025 Alazar Technologies Inc. Physical Overview Figure 1 - ATS9628 Overview ATS9628 has 5 SMA connectors: • ECLK: The external clock input • CH A: The channel A input • CH B: The channel B input • TRIG IN: The external trigger input •...
Page 68: Status Leds
Copyright © 2025 Alazar Technologies Inc. Status LEDs ATS9628 has 11 Status LEDs. Descriptions are provided below in the order in which they appear, from left to right, top to bottom: Figure 3 - ATS9628 Status LEDs • HRTBT (LED13): This LED should blink constantly. It indicates that one of the base clocks is running at the required frequency.
Page 69 If the test is completed successfully, this LED is turned on, otherwise it remains off. If this LED is off, there is a hardware problem with the ATS9628. • BUSY (LED12): This LED being on indicates that the board has been armed for capture.
Page 70 Note: for Power Monitor error outputs, the Status LED remains on even after the issue is resolved. To turn off the Status LED, you must press the “Clear Int.” button in the AlazarDSO Power Monitor plug-in or restart the computer. ATS9628 User Manual...
Page 71: Signal Connections
Use the TRIG IN input for an external trigger only; data on the TRIG channel cannot be digitized. Use the ECLK input for clocking the ATS9628 in applications that require an external clock. Signal levels are specified in detail in Appendix A - Specifications.
Page 72: Analog Input
For accurate measurements, make sure the signal being measured is referenced to the same ground as your ATS9628 by attaching the cable’s ground shield to the signal ground. The External Trigger input (labeled TRIG IN) either has a fixed input range of ±3 V with 50 Ω...
Page 73 Copyright © 2025 Alazar Technologies Inc. • Auxiliary I/O connectors: The ATS9628 has one Aux I/O connector whereas the ATS9626 has two Aux I/O connectors. • ATS9628 multi-board Leader/Follower systems require the Accessory: ATS Sync 4X1G for multi-board configurations whereas ATS9626 requires a SyncBoard-9626.
Page 74: Calibration
Copyright © 2025 Alazar Technologies Inc. Calibration Calibration is the process of minimizing measurement errors by making small circuit adjustments. All ATS9628 digitizers come factory calibrated to the levels indicated in Appendix Specifications. Note that AlazarTech calibration is fully NIST- or CNRC- traceable.
Page 75: External Clock
Copyright © 2025 Alazar Technologies Inc. External Clock The ATS9628 PCI Express Digitizer allows you to bypass the on-board clock oscillator and supply your ADC clock. This feature is extremely important in many RF applications in which phase measurements must be made between the inputs themselves or between the inputs and an external event.
Page 76 10 MHz Reference Clock ATS9628 allows the user to synchronize the sampling clock to an external 10 MHz reference signal. This is useful in many RF applications. Reference clock frequency must be 10 MHz ± 0.1 MHz and should have a high slew rate.
Page 77: Oct Ignore Bad Clock
Copyright © 2025 Alazar Technologies Inc. OCT Ignore Bad Clock AlazarTech has developed OCT Ignore Bad Clock, a technology that can effectively ignore the k-clock signal for a user-specified amount of time. This is useful in OCT applications if the k-clock falls out of specification during the return.
Page 78: Optional ±200Mv Input Range Upgrade
Copyright © 2025 Alazar Technologies Inc. Optional ±200mV Input Range Upgrade ATS9628 has two DC-coupled analog input channels. Each channel has analog input bandwidth from DC to 120 MHz. The full-scale input range is fixed at ±1.25 V. For applications that require capture of small signals, customers can purchase the ATS9628: ±200mV Input Range Upgrade (order number ATS9628-014) that...
Page 79: Accessory: Ats Sync 4X1G For Multi-Board Configurations
Copyright © 2025 Alazar Technologies Inc. Accessory: ATS Sync 4X1G for multi-board configurations The AlazarTech ATS® Sync 4X1G is a device that allows simultaneous sampling across up to 4 independent AlazarTech waveform digitizers. This is achieved by providing common clock and trigger signals to each digitizer.
Page 80 Copyright © 2025 Alazar Technologies Inc. Figure 7 – ATS Sync 4X1G Connection Diagram Up to 4 ATS9628 digitizers can be connected to provide an acquisition system with up to 8 channels. Use with digitizers operating at different sample rates It is also possible to use ATS Sync 4X1G with AlazarTech waveform digitizers operating at different sampling rates.
Page 81: Optional Extended Warranty
Copyright © 2025 Alazar Technologies Inc. Optional Extended Warranty The ATS9628, like all AlazarTech digitizers, includes a standard one (1) year parts and labor warranty. However, customers might want to extend this warranty to further protect their product(s). If a waveform digitizer is out of warranty, the user will not be eligible for free...
Page 82: Chapter 4: Specific Features
Copyright © 2025 Alazar Technologies Inc. Chapter 4: Specific Features This section contains information about features specific to AlazarTech digitizers and ATS9628 in particular. ATS9628 User Manual...
Page 83: Streaming Data Across The Bus
Copyright © 2025 Alazar Technologies Inc. Streaming Data Across the Bus One of the most unique features of the ATS9628 is its on-board, dual-port acquisition memory, with custom Direct Memory Access (DMA), that can be used for signal storage. Data is acquired into the on-board memory before being transferred to the host PCT memory.
Page 84 This requires a software handshake which is heavily dependent on the operating system response time. ATS9628 solves this problem by providing on-board memory that can act as a very deep FIFO and an advanced custom DMA engine that can stream data to PC host memory at up to 1.6 GB/s (exact rate is motherboard dependent).
Page 85 Software still has to get involved in re-arming the hardware after every capture and again for reading the data from on-board acquisition memory. ATS9628’s proprietary AutoDMA circuitry allows the acquisition system to be re- armed by a hardware command and data transfer to be initiated by the hardware itself, thus removing virtually all “in-process”...
Page 86 ATS9628 features a high-performance memory management firmware that allows much faster data throughput in Traditional mode than previous generation digitizers. Traditional AutoDMA is the fastest way to move data into user buffers. It is the recommended method for new designs such as the ATS9628. ATS9628 User Manual...
Page 87 NPT AutoDMA can easily acquire data to PC host memory at the maximum sustained transfer rate of the motherboard without causing an overflow. This is the recommended mode of operation for most ultrasonic scanning, OCT and medical imaging applications. ATS9628 User Manual...
Page 88 Continuous AutoDMA is also known as the data streaming mode. In this mode, data starts streaming across the PCI bus as soon as the ATS9628 is armed for acquisition. It is important to note that triggering is disabled in this mode.
Page 89 Triggered Streaming AutoDMA can easily acquire data to PC host memory at the maximum sustained transfer rate of the motherboard without causing an overflow. This is the recommended mode for RF signal recording that has to be started at a specific time, e.g. based on a GPS pulse. ATS9628 User Manual...
Page 90: Output Data Format
Copyright © 2025 Alazar Technologies Inc. Output Data Format By default, ATS9628 data comes out as unsigned binary, where code 0 represents the negative full scale, code (2 -1) represents the positive full scale with zero being 2 It is possible to change the data format to signed binary using an API call. In...
Page 91: Stream To Memory
RAM of the computer. This module is accessed by clicking on Tools >> Stream To Memory… ATS9628 User Manual...
Page 92: Triggering
External Trigger input. While most oscilloscopes offer only one trigger engine, ATS9628 offers two trigger engines (called Engines J and K). The user can specify the number of records to capture in an acquisition, the length of each record and the amount of pre-trigger data.
Page 93: Appendix A - Specifications
Copyright © 2025 Alazar Technologies Inc. Appendix A - Specifications This appendix lists the specifications of the ATS9628. These specifications are typical at 25 °C unless otherwise stated. The operating temperature range is 0 to 55 °C (ambient). Minimum Requirements...
Page 94 250 MS/s single shot Min. sample rate 1 MS/s single shot for internal clocking Full scale input range ±1.25 V standard. Can be permanently changed to ±200mV with ATS9628-014 upgrade. Input coupling DC only Input impedance 50 Ω ±1% Absolute maximum input ±2 V (DC + peak AC for CH A, CH B, and TRIG IN only without...
Page 95 ±2 ppm Dynamic Parameters Typical values measured on the 400 mV range of CH A of a randomly selected ATS9628. Input signal was provided by a Rohde & Schwarz SMB100A signal generator, followed by a 9-pole, 10 MHz band-pass filter (TTE Q36T-50M-5M-50-720BMF). Input frequency was set at 49.9 MHz at -0.5 dBFS, which was approximately 95% of the full scale input.
Page 96 Software-selectable from 0 to 9,999,999 sampling clock cycles. Must meet alignment requirements (see ATS-SDK Guide for more information) Trigger timeout Software-selectable with a 10 μs resolution. Maximum settable value is 3,600 seconds. Can also be disabled to wait indefinitely for a trigger event. ATS9628 User Manual...
Page 97 (single channel mode) Input: Amplitude 3.3 Volt TTL (5 Volt compliant) Input coupling: Certification and Compliances RoHS 3 (Directive 2015/863/EU) Compliance REACH Compliance CE Marking — EC Conformity FCC Part 15 Class A / ICES-003 Class A Compliance ATS9628 User Manual...
Page 98 Supported Linux Distributions AlazarTech offers ATS9628 DKMS drivers for the following Linux distributions: RHEL, Debian, and Ubuntu. AlazarTech DKMS drivers may work for other Linux distributions but they have not been tested and technical support may be limited. Users can download the DKMS driver for their specific distribution by choosing from the available drivers here: https://www.alazartech.com/en/linux-drivers/ats9628/642/...
Page 99: Appendix B - Benchmarks
Given the constantly changing nature of computers, these benchmarks are provided as a reference only and AlazarTech assumes no liability in case the computer you purchase behaves differently than what was observed in AlazarTech’s laboratory.
Page 100 ALAZAR TECHNOLOGIES INC. 6600 Trans-Canada Highway Suite 310 Pointe-Claire, QC CANADA H9R 4S2 Tel: (514) 426-4899 Fax: (514) 426-2723 E-mail: sales@alazartech.com Web: www.alazartech.com...
