Sonova EasyLine Charger S Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Charger S
user guide
Charger RIC S
ChargerGo RIC S
A Sonova brand

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyLine Charger S Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sonova EasyLine Charger S Series

Summary of Contents for Sonova EasyLine Charger S Series

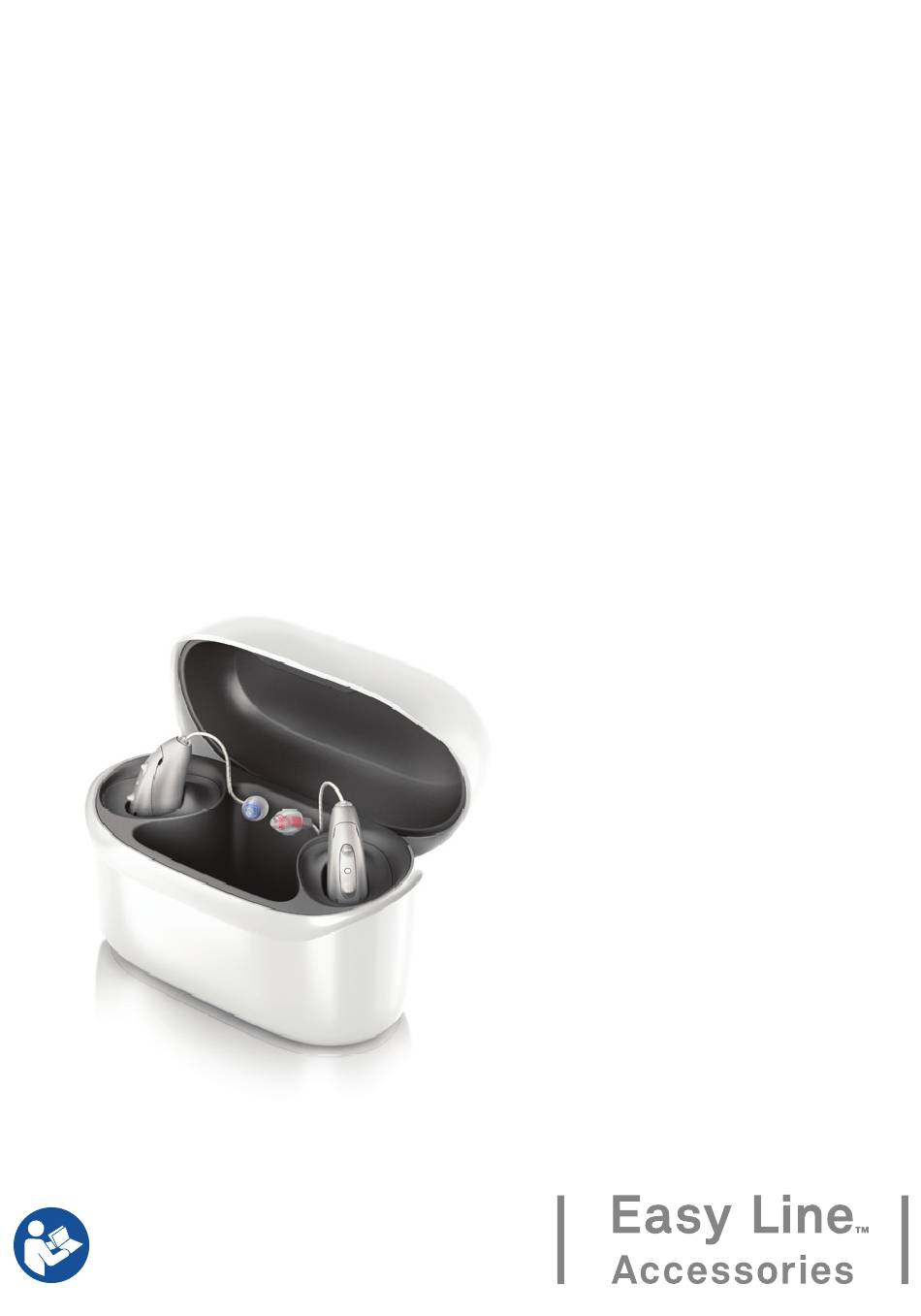

  • Page 1 Charger S user guide Charger RIC S ChargerGo RIC S A Sonova brand...
  • Page 2 This user guide applies to the following models: Your charger details If no box is checked and you do not know the model of your charging accessory, please ask Charging accessories your hearing care professional. Please also read safety information regarding Rechargeable model: handling rechargeable hearing aids (chapter 10).

  • Page 3: Table Of Contents

    Thank you for choosing this device. Table of contents Please read the User guide carefully to make sure that 1. Parts of the charger ..........6 you understand and get the best out of your device. 2. Preparing the charger ..........9 Training is not required for handling of this device.

  • Page 4: Parts Of The Charger

    Easy Line Charger RIC S/ ChargerGo RIC S 1. Parts of the charger Charger case lid Hearing aid charging slots - with left and right indicators Cavity for earpieces Indicator light - for internal battery status* USB-C connection - to external power supply * Only applicable for rechargeable models.

  • Page 5: Preparing The Charger

    External power supply 2. Preparing the charger Connecting to the power supply Power supply with USB-C cable wall plug adapter Power adapter and charger specification 5 VDC +/-5%, current Power adapter output voltage: 500 mA - 1 A a) Plug the larger end of the charging cable into the 100-240 VAC, 50/60Hz, power adapter.

  • Page 6: Charging

    3. Charging Rechargeable models have an internal battery, 3.1 Using and charging the charger which means they can’t be switched off. Even when unplugged from a power outlet, it will continue If the built-in battery is fully charged, the hearing charging the hearing aids until its internal battery aids can be charged up to 3 times*.
  • Page 7 Rechargeable charger connected to a Rechargeable charger not connected to a power power supply supply Indicator Battery Indicator light turns off after a short time to save battery light of the Description and actions status charger Indicator Battery light of the Description and actions The internal battery of the status...
  • Page 8 3.2 Charging the hearing aids Please refer to chapter 2 for how to set up the charger. Low power: You will hear two beeps when the 1. Insert the hearing aids into the charging slots. The hearing aids battery is low. You will have hearing aids will automatically switch off when approximately 60 minutes before you have to inserted into the charger.
  • Page 9 2. The indicator light on the hearing aids will show Charging times (representative values)* the charging state of their battery until the hearing aids are fully charged. When fully charged, Indicator light the green indicator light on the hearing aids will of the hearing Charging state Approx.
  • Page 10 3. Remove the hearing aids from the charging slots The charging process will automatically stop by lifting them out of the charger. when the batteries are fully charged, so the hearing aids can be safely left in the charger Do not hold the tubes to remove the hearing aids Always close the lid when charging your hearing from the charger as this can damage the tubes.

  • Page 11: Environmental Conditions

    Prolonged storage at temperature lower than +10 °C 4. Environmental conditions and higher than +30 °C may negatively affect the battery performance of the product. Please ensure to use, charge, transport and store the For information on the operating condition of your charging accessories according to the following hearing aids, please refer to the user guide of your conditions:...

  • Page 12: Care And Maintenance

    Sonova AG will provide a minimum of a five years Always make sure that the hearing aids and repair service period after the respective charger charger are dry and clean before charging.

  • Page 13: Service And Warranty

    This warranty does not include any services local warranty. performed by a hearing care professional in their office. International warranty Sonova AG offers a one year limited international Charger: warranty, valid from the date of purchase. This Serial number: limited warranty covers manufacturing and material Date of purchase: defects in the charger.

  • Page 14: Compliance Information

    Notice 2: the charger and the human body during operation. Changes or modifications made to this device not expressly approved by Sonova AG may void the FCC authorization to operate this device. Notice 3: This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and ICES-003 of Industry Canada.

  • Page 15: Electromagnetic Emissions

    Electromagnetic emissions Electromagnetic immunity Manufacturer’s Declaration: The device is intended for use in the electromagnetic environments listed below. IEC60601-1-2 Immunity Test Compliance Level The user should assure that they are used in such Test Level environments. +/- 8 kV contact +/- 8 kV contact Electrostatic +/- 2 kV , +/- 4 kV,...
  • Page 16 IEC60601-1-2 IEC60601-1-2 Immunity Test Compliance Level Immunity Test Compliance Level Test Level Test Level 9 V/m; 710, 745, 780 9 V/m; 710, 745, 780 Rated power MHz; Pulse modulation MHz; Pulse modulation frequency 30 A/m 30 A/m 18 Hz 18 Hz magnetic fields 50 Hz or 60 Hz 50 Hz or 60 Hz...

  • Page 17: Information And Explanation Of Symbols

    This symbol indicates that it is important for the user to pay attention to the relevant warning notices in symbols this user guide. With the CE symbol, Sonova AG confi rms that Important information for handling and product this product – including accessories – meets the safety.
  • Page 18 An indication that electronic instructions for use are During transportation keep dry. available. IP Rating = Ingress Protection Rating. IP21 rating indicates that the device is protected against solid The symbol with the crossed-out garbage bin is to make you aware that this device may not be thrown foreign objects of 12.5 mm diameter and greater away as normal household waste.

  • Page 19: Troubleshooting

    9. Troubleshooting 10. Important safety information Cause Possible remedy Please read the relevant safety information and Issue: Charging of the hearing aid does not start. limitations-of-use information on the following pages before using your device. Internal battery of the Connect the charger to the charger discharged*.

  • Page 20: Side Effects

    To report an unexpected operation or event, please Intended medical contraindications contact the manufacturer or a representative. Contraindications are not derived from the charging accessories, but from the compatible hearing aids. Clinical benefit: The charger itself does not provide a direct clinical benefit.
  • Page 21 10.1 Warnings Do not use the device in explosive areas Charger and power supply must be protected (mines or industrial areas with danger of from shocks. If the charger or power supply is explosions, oxygen-rich environments or damaged after a shock, the devices must not be areas where flammable anesthetics are used anymore.
  • Page 22 Ship the rechargeable devices according to local Do not place the charging accessories close to regulations as the devices contain lithium-ion an induction cooking surface. Conductive batteries. For shipping, they are classified as structures inside the charging accessories dangerous goods. If in doubt ask the courier could absorb inductive energy resulting in responsible for shipping how to ship the devices thermal destruction.
  • Page 23 Do not ignore signs of battery damage. Using The following is only applicable for persons with the charger with a damaged battery can affect active implantable medical devices the charger performance and permanently (i.e pacemakers, defibrillators, etc.): damage the charger. • Keep the charging device at least 15 cm Avoid handling the charger with bare hands if it (6 inches) away from the active implant.
  • Page 24 Changes or modification to the device that were to skin burns. not explicitely approved by Sonova AG are not permitted. Such changes may damage the 10.3 Notes device.

  • Page 25: Your Feedback

    Your feedback The built-in battery of the rechargeable charger Record your specific needs or concerns and bring to must be recharged every 3 months. This will your first office visit after getting your devices. prevent a deep discharge of the built-in battery. This will help your hearing care professional to Deep discharged batteries may be damaged if address your needs.
  • Page 26 UK Responsible person and UK importer: Sonova UK Limited Sonova House Lakeside Drive, Centre Park WA1 1RX Warrington United Kingdom Australian Sponsor : Sonova Australia Pty Ltd. 12 Inglewood Place, Norwest NSW 2153 Australia And importer for European Union : Sonova Deutschland GmbH Max-Eyth-Str. 20 70736 Fellbach-Oeffingen, Germany Pat.
  • Page 27 Distributor Manufacturer: Sonova AG Laubisrütistrasse 28 CH-8712 Stäfa Switzerland 7 6 1 3 3 8 9 7 9 7 9 3 0...
