Go to www.vtechphones.com
Go to www.vtechphones.com
to register your product for enhanced
to register your product for enhanced
warranty support and the latest VTech
warranty support and the latest VTech
product news.
product news.
Caller ID
Caller ID
Announce
Announce
Abridged user's manual
Abridged user's manual

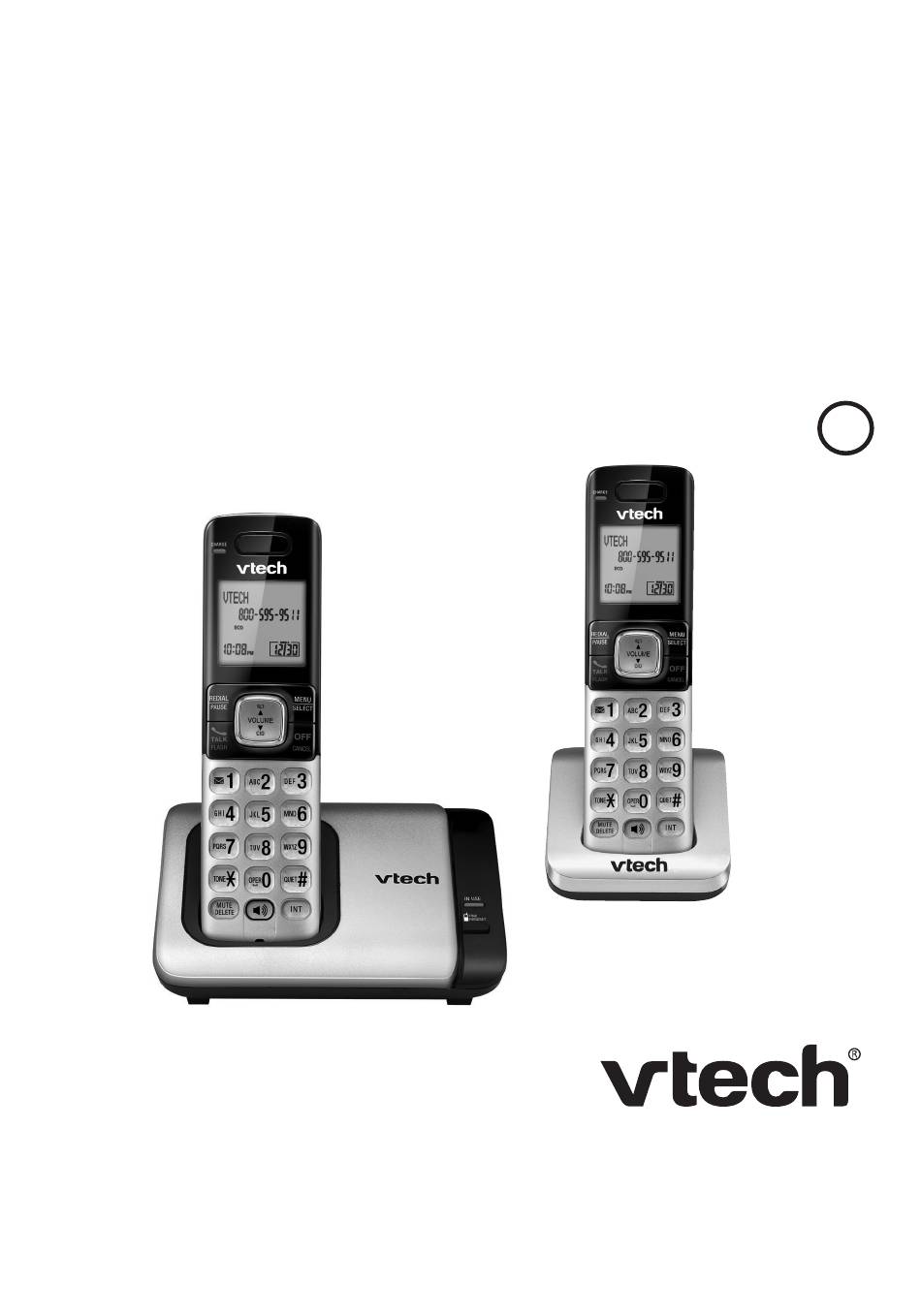

DECT 6.0 cordless telephone
DECT 6.0 cordless telephone
CS6719
CS6719
CS6719-15
CS6719-15
CS6719-16
CS6719-16
CS6719-17
CS6719-17
CS6719-2
CS6719-2
CS6719-26
CS6719-26
CS6719-27
CS6719-27
BC
BC
Advertisement
Table of Contents
Related Manuals for VTech CS6719
Summary of Contents for VTech CS6719
- Page 1 CS6719 Go to www.vtechphones.com Go to www.vtechphones.com to register your product for enhanced to register your product for enhanced CS6719-15 CS6719-15 warranty support and the latest VTech warranty support and the latest VTech CS6719-16 CS6719-16 product news. product news. CS6719-17...
-
Page 2: What's In The Box
Save your sales receipt and original packaging in the event warranty service is necessary. 1 set for CS6719/ CS6719-15/ CS6719-16/ CS6719-17; 2 sets for CS6719-2 CS6719-26 CS6719-27 1 set for CS6719-2/ CS6719-26 CS6719-27 Abridged user’s Important Safety manual Instructions... -
Page 3: Handset Overview
Handset overview 1 – Handset earpiece 2 – LCD display 3 – MENU/SELECT • Show the menu. • While in a menu, press to select an item, or save an entry or setting. 4 – OFF/CANCEL • Hang up a call. •... - Page 4 7 – Microphone 8 – • Make or answer a call using the handset speakerphone. • During a call, press to switch between the speakerphone and the handset. 9 – MUTE/DELETE • Mute the microphone during a call. • Delete digits or characters while using the dialing keys.
-
Page 5: Telephone Base Overview
Telephone base overview 1 – IN USE light • Flashes when there is an incoming call, or another telephone sharing the same line is in use. • On when the handset is in use. 2 – /FIND HANDSET • Press to page all system handsets. 3 –... -
Page 6: Display Icons Overview
Display icons overview The battery icon flashes when the battery is low and needs charging. The battery icon animates when the battery is charging. The battery icon becomes solid when the battery is fully charged. The handset ringer is off. There are new voicemail received from your telephone service provider. - Page 7 Connect You can choose to connect the telephone base for desktop usage or wall mounting. NOTE • Use only the power adapters supplied with this product. • If you subscribe to digital subscriber line (DSL) high-speed Internet service through your telephone line, make sure you install a DSL filter (not included) between the telephone line cord and telephone wall jack.
- Page 8 Mount the telephone base The telephone comes ready for tabletop use. If you have already installed the telephone for tabletop use, unplug the telephone line cord from the telephone wall jack, and unplug the telephone base power adapter from the wall outlet before mounting your telephone on a wall.
-
Page 9: Install And Charge The Battery
Connect the power adapter to the telephone base and an electrical outlet not controlled by a wall switch. Install and charge the battery Install the battery Install the battery as shown below. NOTES • Use only supplied battery. • If the handset will not be used for a long time, disconnect and remove the battery to prevent possible leakage. - Page 10 THIS SIDE UP Charge the battery Place the handset in the telephone base or the charger to charge. Once you have installed the battery, the handset LCD display indicates the battery status (see the table below). NOTES • For best performance, keep the handset in the telephone base or charger when not in use.
-
Page 11: Before Use
Before use After you install your telephone or power returns following a power outage, the handset or telephone will prompt you to set the date and time. Set date and time 1. Use the dialing keys (0-9) to enter the month (MM), date (DD) and year (YY). -
Page 12: Using The Handset Menu
Using the handset menu Press MENU when the phone is not in use. Press until the screen displays the desired feature menu. Press SELECT to enter that menu. • To return to the previous menu, press CANCEL. • To return to idle mode, press and hold CANCEL. Configure your telephone Set language The LCD language is preset to English. -
Page 13: Telephone Operation
Telephone operation Handset control key panel:... - Page 14 Make a call • Press , and then dial the telephone number. Answer a call • Press , or any dialing key. End a call Press OFF on the handset, or put the handset to • the base or charger. Speakerphone •...
- Page 15 -OR- • Place the handset in the telephone base or charger. NOTE • Do not press and hold /FIND HANDSET for more than four seconds. It may lead to handset deregistration. Join a call in progress You can use up to two system handsets at a time on a home line call.
-
Page 16: Redial List
From this intercom call, you have the following options: • You can let the destination handset join you on the outside call in a three-way conversation. Press and hold INT on the originating handset. • You can transfer the call. Press OFF, or place your handset back in the telephone base or charger. - Page 17 Directory The phonebook can store up to 50 entries, which are shared by all handsets. Each entry may consist of a telephone number up to 30 digits, and a name up to 15 characters. Add a directory entry Press MENU when the phone is not in use. Scroll to Directory then press SELECT.
-
Page 18: Speed Dial
Delete a directory entry: When the desired entry displays, press DELETE. When the screen displays Delete contact?, press SELECT. Speed dial You can copy up to 9 directory entries into the speed dial locations (0 and 2-9) so that you can dial these numbers using fewer keys than usual. - Page 19 -OR- Use the alphabetical search to find the desired entry. 8. Press SELECT to save. You hear a confirmation. The name (up to 12 characters) appears in the selected speed dial location. Dial a speed dial number • Press and hold a dialing key (0 or 2-9) to dial the number stored in the corresponding speed dial location.
-
Page 20: Sound Settings
Press 1 repeatedly if you need to add or • remove 1 in front of the phone number. Press to dial the displayed number. Dial a caller ID log entry • When the desired entry appears, press to dial. Save a caller ID log entry to the directory When the desired caller ID log entry displays, press SELECT. - Page 21 Ringer volume You can adjust the ringer volume level, or turn the ringer off. Press MENU when the handset is not in use. Scroll to Ringers, and then press SELECT. Press SELECT to choose Ringer volume. Scroll to adjust the volume, and then press SELECT to save.
-
Page 22: Expand Your Telephone System
Expand your telephone system You can add new handsets (CS6709, purchased separately) to your telephone system. Your telephone base supports a maximum of five handsets. For more details, refer to the user’s manual that comes with your CS6709 new handset. ECO mode This power conserving technology reduces power consumption for optimal battery performance. -
Page 23: Frequently Asked Questions
Frequently asked questions Below are the questions most frequently asked about the cordless telephone. If you cannot find the answer to your question, visit our website at www.vtechphones.com or call 1 (800) 595-9511 for customer service. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377. -
Page 24: Technical Specifications
Technical specifications Frequency Crystal controlled PLL synthesizer control Transmit Handset: 1921.536-1928.448 MHz frequency Telephone base: 1921.536-1928.448 MHz Channels Nominal Maximum power allowed by FCC and effective IC. Actual operating range may vary range according to environment conditions at the time of use. Power Handset: 2.4V Ni-MH battery requirements...
