Vivint Smart Hub Pro
(VS-SHP000-001)
Quick Reference (Overview, Specs, Installation, Regulatory)
The Vivint Smart Hub Pro® is a desktop-mount control hub device with a built-in touchscreen display that
serves as the central component of the Vivint Smart Home™ system — a fully supervised, integrated, and
intelligent home security and smart home automation ecosystem.
The system — comprised of the hub and various security sensors, detectors, and smart home devices —
incorporates the most advanced technologies and functionality available today. The touchscreen interface
allows control of all system functions, including arming and disarming, viewing and clearing alerts, and
configuring and controlling peripheral devices such as sensors, locks, and cameras. Additionally, the display
shows time & weather, and real-time status of the network, power, sound, and system security. Speaker and
microphones provide two-way talk with Vivint Monitoring, as well as audible doorbell rings, system count
down, sensor status sounds, and alarm siren (piezo) functionality. The LED light indicates security system
status. Emergency features are also available through the Emergency icon on the touchscreen's status bar.
The Smart Hub Pro works with the Vivint app that can be downloaded to the user's mobile device and used
for access and control of all system functions. The app interface is similar to the hub's touchscreen display,
providing intuitive navigation and making device configuration and operation quick and easy.
This document includes a product description, illustrations, basic operation / functionality, and installation
instructions; as well as technical specifications, standards listings, and regulatory compliance references.
Operation Overview / User Functionality
Once the Smart Hub Pro is up and running, the user can perform the following
functions, among others, at either the hub or via the mobile app, or using an
additional remote touchscreen display (optional). The hub monitors and manages
all aspects of the integrated smart home system, including security sensors
(door/window, motion, etc.), detectors (smoke, CO, etc.), and automation devices
(cameras, door locks, etc.).
For details about specific features, refer to the online Help at the Vivint Support
site: support.vivint.com.
MAIN FEATURES — WHAT YOU CAN DO WITH THE SYSTEM
• Arm and disarm the security system (Stay & Away)
• Activate alarms with the Panic button (Emergency and Fire)
• Communicate with Vivint Monitoring using two-way talk
Acknowledge and clear alert notifications
•
• Add, configure, and control smart home devices and users
• And more (see the online Help)
Technical / Hardware Specifications
Vivint Part Number (P/N) VS-SHP000-001
Model Number (M/N) CP07
System Parameters 100 wireless zones; 50 users; 20 key fobs; 30 keypads;
2000 Z-Wave devices (thermostats, door locks, keypad, etc.)
System Communication 345 MHz receiver (primary sensor radio); Z-Wave radio;
(radios, receivers)
DECT ULE radio (hub-to-screen communication);
Bluetooth (BLE used for initial setup, and connection to home Wi-Fi);
Dual-Band Wi-Fi: 802.11 a/b/g/n/ac;
10/100 Ethernet port, RJ-45 jack w status lights; LTE cellular module
Display 7" LCD capacitive multi-touch touchscreen;
1024 x 600 (WVGA) resolution; 24-bit color;
Typical Luminance: 350cd/m²
Audio Speaker: Max 85dB SPL at 10 feet (3 meters)
Dual microphones
LEDs / LEDs: provide visual feedback of keys pressed, security status, errors
Visual Status Indicators with the hub and system, and lighting for interaction in the dark.
Light bar: 4 RGB LEDs, segmented with separate color & brightness.
Backlit icons: 4 backlit icons to show system status.
Power (AC) AC adapter (12 V adapter with detachable DC cord)
- Input: 100-240 VAC 50/60 Hz (max 1.0 A)
- Output: 12 VDC 2.0 A
Power (Backup Battery)
Battery: 3.6 V Lithium-ion, 6200 mAh typical, 6000 mAh minimum
(providing a minimum of 24 hours of internal backup battery power
when operating in low power mode)
Environmental The hub will operate at humidity levels of 0 – 90% non-condensing
(Operating Humidity and and temperatures between 0°C to 49°C (32°F to 120°F). For optimal
Temperature Ranges)
battery operation, the recommendation is 0°C to 35°C (32°F to 95°F).

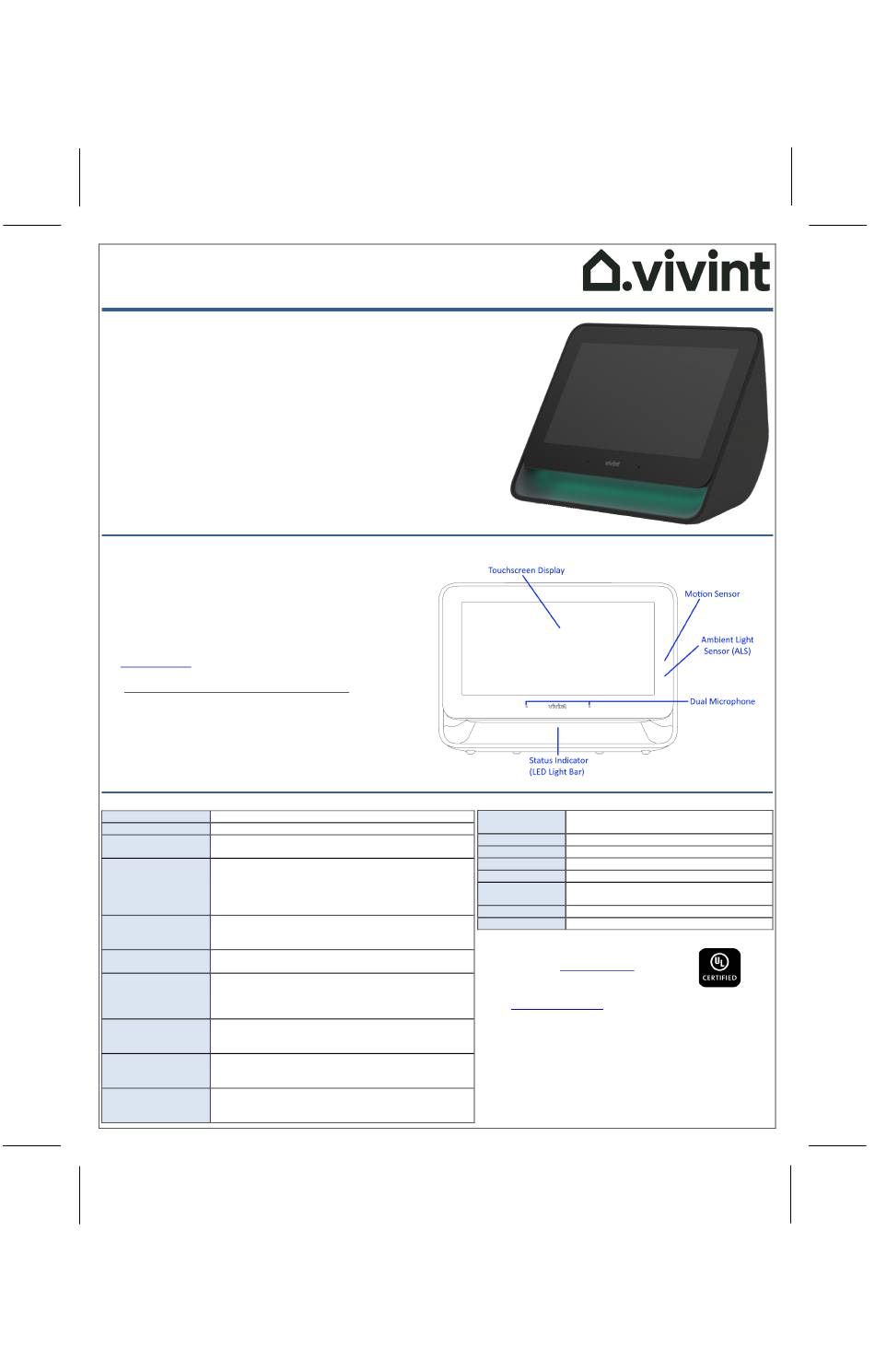

Smart Hub Pro (front view) —
Standards Certifications and Listings
FCC
47CFR Part 2.1091; 47CFR Part 15, Subpart B, Class B;
Subpart C; Subpart D; and Subpart E
Safety Certification ULus Listed
CSFM Listing 7167-2147:0X00
UL 985 Standard for Household Fire Warning System Units
UL 1023 Standard for Household Burglar-Alarm System Units
ANSI/SIA CP-01-2019 Security System Standard – Features for False Alarm
Reduction
FCC ID (Hub): 2AAAS-CP07
- Contains FCC ID: XMR201909EG91NAX
*For complete regulatory compliance
information, go to: vivint.com/legal/fcc.
*For patents information,
go to: vivint.com/legal/patents.
4931 N 300 W Provo, UT 84604
