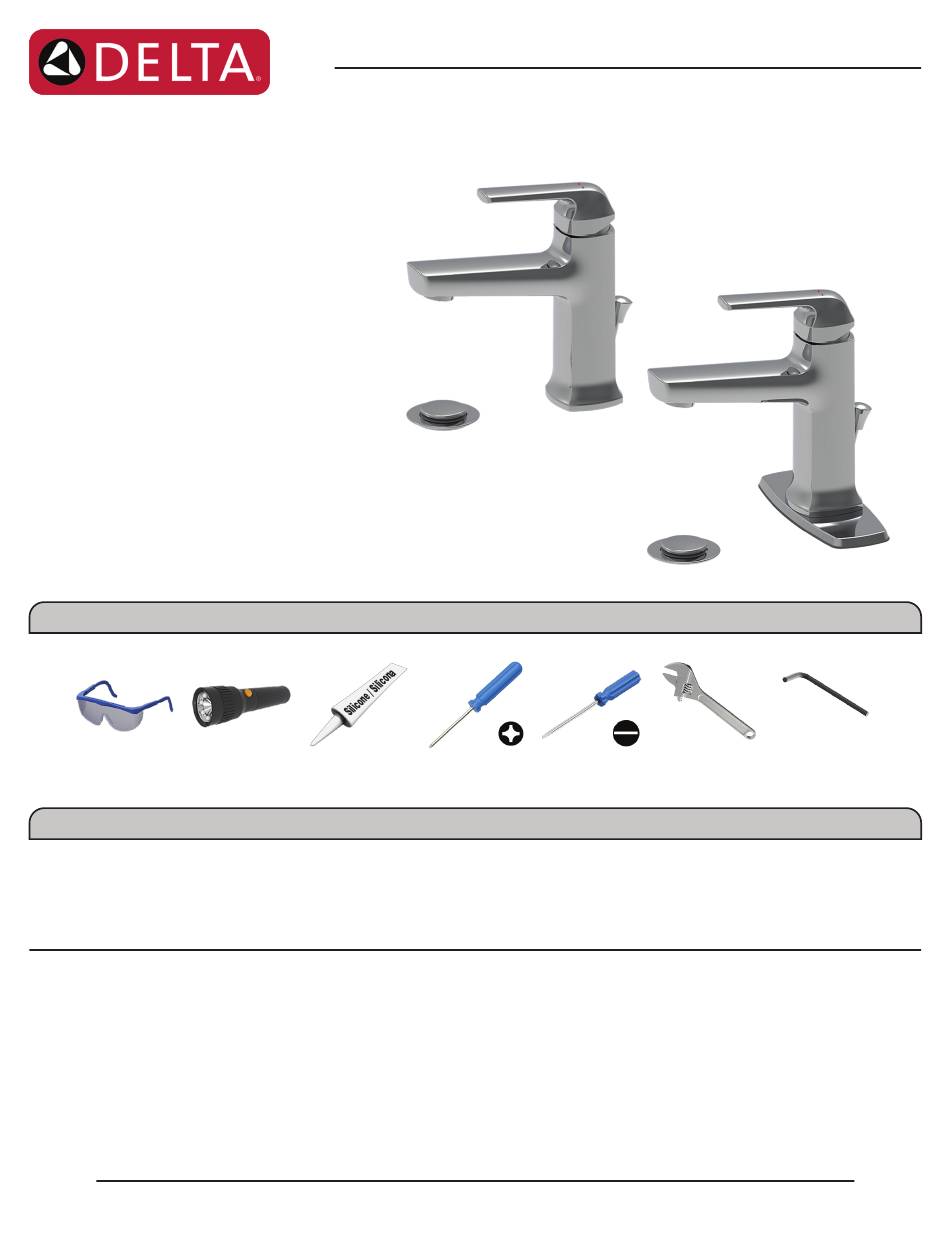

Model / Modèle
15405LF
Uxbridge
Series / Série
TM
Specify Finish / Précisez la Finition
You may need / Articles dont vous pouvez avoir besoin
FOR EASY INSTALLATION OF YOUR DELTA
●
READ ALL the instructions completely before beginning.
●
READ ALL warnings, care and maintenance information.
●
Purchase the correct water supply hook-up.
POUR INSTALLER VOTRE ROBINET DELTA
●
LIRE TOUTES les instructions avant de débuter;
●
LIRE TOUS les avertissements ainsi que toutes les instructions de nettoyage et d'entretien;
●
Acheter le bon nécessaire de raccordement.
PLEASE LEAVE the Maintenance & Installation (M&I) manual with owner for maintenance and troubleshooting information.
VEUILLEZ LAISSER le Guide d'entretien et d'installation au propriétaire pour les informations d'entretien et de dépannage.
SINGLE HANDLE LAVATORY FAUCET
ROBINET DE LAVABO À POIGNÉE UNIQUE
Installation Notes / Notes sur l'installation
FAUCET YOU WILL NEED:
®
FACILEMENT, VOUS DEVEZ:
MD
215290, Rev. A
1.25" (32mm)
6mm
Advertisement
Related Manuals for Delta Uxbridge 15405LF Series
Summary of Contents for Delta Uxbridge 15405LF Series
- Page 1 Specify Finish / Précisez la Finition You may need / Articles dont vous pouvez avoir besoin 1.25” (32mm) Installation Notes / Notes sur l’installation FOR EASY INSTALLATION OF YOUR DELTA FAUCET YOU WILL NEED: ® ● READ ALL the instructions completely before beginning.
- Page 2 Product Dimension / Dimensions du produit Min. 3.25” 2.5” (83 mm) (64 mm) 8.5” (216 mm) 7.25” (184 mm) 1.7” (43 mm) 4.2” 4.7” (107 mm) 3.25” (119 mm) (83 mm) 6.0” (152 mm) 2.0” (52.0 mm) Max. Deck Thickness Max.
- Page 3 Page - 3 - 9 215290, Rev. A...
-
Page 4: Installation
Installation / Installation STEP 1 - SINGLE HOLE FAUCET INSTALL Figure 1 (see Figure 1) Shut “OFF” the water supply. T3 Remove old faucet. ZZ Install faucet body (A) into sink/countertop (ZZ). If sink/countertop (ZZ) is uneven, use silicone (T3) under the faucet body (A). - Page 5 STEP 3 - WASTE FITTING INSTALLATION Figure 4 (see Figure 3) T3 Flange Seal: (see Detail 1) a. Apply silicone (T3) to underside of flange (K). ZZ Insert flange (K) into sink (ZZ) drain hole. ZZ Drain Install: (see Detail 2) a.
- Page 6 STEP 4 - WATER LINE CONNECTIONS Figure 4 (see Figure 4) DO NOT kink the water lines and that they can be looped if too long. Ensure all fittings and end connections are free of debris. Faucet supply lines (H and I) have 3/8” compression fittings, with hot water hose labeled with a red tag.
-
Page 7: Maintenance / Entretien
Maintenance / Entretien SHUT OFF WATER SUPPLIES. Figure 6 IF FAUCET LEAKS FROM UNDER HANDLE: (see Figure 6) Remove the set screw cap (Z) and loosen the set screw (Y) at the back of the handle using a 6mm hex key (T4) and remove handle (X). T4... - Page 8 What You Must Do To Obtain Warranty Service or Replacement Parts A warranty claim may be made and replacement parts may be obtained by calling 1 800 345 DELTA (3358) or by contacting us by mail or online as follows (please include your model number and date of purchase):...
- Page 9 New Jersey : Les dispositions de la présente garantie, y compris ses limites, Delta Faucet Company peut choisir de rembourser le prix d’achat en échange du sont censées s’appliquer à toute la mesure permise par les lois de l’état du New retour du produit.
